MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

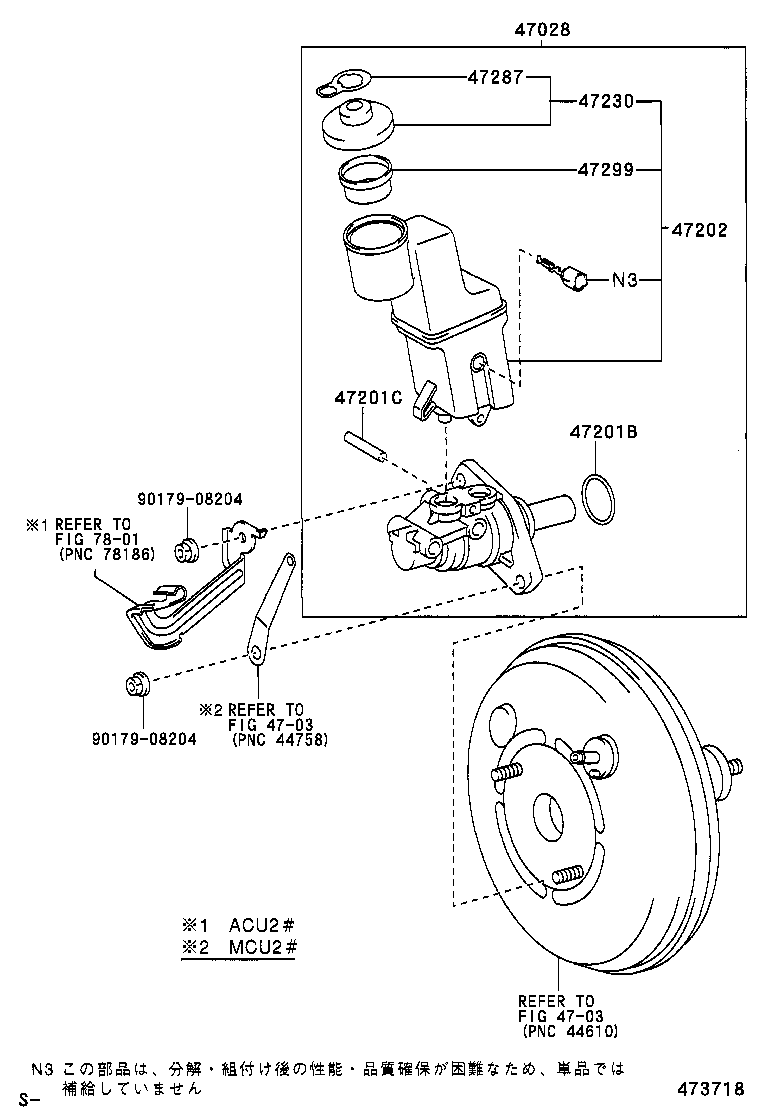

Click highlighted areas on diagram

diagram 47028 4703 4703 47201B 47201C 47202 47230 47287 47299 7801 9017908204 9017908204
Part # Description Qty Price
47028 - CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE
47028-48031

ACU2#,MCU2#

 1
47028-48030

ACU2#,MCU2#

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

ACU2#,MCU2#

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803

ACU2#,MCU2#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-48091

ACU2#,MCU2#

 1
47220-48101

MCU2#

ｱﾘ(VSC)

 1
47220-48150

ACU2#,MCU2#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

ACU2#,MCU2#

 1
47230-48090

ACU2#,MCU2#

 1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

ACU2#,MCU2#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-52010

ACU2#,MCU2#

 1
47299-25010

ACU2#,MCU2#

 1
Common parts
90179-08204
Linked diagrams
4703
7801
