MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

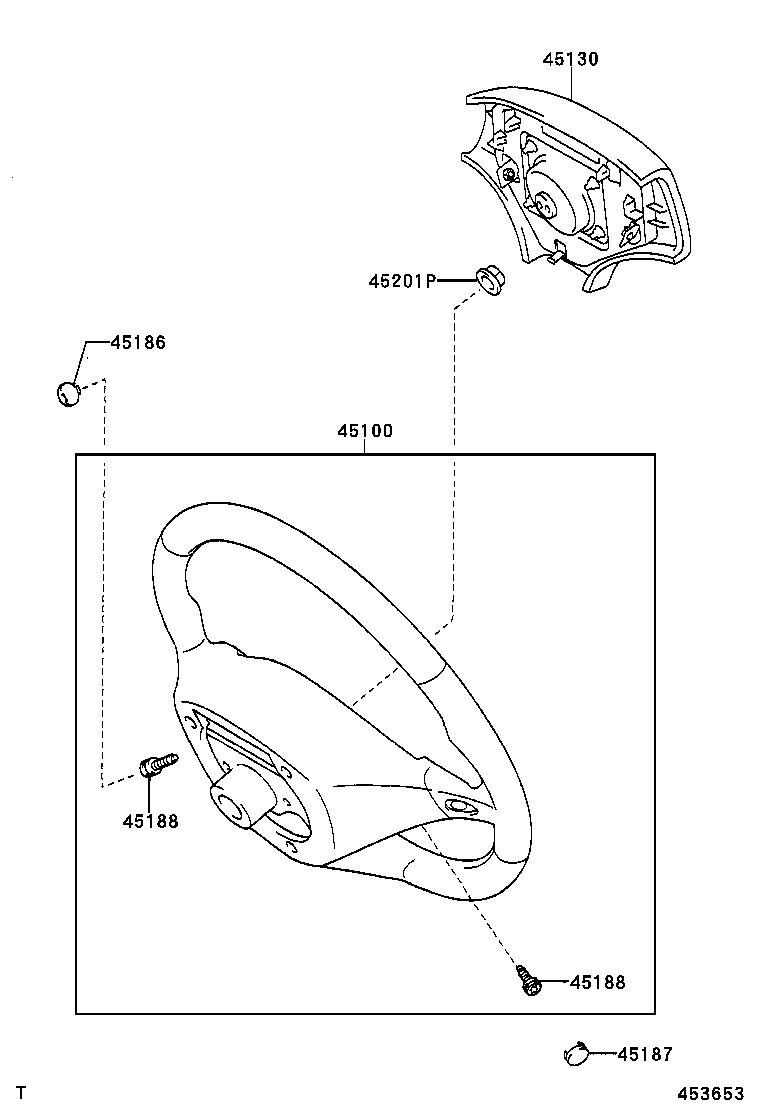

Click highlighted areas on diagram

diagram 45100 45130 45186 45187 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-48150B0

MCU2#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SADDLE GRAY,TRIM14

 1
45100-48170C0

MCU2#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ ｽｲﾂﾁ),BLACK,TRIM15

 1
45100-48350B0

MCU2#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ ｽｲﾂﾁ),SADDLE GRAY,TRIM1#

 1
45100-48160B0

MCU2#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),SADDLE GRAY,TRIM14

 1
45100-48150C0

MCU2#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM15

 1
45100-48350C0

MCU2#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ ｽｲﾂﾁ),BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-22510B0

ACU2#,MCU2#

SADDLE GRAY,TRIM14

 1
45130-48120B0

ACU2#,MCU2#

SADDLE GRAY,TRIM1#

 1
45130-22510C0

ACU2#,MCU2#

BLACK,TRIM15

 1
45130-48120C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33050B6

ACU2#,MCU2#

SADDLE GRAY,TRIM1#

 1
45186-44010B8

ACU2#,MCU2#

SADDLE GRAY,TRIM14

 1
45186-33050C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
45186-44010C0

ACU2#,MCU2#

BLACK,TRIM15

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-48010B1

MCU2#

ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),SADDLE GRAY,TRIM14

 1
45186-33050C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
45186-33050B6

ACU2#,MCU2#

SADDLE GRAY,TRIM1#

 1
45186-44010C0

ACU2#,MCU2#

BLACK,TRIM15

 1
45186-44010B8

ACU2#,MCU2#

SADDLE GRAY,TRIM14

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

ACU2#,MCU2#

長さ=18

 2
90148-60007

ACU2#,MCU2#

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

ACU2#,MCU2#

長さ=18

 2
90148-60007

ACU2#,MCU2#

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ACU2#,MCU2#

 1
90179-12071

ACU2#,MCU2#

 1
