MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )MCU2#

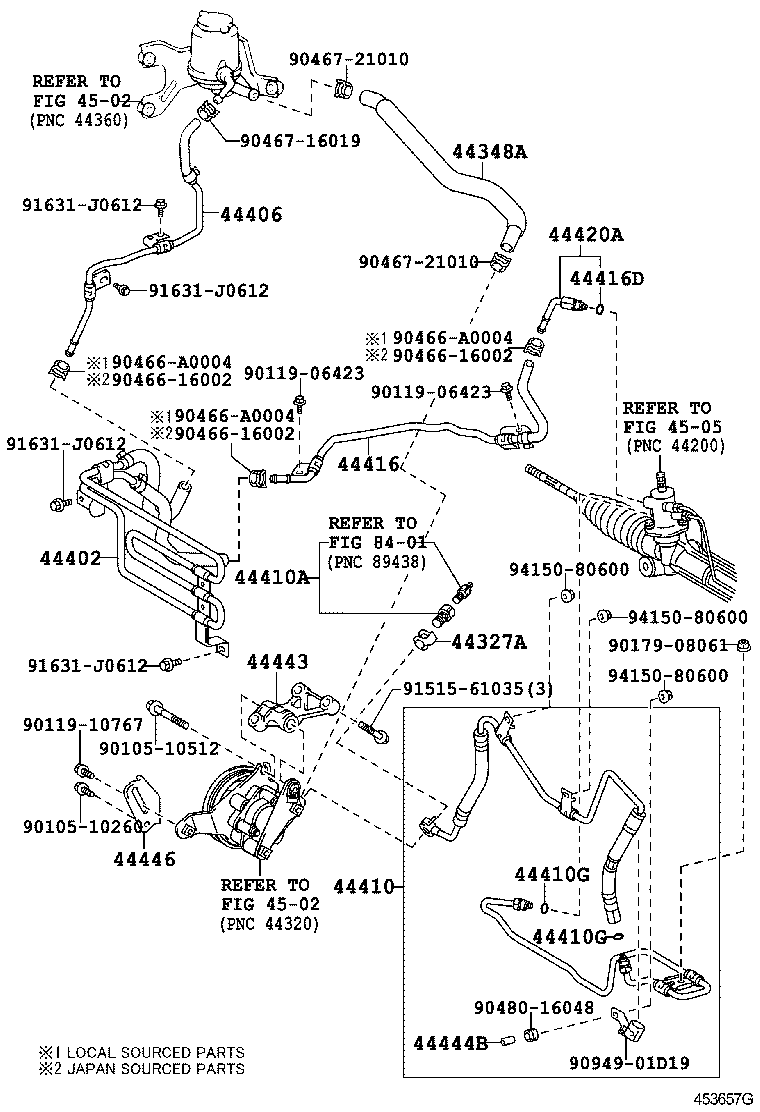

Click highlighted areas on diagram

diagram 44327A 44348A 44402 44406 44410 44410A 44410G 44410G 44416 44416D 44420A 44443 44444B 44446 4502 4502 4505 8401 9010510260 9010510512 9011906423 9011906423 9011910767 9017908061 9046616002 9046616002 9046616002 90466A0004 90466A0004 90466A0004 9046716019 9046721010 9046721010 9048016048 9094901D19 9151561035 91631J0612 91631J0612 91631J0612 91631J0612 9415080600 9415080600 9415080600
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ACU2#,MCU2#

 1
44327-30030

ACU2#,MCU2#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-48060

MCU2#

 1
44348-48061

MCU2#

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-48031

MCU2#

 1
44402-48032

MCU2#

 1
44402-48030

MCU2#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-48060

MCU2#

 1
44406-48121

MCU2#

 1
44406-48120

MCU2#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-48151

MCU2#

 1
44410-48070

MCU2#

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
44338-33090

MCU2#

 1
44338-33090

MCU2#

 1
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009

ACU2#,MCU2#

 2
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009

ACU2#,MCU2#

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-48043

ACU2#,MCU2#

 1
44416-48041

ACU2#,MCU2#

 1
44416-48040

ACU2#,MCU2#

 1
44416-48042

ACU2#,MCU2#

 1
44416D - RING, O(FOR RETURN TUBE)
90301-07009

ACU2#,MCU2#

 1
44420A - TUBE ASSY, RETURN
44420-48020

ACU2#,MCU2#

 1
44420-48020

ACU2#,MCU2#

 1
44443 - BRACKET, PUMP
44443-33041

MCU2#

 1
44443-33041

MCU2#

 1
44444B - COLLAR (FOR PUMP REAR STAY)
90387-09066

MCU2#

 1
44446 - STRUT, ADJUSTING
44446-28030

MCU2#

 1
44446-28030

MCU2#

 1
Common parts
90105-10260
90105-10512
90119-06423
90119-10767
90179-08061
90466-16002
90466-A0004
90467-16019
90467-21010
90480-16048
90949-01D19
91515-61035
91631-J0612
94150-80600
Linked diagrams
4502
4505
8401
