MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

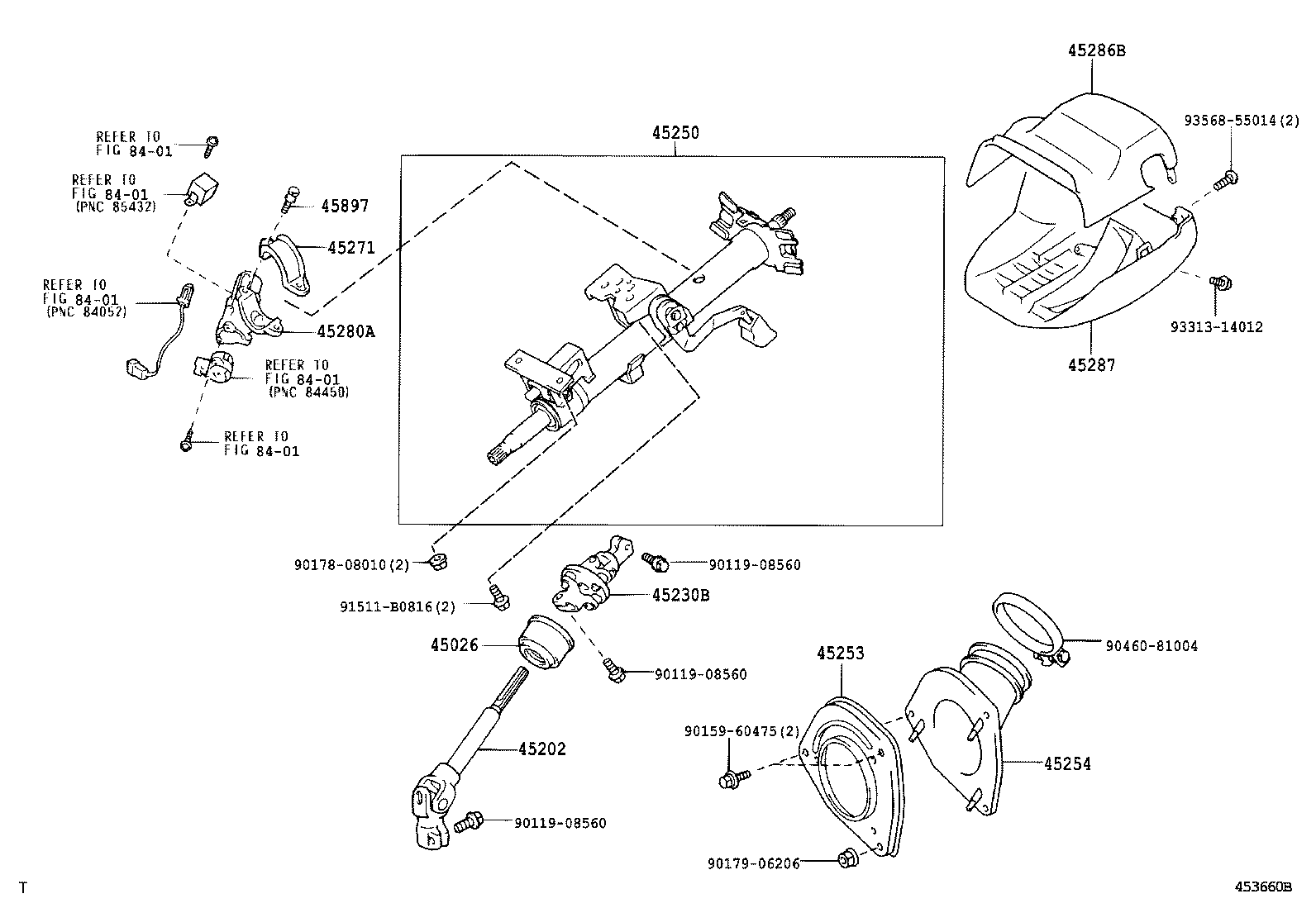

Click highlighted areas on diagram

diagram 45026 45202 45230B 45250 45253 45254 45271 45280A 45286B 45287 45897 8401 8401 8401 8401 8401 9011908560 9011908560 9011908560 9015960475 9017808010 9017906206 9046081004 91511B0816 9331314012 9356855014
Part # Description Qty Price
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-48040

ACU2#,MCU2#

 1
45026-48011

ACU2#,MCU2#

 1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202-48050

ACU2#,MCU2#

 1
45202-48030

ACU2#,MCU2#

 1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45230-48050

ACU2#,MCU2#

 1
45230-48031

ACU2#,MCU2#

 1
45250 - COLUMN ASSY, STEERING
45250-48020

ACU2#,MCU2#

 1
45250-48020

ACU2#,MCU2#

 1
45253 - COVER, STEERING COLUMN HOLE
45253-48010

ACU2#,MCU2#

 1
45253-48030

ACU2#,MCU2#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-48010

ACU2#,MCU2#

 1
45254-48030

ACU2#,MCU2#

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

ACU2#,MCU2#

 1
45271-16020

ACU2#,MCU2#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-48010

ACU2#,MCU2#

 1
45280-48060

ACU2#,MCU2#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-48020B0

ACU2#,MCU2#

SADDLE GRAY,TRIM14

 1
45286-48050C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
45286-48020C0

ACU2#,MCU2#

BLACK,TRIM15

 1
45286-48050B0

ACU2#,MCU2#

SADDLE GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45024-48070C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
45024-48030B0

ACU2#,MCU2#

SADDLE GRAY,TRIM14

 1
45024-48030C0

ACU2#,MCU2#

BLACK,TRIM15

 1
45024-48070B0

ACU2#,MCU2#

SADDLE GRAY,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ACU2#,MCU2#

 2
45897-12020

ACU2#,MCU2#

 2
Common parts
90119-08560
90159-60475
90178-08010
90179-06206
90460-81004
91511-B0816
93313-14012
93568-55014
Linked diagrams
8401
