MCU25W-BWAGK (2003)
Toyota Kluger L/V

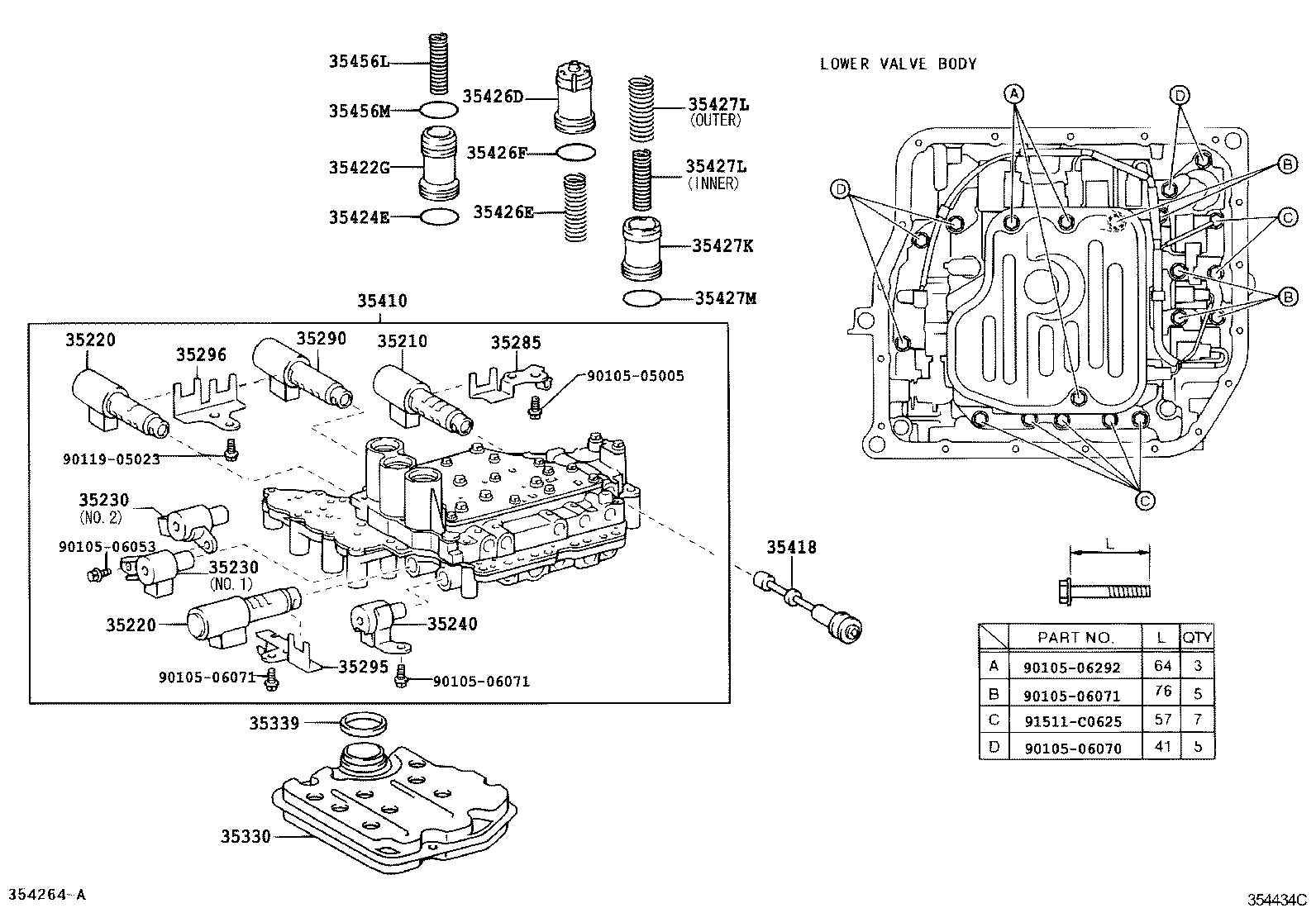

ILLUST NO. 1 OF 3(0308- )MCU2#
U151E,U151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-21010 |
ACU2#,MCU2# |
1 | ||
| 35210-33020 |
MCU2# |
1 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-21010 |
ACU2#,MCU2# |
1 | ||
| 35220-33020 |
MCU2# |
2 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-21010 |
ACU2#,MCU2# |
1 | ||
| 35220-33020 |
MCU2# |
2 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-33010 |
MCU2# NO.1 |
1 | ||
| 35230-21010 |
ACU2#,MCU2# |
1 | ||
| 35230-33020 |
MCU2# NO.2 |
1 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-33010 |
MCU2# NO.1 |
1 | ||
| 35230-21010 |
ACU2#,MCU2# |
1 | ||
| 35230-33020 |
MCU2# NO.2 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-33030 |
MCU2# |
1 | ||
| 35240-21010 |
ACU2#,MCU2# |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-33030 |
MCU2# |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-33020 |
MCU2# |
1 | ||
| 35295 - PLATE, SOLENOID LOCK, NO.2 | ||||
| 35295-33010 |
MCU2# |
1 | ||
| 35296 - PLATE, SOLENOID LOCK, NO.3 | ||||
| 35296-33010 |
MCU2# |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-08010 |
MCU2# |
1 | ||
| 35330-28010 |
ACU2#,MCU2# |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32012 |
MCU2# |
1 | ||
| 90301-32010 |
ACU2#,MCU2# |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-28420 |
ACU2#,MCU2# |
1 | ||
| 35410-33130 |
MCU2# |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-21011 |
ACU2#,MCU2# |
1 | ||
| 35418-33010 |
MCU2# |
1 | ||
| 35422G - PISTON, REVERSE CLUTCH ACCUMULATOR | ||||
| 35422-33040 |
MCU2# |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-27008 |
ACU2#,MCU2# 上側 |
1 | ||
| 90301-30007 |
ACU2#,MCU2# 下側 |
1 | ||
| 90301-30007 |
MCU2# |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35406-21010 |
ACU2#,MCU2# |
1 | ||
| 35406-21010 |
ACU2#,MCU2# |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90905-01035 |
ACU2#,MCU2# |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
ACU2#,MCU2# |
1 | ||
| 90301-30007 |
ACU2#,MCU2# |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-28010 |
ACU2#,MCU2# |
1 | ||
| 35427-28010 |
ACU25,MCU2# |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
ACU2#,MCU2# 外側 |
1 | ||
| 90501-19037 |
MCU2# 内側 |
1 | ||
| 90501-26096 |
MCU2# 外側､AISIN:FIG35−01参照 |
1 | ||
| 90501-19037 |
MCU2# 内側,AISIN:FIG35−01参照 |
1 | ||
| 90501-26096 |
MCU2# 外側 |
1 | ||
| 90501-22041 |
MCU2# 内側 |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
ACU2#,MCU2# 外側 |
1 | ||
| 90501-19037 |
MCU2# 内側 |
1 | ||
| 90501-26096 |
MCU2# 外側､AISIN:FIG35−01参照 |
1 | ||
| 90501-19037 |
MCU2# 内側,AISIN:FIG35−01参照 |
1 | ||
| 90501-26096 |
MCU2# 外側 |
1 | ||
| 90501-22041 |
MCU2# 内側 |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
ACU2#,MCU2# |
1 | ||
| 90301-28008 |
ACU2#,MCU2# |
1 | ||
| 35456L - SPRING, COMPRESSION (FOR C-2 CONTROL VALVE) | ||||
| 90501-19038 |
MCU2# |
1 | ||
| 90501-19038 |
MCU2# |
1 | ||
| 35456M - RING, O (FOR C-2 CONTROL) | ||||
| 90301-19016 |
MCU2# |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06053 | ||||
| 90105-06070 | ||||
| 90105-06071 | ||||
| 90105-06292 | ||||
| 90119-05023 | ||||
| 91511-C0625 | ||||
