MCU25W-BWAGK (2003)
Toyota Kluger L/V

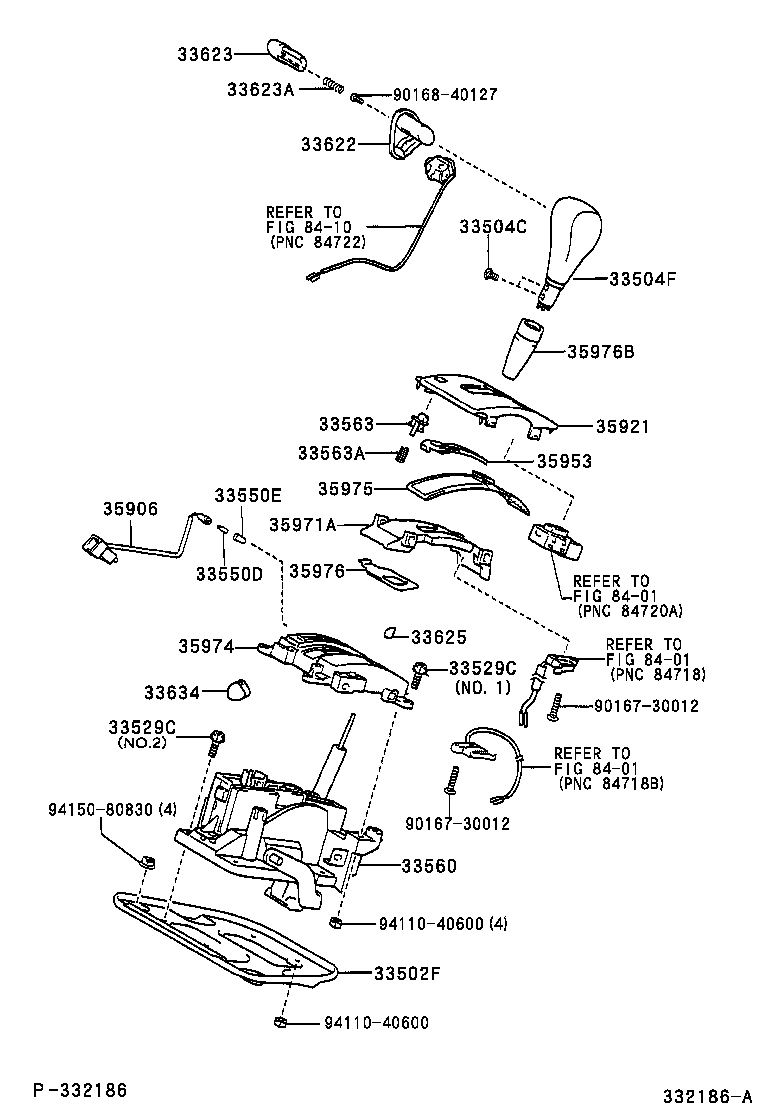

ILLUST NO. 1 OF 2(0308- )MCU2#
ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502F - HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33502-48040 |
ACU2#,MCU2# |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
ACU2#,MCU2# |
2 | ||
| 90159-40238 |
ACU2#,MCU2# |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-48020B1 |
ACU2#,MCU2# SADDLE GRAY,TRIM1# |
1 | ||
| 33542-48020B1 |
ACU2#,MCU2# SADDLE GRAY,TRIM14 |
1 | ||
| 33542-48020C0 |
ACU2#,MCU2# BLACK,TRIM15 |
1 | ||
| 33542-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 33529C - BOLT, SHIFT LEVER | ||||
| 33529-48010 |
ACU2#,MCU2# NO.2 |
4 | ||
| 33529-50010 |
ACU2#,MCU2# NO.1 |
4 | ||
| 33529-50010 |
ACU2#,MCU2# |
4 | ||
| 33529C - BOLT, SHIFT LEVER | ||||
| 33529-48010 |
ACU2#,MCU2# NO.2 |
4 | ||
| 33529-50010 |
ACU2#,MCU2# NO.1 |
4 | ||
| 33529-50010 |
ACU2#,MCU2# |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11040 |
MCU2# 12V 2W |
1 | ||
| 90981-11018 |
ACU2#,MCU2# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04055 |
ACU2#,MCU2# |
1 | ||
| 90339-04055 |
ACU2#,MCU2# |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-48050 |
ACU2#,MCU2# S ﾊﾟﾂｹ-ｼﾞ *(S) |
1 | ||
| 33560-48040 |
ACU2#,MCU2# |
1 | ||
| 33560-48180 |
MCU2# |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-48030 |
ACU2#,MCU2# |
1 | ||
| 33563-48030 |
ACU2#,MCU2# |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06089 |
ACU2#,MCU2# |
1 | ||
| 90501-06089 |
ACU2#,MCU2# |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-48020C0 |
ACU2#,MCU2# BLACK,TRIM15 |
1 | ||
| 33622-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 33622-48020B1 |
ACU2#,MCU2# SADDLE GRAY,TRIM14 |
1 | ||
| 33622-48020B1 |
ACU2#,MCU2# SADDLE GRAY,TRIM1# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-48010B1 |
ACU2#,MCU2# SADDLE GRAY,TRIM14 |
1 | ||
| 33623-48010C0 |
ACU2#,MCU2# BLACK,TRIM15 |
1 | ||
| 33623-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 33623-48010B1 |
ACU2#,MCU2# SADDLE GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07116 |
ACU2#,MCU2# |
1 | ||
| 90501-07116 |
ACU2#,MCU2# |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-48010 |
ACU2#,MCU2# |
1 | ||
| 33625-48010 |
ACU2#,MCU2# |
1 | ||
| 33634 - PROTECTOR, WIRE | ||||
| 33634-48010 |
ACU2#,MCU2# |
1 | ||
| 33634-48020 |
MCU2# |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-48040 |
MCU2# |
1 | ||
| 35906-48010 |
ACU2#,MCU2# |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-48030 |
ACU2#,MCU2# |
1 | ||
| 35921-48040 |
ACU2#,MCU2# S ﾊﾟﾂｹ-ｼﾞ *(S) |
1 | ||
| 35921-48060 |
MCU2# ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-48040 |
MCU2# |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-48010 |
ACU2#,MCU2# |
1 | ||
| 35971-48020 |
MCU2# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-48060 |
MCU2# ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| 35974-48010 |
ACU2#,MCU2# S ﾊﾟﾂｹ-ｼﾞ *(S) |
1 | ||
| 35974-48030 |
ACU2#,MCU2# |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-48020 |
ACU2#,MCU2# |
1 | ||
| 35975-48010 |
ACU2#,MCU2# S ﾊﾟﾂｹ-ｼﾞ *(S) |
1 | ||
| 35975-48050 |
MCU2# |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-48030 |
MCU2# |
1 | ||
| 35976-48010 |
ACU2#,MCU2# |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 33622-48010 |
ACU2#,MCU2# |
1 | ||
| 33622-48010 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90167-30012 | ||||
| 90168-40127 | ||||
| 94110-40600 | ||||
| 94150-80830 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
