MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

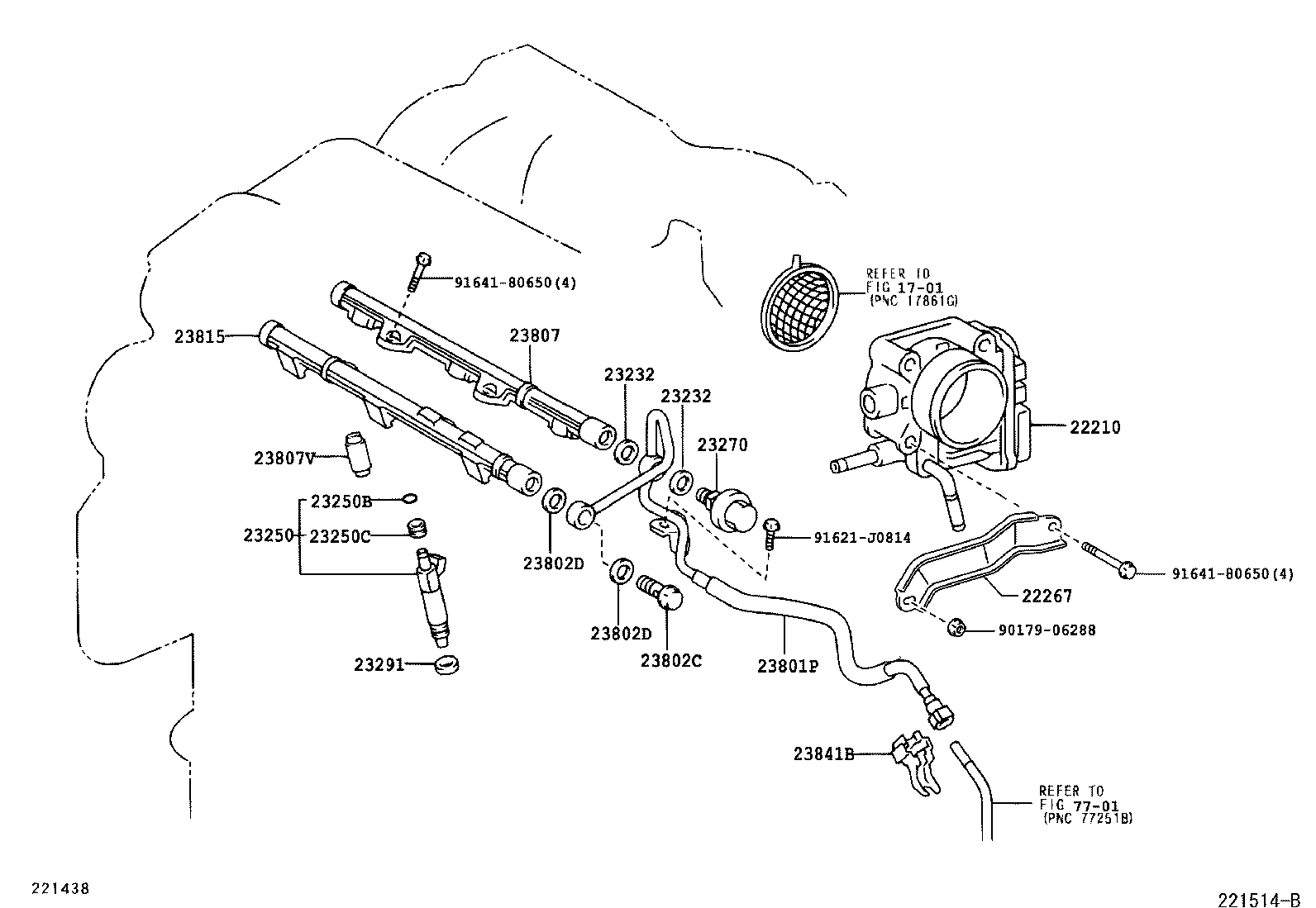

ILLUST NO. 1 OF 2(0308- )1MZFE

Click highlighted areas on diagram

diagram 1701 22210 22267 23232 23232 23250 23250B 23250C 23270 23291 23801P 23802C 23802D 23802D 23807 23807V 23815 23841B 7701 9017906288 91621J0814 9164180650 9164180650
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-20130

1MZFE..MCU2#

 1
22030-20060

1MZFE..MCU2#

 1
22267 - BRACKET, THROTTLE BODY
22267-20010

1MZFE..MCU2#

 1
22267-20020

1MZFE..MCU2#

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1MZFE..MCU2#

 2
23232-41081

1MZFE..MCU2#

 2
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1MZFE..MCU2#

 2
23232-41081

1MZFE..MCU2#

 2
23250 - INJECTOR ASSY, FUEL
23209-20020

1MZFE..MCU2#

 6
23209-20030

1MZFE..MCU2#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

1MZFE..MCU2#

 6
90301-07024

1MZFE..MCU2#

 12
90301-07037

1MZFE..MCU2#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1MZFE..MCU2#

 6
90480-13005

1MZFE..MCU2#

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-62010

1MZFE..MCU2#

 1
23270-62011

1MZFE..MCU2#

 1
23270-62010

1MZFE..MCU2#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1MZFE..MCU2#

 6
23291-20010

1MZFE..MCU2#

 6
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-20120

1MZFE..MCU2#

 1
23801-20180

1MZFE..MCU2#

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12015

1MZFE..MCU2#

 1
90401-12015

1MZFE..MCU2#

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12026

1MZFE..MCU2#

 2
90430-12026

1MZFE..MCU2#

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12026

1MZFE..MCU2#

 2
90430-12026

1MZFE..MCU2#

 2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-20020

1MZFE..MCU2#

 1
23814-20021

1MZFE..MCU2#

 1
23814-20020

1MZFE..MCU2#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08020

1MZFE..MCU2#

 4
90561-08020

1MZFE..MCU2#

 4
23815 - PIPE, FUEL DELIVERY, NO.2
23815-20021

1MZFE..MCU2#

 1
23815-20020

1MZFE..MCU2#

 1
23815-20020

1MZFE..MCU2#

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010

1MZFE..MCU2#

 1
23841-28010

1MZFE..MCU2#

 1
Common parts
90179-06288
91621-J0814
91641-80650
Linked diagrams
1701
7701

ILLUST NO. 2 OF 2(0308- )1MZFE

Click highlighted areas on diagram

diagram 23217A 23220P 23225 23229 23280 23280E 23280E 23300Z 7701 7701 7701 7701 8401 9030108019
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-50100

1MZFE..MCU2#

 1
23217-50100

1MZFE..MCU2#

 1
23217-76040

1MZFE..MCU2#

 1
23217-76040

1MZFE..MCU2#

 1
23220P - PUMP ASSY, FUEL
23221-62060

1MZFE..MCU2#

 1
23221-62060

1MZFE..MCU2#

 1
23221-20030

1MZFE..MCU2#

 1
23221-20030

1MZFE..MCU2#

 1
23225 - SPACER, FUEL PUMP
23225-50010

1MZFE..MCU2#

 1
23225-50010

1MZFE..MCU2#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1MZFE..MCU2#

 1
23229-16010

1MZFE..MCU2#

 1
23229-16010

1MZFE..MCU2#

 1
23229-16010

1MZFE..MCU2#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-20040

1MZFE..MCU2#

 1
23280-20040

1MZFE..MCU2#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

1MZFE..MCU2#

NO.2

 1
90301-04013

1MZFE..MCU2#

NO.2

 1
90301-15024

1MZFE..MCU2#

NO.1

 1
90301-15024

1MZFE..MCU2#

NO.1

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

1MZFE..MCU2#

NO.2

 1
90301-04013

1MZFE..MCU2#

NO.2

 1
90301-15024

1MZFE..MCU2#

NO.1

 1
90301-15024

1MZFE..MCU2#

NO.1

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-21010

1MZFE..MCU2#

 1
23300-21010

1MZFE..MCU2#

 1
23300-20130

1MZFE..MCU2#

 1
23300-20130

1MZFE..MCU2#

 1
Common parts
90301-08019
Linked diagrams
7701
8401
