MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )1MZFE

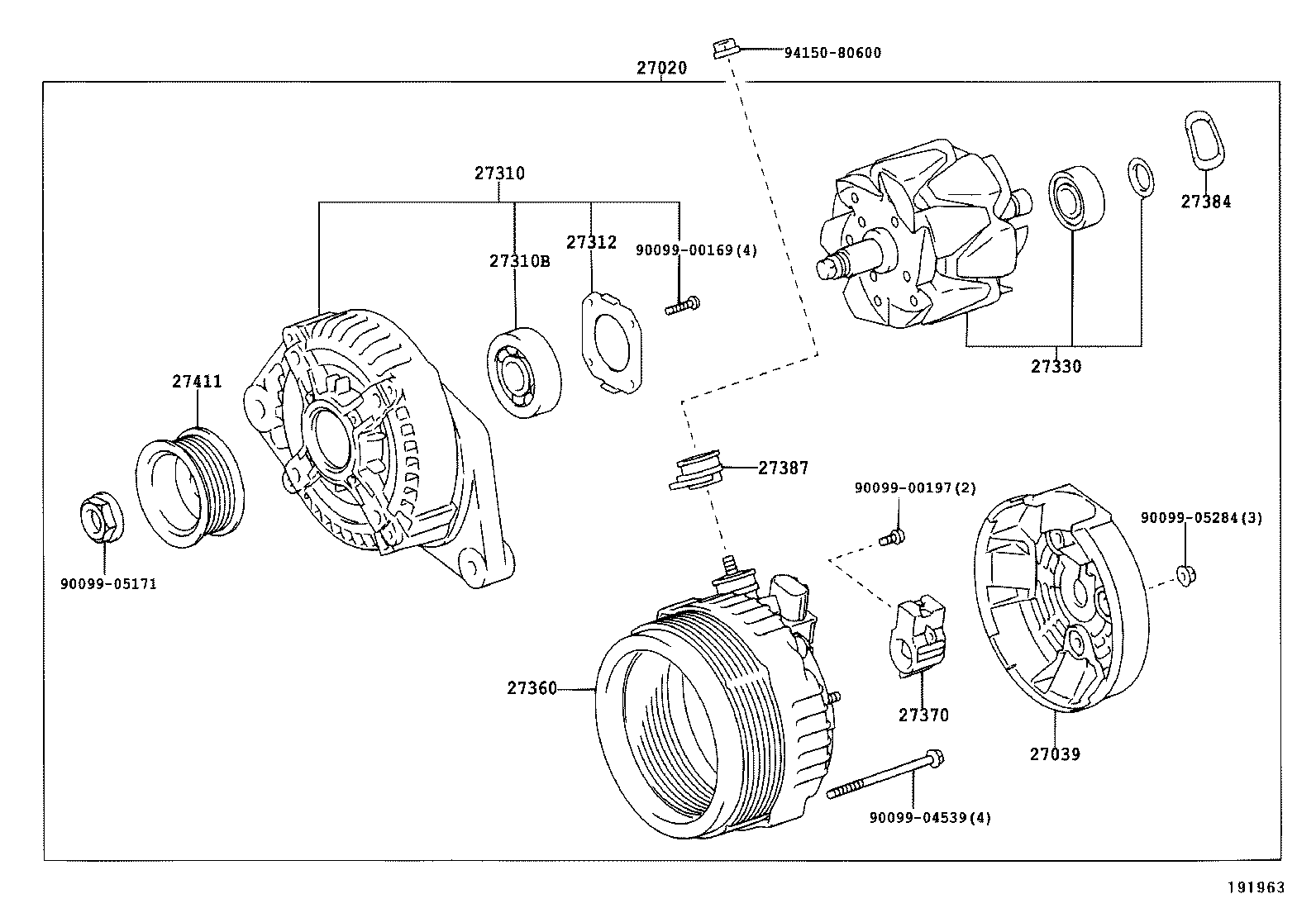

Click highlighted areas on diagram

12V 100A

diagram 27020 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27411 9009900169 9009900197 9009904539 9009905171 9009905284 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-20200

1MZFE..MCU2#

12V 100A

 1
27060-20270

1MZFE..MCU2#

12V 100A

 1
27039 - COVER, ALTERNATOR REAR END
27039-27060

1MZFE..MCU2#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-20130

1MZFE..MCU2#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

1MZFE..MCU2#

 1
90099-10142

1MZFE..MCU2#

 1
27312 - PLATE, RETAINER
27312-72100

2AZFE,1MZFE..ACU2#,MCU2#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-30070

1MZFE..MCU2#

 1
27330-20070

2AZFE,1MZFE..ACU2#,MCU2#

 1
27360 - COIL ASSY, ALTERNATOR
27360-20220

1MZFE..MCU2#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

1MZFE..MCU2#

 1
27370-75060

2AZFE,1MZFE..ACU2#,MCU2#

 1
27384 - WASHER
27384-50030

2AZFE,1MZFE..ACU2#,MCU2#

 1
27387 - INSULATOR, TERMINAL
27387-20130

2AZFE,1MZFE..ACU2#,MCU2#

 1
27411 - PULLEY, ALTERNATOR
27411-46080

1MZFE..MCU2#

 1
27411-46080

1MZFE..MCU2#

 1
Common parts
90099-00169
90099-00197
90099-04539
90099-05171
90099-05284
94150-80600
