MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )1MZFE

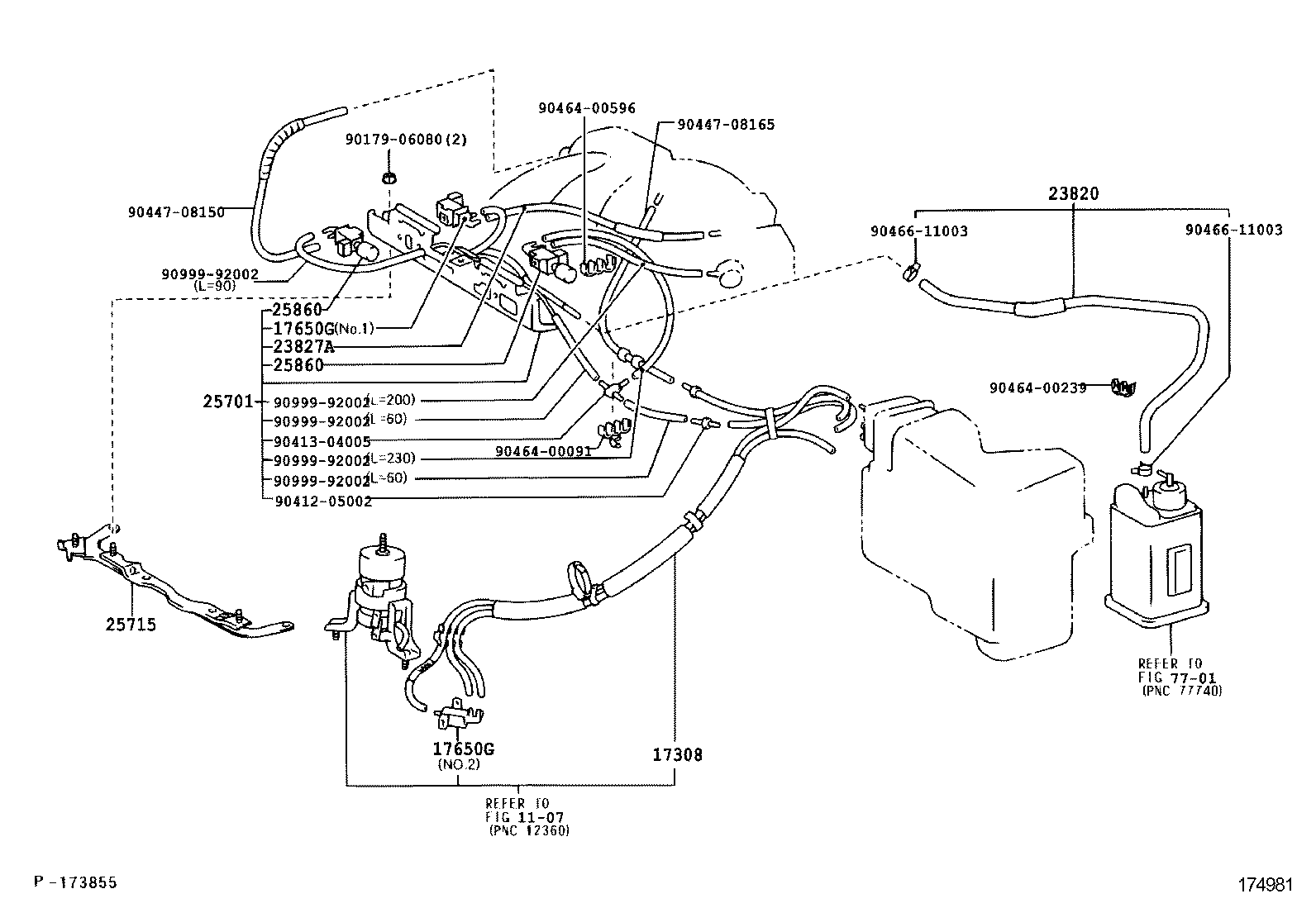

Click highlighted areas on diagram

diagram 1107 17308 17650G 17650G 23820 23827A 25701 25715 25860 25860 7701 9017906080 9041205002 9041304005 9044708150 9044708165 9046400091 9046400239 9046400596 9046611003 9046611003 9099992002 9099992002 9099992002 9099992002 9099992002
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-20220

1MZFE..MCU2#

 1
17308-20230

1MZFE..MCU2#

 1
17308-20160

1MZFE..MCU2#

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12193

1MZFE..MCU2#

NO.2

 1
90910-12204

1MZFE..MCU2#

NO.2

 1
90910-12241

1MZFE..MCU2#

NO.1

 1
90910-12241

1MZFE..MCU2#

NO.1

 1
90910-12193

1MZFE..MCU2#

NO.2

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12193

1MZFE..MCU2#

NO.2

 1
90910-12204

1MZFE..MCU2#

NO.2

 1
90910-12241

1MZFE..MCU2#

NO.1

 1
90910-12241

1MZFE..MCU2#

NO.1

 1
90910-12193

1MZFE..MCU2#

NO.2

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-20220

1MZFE..MCU2#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-20090

1MZFE..MCU2#

 1
23827-20030

1MZFE..MCU2#

 1
25701 - VALVE SET, EMISSION CONTROL
25701-20160

1MZFE..MCU2#

 1
25701-20190

1MZFE..MCU2#

 1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-20010

1MZFE..MCU2#

 1
25715-20011

1MZFE..MCU2#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-62010

1MZFE..MCU2#

 2
25860-62010

1MZFE..MCU2#

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-62010

1MZFE..MCU2#

 2
25860-62010

1MZFE..MCU2#

 2
Common parts
90179-06080
90412-05002
90413-04005
90447-08150
90447-08165
90464-00091
90464-00239
90464-00596
90466-11003
90999-92002
Linked diagrams
1107
7701
