MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )1MZFE

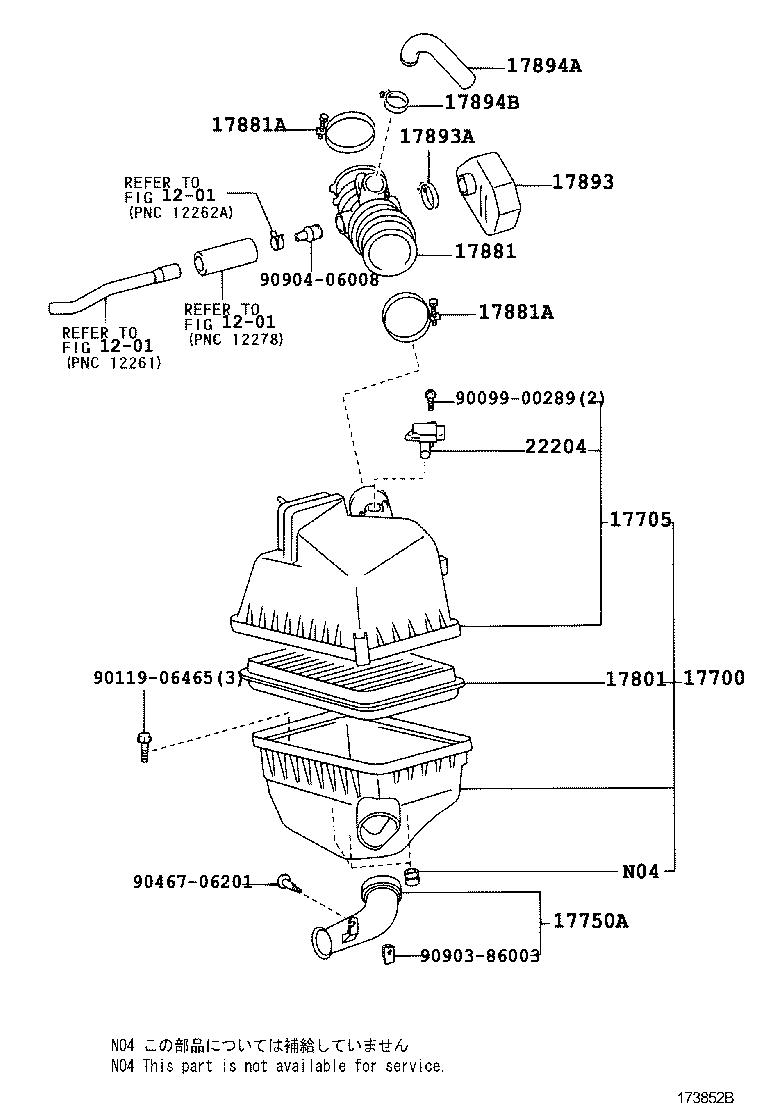

Click highlighted areas on diagram

diagram 1201 1201 1201 17700 17705 17750A 17801 17881 17881A 17881A 17893 17893A 17894A 17894B 22204 9009900289 9011906465 9046706201 9090386003 9090406008
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-20210

1MZFE..MCU2#

 1
17700-20160

1MZFE..MCU2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-20130

1MZFE..MCU2#

 1
17705-20200

1MZFE..MCU2#

 1
17750A - INLET ASSY, AIR CLEANER
17750-20090

1MZFE..MCU2#

 1
17750-20090

1MZFE..MCU2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-20040

1MZFE..MCU2#

 1
17801-20040

1MZFE..MCU2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-20120

1MZFE..MCU2#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10620

1MZFE..MCU2#

NO.1

 2
96111-10850

1MZFE..MCU2#

NO.2

 1
96111-10850

1MZFE..MCU2#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10620

1MZFE..MCU2#

NO.1

 2
96111-10850

1MZFE..MCU2#

NO.2

 1
96111-10850

1MZFE..MCU2#

 2
17893 - RESONATOR, INTAKE AIR
17893-20090

1MZFE..MCU2#

 1
17893A - CLAMP, HOSE
96111-10560

1MZFE..MCU2#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-20010

1MZFE..MCU2#

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10480

1MZFE..MCU2#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-21010

1MZFE..MCU2#

 1
22204-21010

1MZFE..MCU2#

 1
Common parts
90099-00289
90119-06465
90467-06201
90903-86003
90904-06008
Linked diagrams
1201
