MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )1MZFE

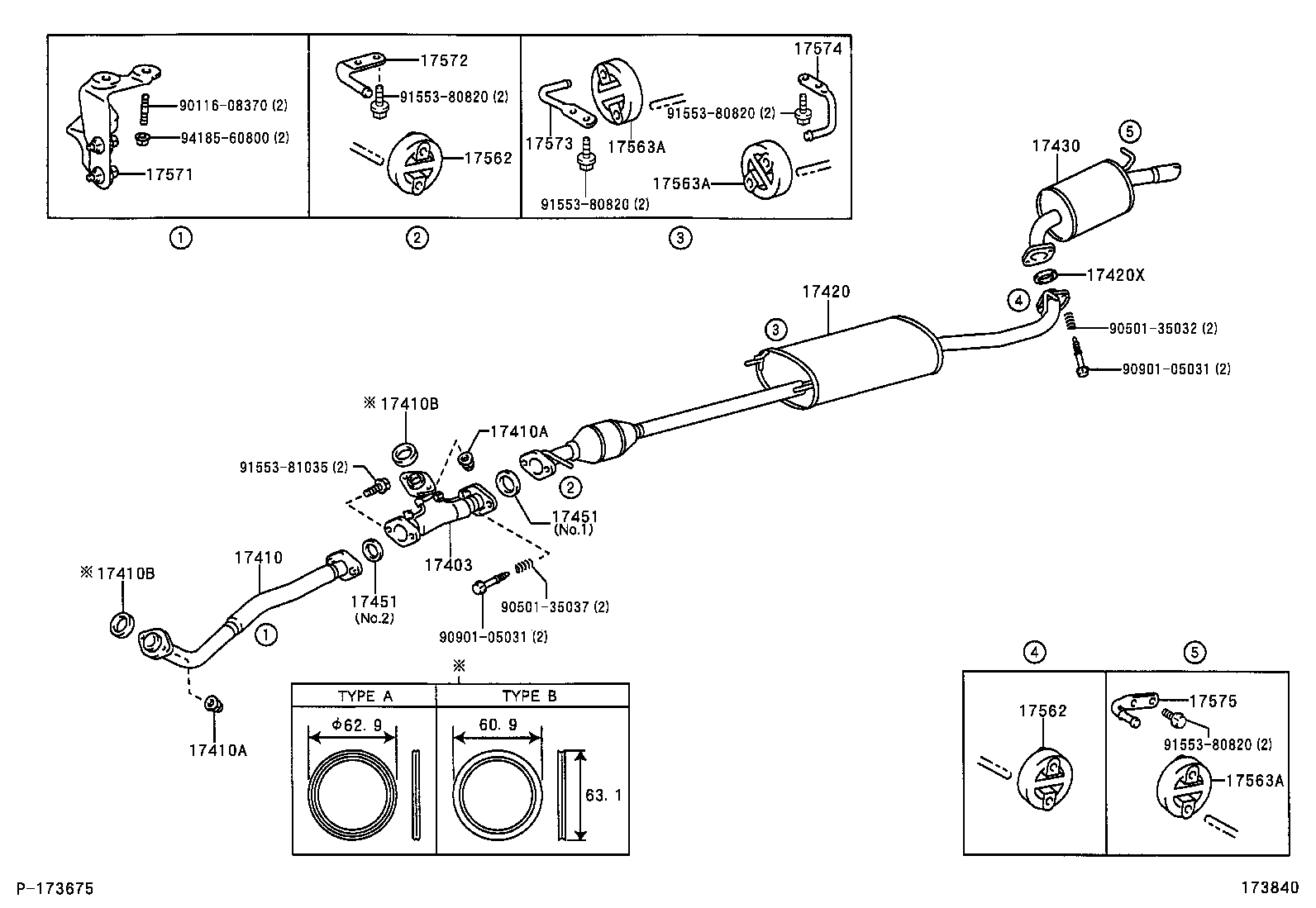

Click highlighted areas on diagram

diagram 17403 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17451 17451 17562 17562 17563A 17563A 17563A 17571 17572 17573 17574 17575 9011608370 9050135032 9050135037 9090105031 9090105031 9155380820 9155380820 9155380820 9155380820 9155381035 9418560800
Part # Description Qty Price
17403 - PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17403-20160

1MZFE..MCU2#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-20380

1MZFE..MCU2#

 1
17410-20440

1MZFE..MCU2#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MCU2#

 4
90179-10070

1MZFE..MCU2#

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MCU2#

 4
90179-10070

1MZFE..MCU2#

 4
17410B - GASKET, EXHAUST PIPE
90917-06065

1MZFE..MCU2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90917-06089

1MZFE..MCU2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90917-06075

1MZFE..MCU2#

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1MZFE..MCU2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90917-06089

1MZFE..MCU2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90917-06075

1MZFE..MCU2#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-20350

1MZFE..MCU2#

 1
17420-20280

1MZFE..MCU2#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-74060

2AZFE,1MZFE..ACU2#,MCU2#

 1
17451-22060

2AZFE,1MZFE..ACU2#,MCU2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17440-20170

1MZFE..MCU2#

 1
17430-20150

2AZFE,1MZFE..ACU2#,MCU2#

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

1MZFE..MCU2#

NO.2

 1
17451-22070

1MZFE..MCU2#

NO.1

 1
17451-20020

1MZFE..MCU2#

ﾘﾔ

 1
90917-06078

1MZFE..MCU2#

ﾌﾛﾝﾄ,NO.2

 1
90917-06046

1MZFE..MCU2#

ﾌﾛﾝﾄ,NO.1

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

1MZFE..MCU2#

NO.2

 1
17451-22070

1MZFE..MCU2#

NO.1

 1
17451-20020

1MZFE..MCU2#

ﾘﾔ

 1
90917-06078

1MZFE..MCU2#

ﾌﾛﾝﾄ,NO.2

 1
90917-06046

1MZFE..MCU2#

ﾌﾛﾝﾄ,NO.1

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-11160

2AZFE,1MZFE..ACU2#,MCU2#

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-11160

2AZFE,1MZFE..ACU2#,MCU2#

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2AZFE,1MZFE..ACU2#,MCU2#

 3
17565-15140

2AZFE,1MZFE..ACU2#,MCU2#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2AZFE,1MZFE..ACU2#,MCU2#

 3
17565-15140

2AZFE,1MZFE..ACU2#,MCU2#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2AZFE,1MZFE..ACU2#,MCU2#

 3
17565-15140

2AZFE,1MZFE..ACU2#,MCU2#

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-20190

1MZFE..MCU2#

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-20070

2AZFE,1MZFE..ACU2#,MCU2#

 1
17572-20100

2AZFE,1MZFE..ACU2#,MCU2#

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-20070

2AZFE,1MZFE..ACU2#,MCU2#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-20070

2AZFE,1MZFE..ACU2#,MCU2#

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-20040

2AZFE,1MZFE..ACU2#,MCU2#

 1
Common parts
90116-08370
90501-35032
90501-35037
90901-05031
91553-80820
91553-81035
94185-60800
