MCU20W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)

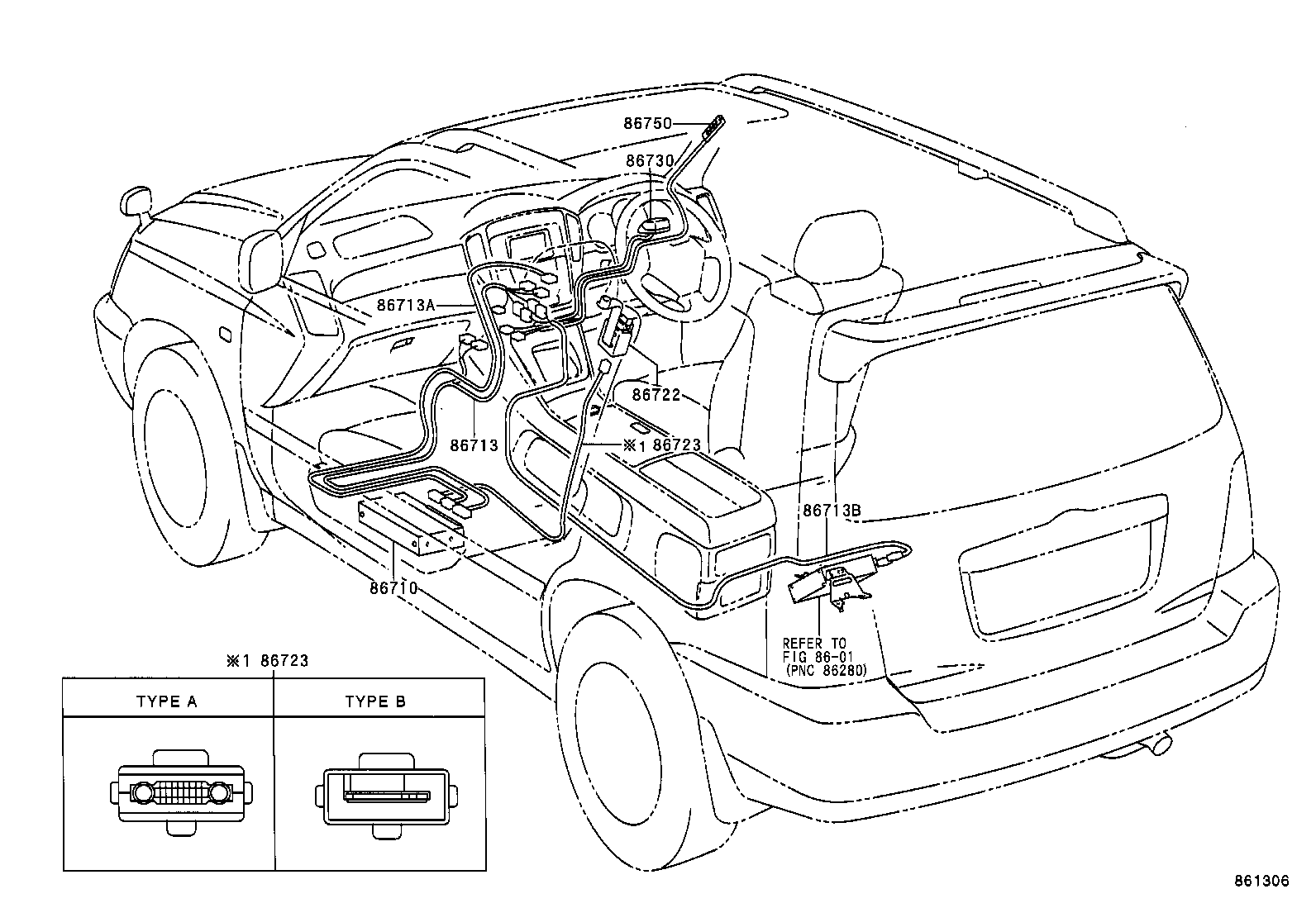

Click highlighted areas on diagram

diagram 8601 86710 86713 86713A 86713B 86722 86723 86723 86730 86750
Part # Description Qty Price
86710 - COMPUTER ASSY, TELEPHONE
86710-50120

ACU2#,MCU2#

 1
86713 - WIRE, TELEPHONE COMPUTER
86713-48020

ACU2#,MCU2#

 1
86713A - WIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)
86713-48030

ACU2#,MCU2#

 1
86713B - WIRE, TELEPHONE COMPUTER, (TO FRAM W/H)
86713-48050

ACU2#,MCU2#

 1
86722 - CRADLE, MOBILEPHONE
86722-47010

ACU2#,MCU2#

 1
86723 - WIRE, MOBILEPHONE
86723-47010

ACU2#,MCU2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86723-47020

ACU2#,MCU2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86723 - WIRE, MOBILEPHONE
86723-47010

ACU2#,MCU2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86723-47020

ACU2#,MCU2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86730 - MICROPHONE ASSY, TELEPHONE
86730-48010

ACU2#,MCU2#

 1
86750 - SWITCH ASSY, TELEPHONE
86750-22020

ACU2#,MCU2#

 1
Linked diagrams
8601
