MCU20W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)

Click highlighted areas on diagram

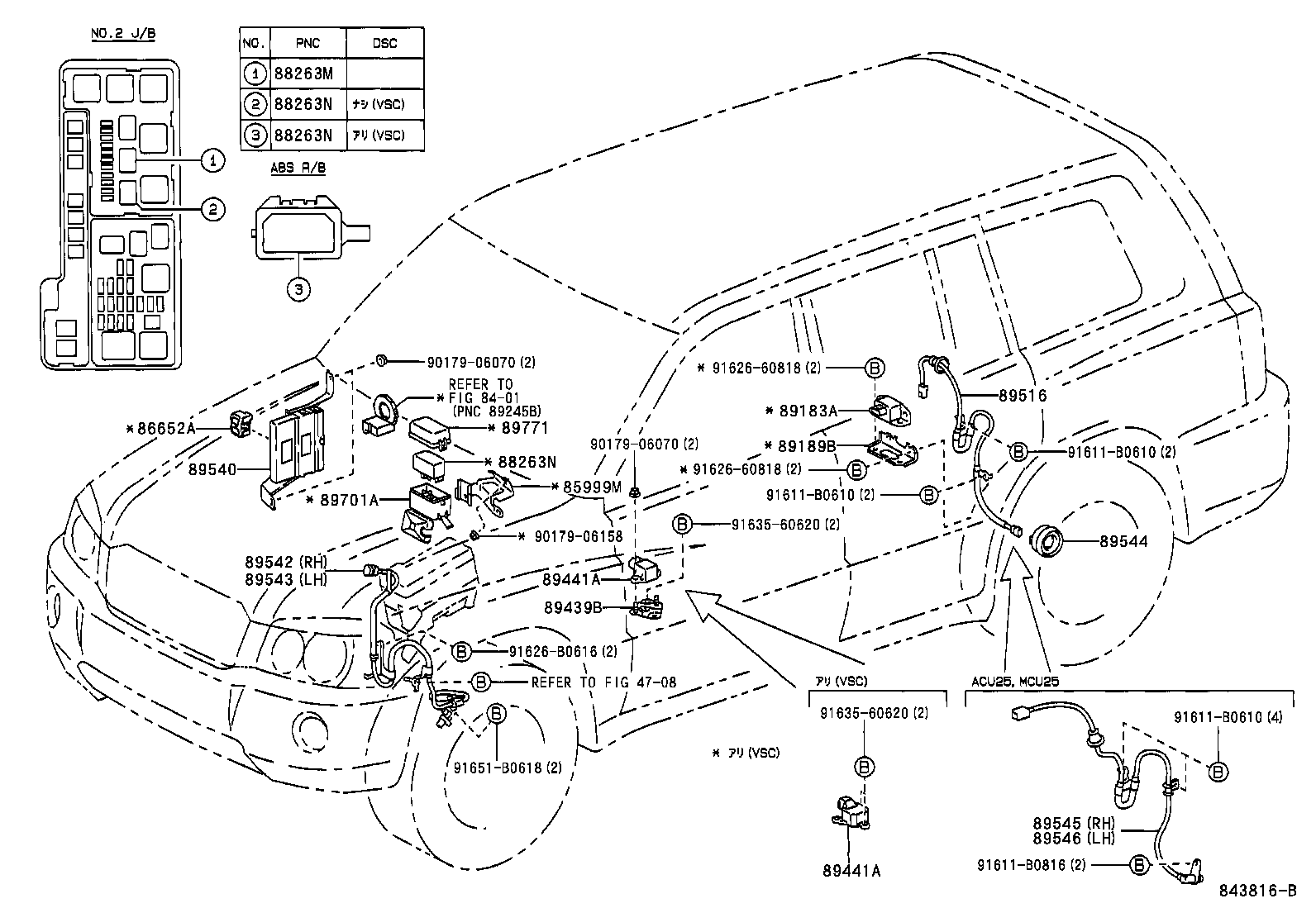

diagram 4708 8401 85999M 86652A 88263M 88263N 88263N 88263N 89183A 89189B 89439B 89441A 89441A 89516 89540 89542 89543 89544 89545 89546 89701A 89771 9017906070 9017906070 9017906158 91611B0610 91611B0610 91611B0610 91611B0816 9162660818 9162660818 91626B0616 9163560620 9163560620 91651B0618
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-48040

MCU2#

 1
86652A - BUZZER ASSY, SKID CONTROL
86652-51010

MCU2#

 1
88263M - RELAY, ABS SOLENOID
88263-32070

ACU2#,MCU2#

 1
88263N - RELAY, ABS MOTOR
88263-30150

MCU2#

ｱﾘ(VSC)

 1
88263-32070

ACU2#,MCU2#

 1
88263N - RELAY, ABS MOTOR
88263-30150

MCU2#

ｱﾘ(VSC)

 1
88263-32070

ACU2#,MCU2#

 1
88263N - RELAY, ABS MOTOR
88263-30150

MCU2#

ｱﾘ(VSC)

 1
88263-32070

ACU2#,MCU2#

 1
89183A - SENSOR, YAWRATE
89183-50010

MCU2#

 1
89189B - BRACKET, YAWRATE SENSOR
89189-48010

MCU2#

 1
89441A - SENSOR, DECELERATION
89441-30050

MCU2#

ｱﾘ(VSC)

 1
89441A - SENSOR, DECELERATION
89441-30050

MCU2#

ｱﾘ(VSC)

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-48010

ACU20,MCU20

右側

 1
89516-48020

ACU20,MCU20

左側

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-48160

ACU20,MCU20

 1
89540-48200

MCU20

ｱﾘ(VSC)

 1
89542 - SENSOR, SPEED, FRONT RH
89542-48020

ACU2#,MCU2#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-48020

ACU2#,MCU2#

 1
89544 - SENSOR, SKID CONTROL
89544-48010

ACU20,MCU20

 2
89701A - BLOCK SUB-ASSY, ABS RELAY
89701-48010

MCU2#

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-48010

MCU2#

 1
Common parts
90179-06070
90179-06158
91611-B0610
91611-B0816
91626-60818
91626-B0616
91635-60620
91651-B0618
