MCU20W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)1MZFE

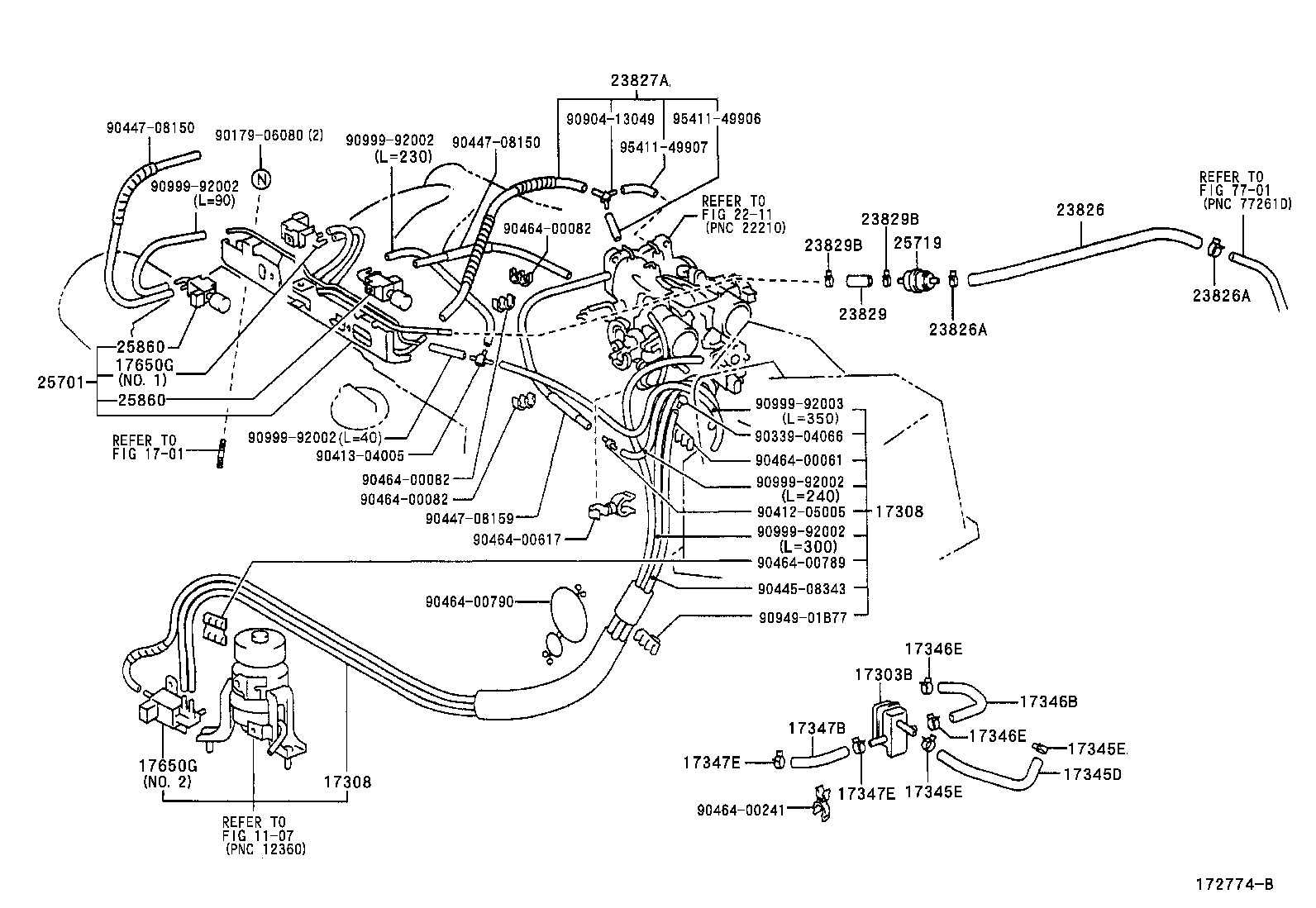

Click highlighted areas on diagram

diagram 1107 1701 17303B 17308 17308 17345D 17345E 17345E 17346B 17346E 17346E 17347B 17347E 17347E 17650G 17650G 2211 23826 23826A 23826A 23827A 23829 23829B 23829B 25701 25719 25860 25860 7701 9017906080 9033904066 9041205005 9041304005 9044508343 9044708150 9044708150 9044708159 9046400061 9046400082 9046400082 9046400082 9046400241 9046400617 9046400789 9046400790 9090413049 9094901B77 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9541149906 9541149907
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-20010

1MZFE..MCU2#

 1
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-20160

1MZFE..MCU2#

 1
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-20160

1MZFE..MCU2#

 1
17345D - HOSE, AIR, NO.5
17345-20030

1MZFE..MCU2#

 1
17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5)
90467-16003

1MZFE..MCU2#

 2
96134-51500

1MZFE..MCU2#

 2
17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5)
90467-16003

1MZFE..MCU2#

 2
96134-51500

1MZFE..MCU2#

 2
17346B - HOSE, AIR, NO.6
17346-20010

1MZFE..MCU2#

 1
17346E - CLIP(FOR AIR HOSE NO.6)
90467-13007

1MZFE..MCU2#

 2
96132-51300

1MZFE..MCU2#

 2
17346E - CLIP(FOR AIR HOSE NO.6)
90467-13007

1MZFE..MCU2#

 2
96132-51300

1MZFE..MCU2#

 2
17347B - HOSE, AIR, NO.7
17347-20010

1MZFE..MCU2#

 1
17347E - CLIP(FOR AIR HOSE NO.7)
90467-13007

1MZFE..MCU2#

 2
96132-51300

1MZFE..MCU2#

 2
17347E - CLIP(FOR AIR HOSE NO.7)
90467-13007

1MZFE..MCU2#

 2
96132-51300

1MZFE..MCU2#

 2
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12241

1MZFE..MCU2#

NO.1

 1
90910-12193

1MZFE..MCU2#

NO.2

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12241

1MZFE..MCU2#

NO.1

 1
90910-12193

1MZFE..MCU2#

NO.2

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23829-20110

1MZFE..MCU2#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-30600

1MZFE..MCU2#

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-30600

1MZFE..MCU2#

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-20030

1MZFE..MCU2#

 1
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-20050

1MZFE..MCU2#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

1MZFE..MCU2#

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

1MZFE..MCU2#

 2
25701 - VALVE SET, EMISSION CONTROL
25701-20160

1MZFE..MCU2#

 1
25719 - TANK, VACUUM SURGE
25719-20020

1MZFE..MCU2#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-62010

1MZFE..MCU2#

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-62010

1MZFE..MCU2#

 2
Common parts
90179-06080
90339-04066
90412-05005
90413-04005
90445-08343
90447-08150
90447-08159
90464-00061
90464-00082
90464-00241
90464-00617
90464-00789
90464-00790
90904-13049
90949-01B77
90999-92002
90999-92003
95411-49906
95411-49907
