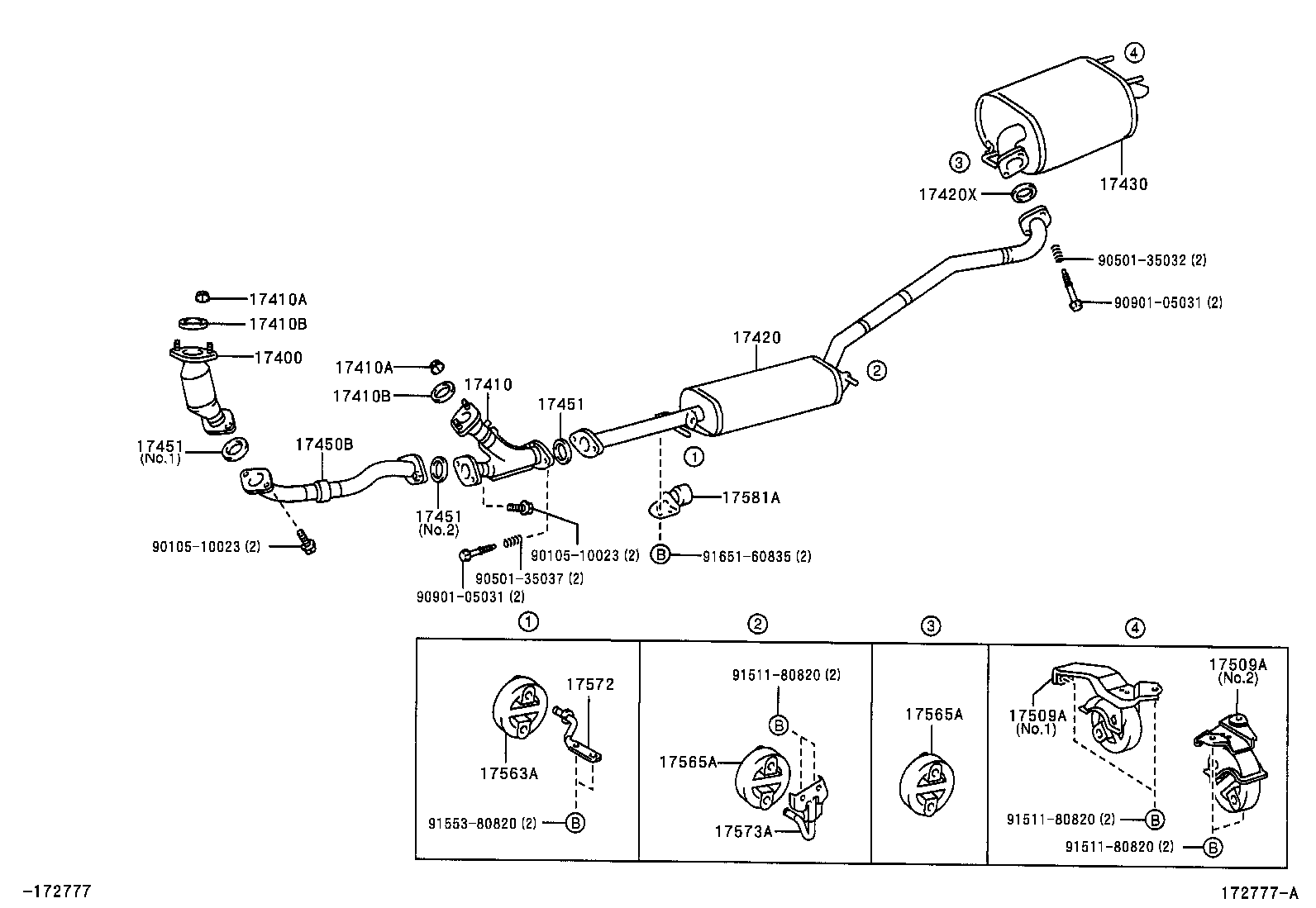

MCU20W-BWPGK (2000)
Toyota Kluger L/V
(0011-0308)1MZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-20210 |
1MZFE..MCU2# |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-20380 |
1MZFE..MCU2# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1MZFE..MCU2# |
4 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1MZFE..MCU2# |
4 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06075 |
1MZFE..MCU2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06075 |
1MZFE..MCU2# |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-20280 |
1MZFE..MCU2# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 17451-74060 |
2AZFE,1MZFE..ACU2#,MCU2# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17440-20170 |
1MZFE..MCU2# |
1 | ||
| 17450B - PIPE ASSY, EXHAUST, FRONT NO.2 | ||||
| 17450-20090 |
1MZFE..MCU2# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-20020 |
1MZFE..MCU2# ﾘﾔ |
1 | ||
| 90917-06078 |
1MZFE..MCU2# ﾌﾛﾝﾄ,NO.2 |
1 | ||
| 90917-06046 |
1MZFE..MCU2# ﾌﾛﾝﾄ,NO.1 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-20020 |
1MZFE..MCU2# ﾘﾔ |
1 | ||
| 90917-06078 |
1MZFE..MCU2# ﾌﾛﾝﾄ,NO.2 |
1 | ||
| 90917-06046 |
1MZFE..MCU2# ﾌﾛﾝﾄ,NO.1 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-20020 |
1MZFE..MCU2# ﾘﾔ |
1 | ||
| 90917-06078 |
1MZFE..MCU2# ﾌﾛﾝﾄ,NO.2 |
1 | ||
| 90917-06046 |
1MZFE..MCU2# ﾌﾛﾝﾄ,NO.1 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-20030 |
2AZFE,1MZFE..ACU2#,MCU2# NO.1 |
1 | ||
| 17509-20040 |
2AZFE,1MZFE..ACU2#,MCU2# NO.2 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-20030 |
2AZFE,1MZFE..ACU2#,MCU2# NO.1 |
1 | ||
| 17509-20040 |
2AZFE,1MZFE..ACU2#,MCU2# NO.2 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-15140 |
2AZFE,1MZFE..ACU2#,MCU2# |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-55050 |
2AZFE,1MZFE..ACU2#,MCU2# |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-55050 |
2AZFE,1MZFE..ACU2#,MCU2# |
2 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-20070 |
2AZFE,1MZFE..ACU2#,MCU2# |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-20030 |
2AZFE,1MZFE..ACU2#,MCU2# |
1 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-46010 |
1MZFE..MCU2# |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90501-35032 | ||||
| 90501-35037 | ||||
| 90901-05031 | ||||
| 91511-80820 | ||||
| 91553-80820 | ||||
| 91651-60835 | ||||
