ACU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)

Click highlighted areas on diagram

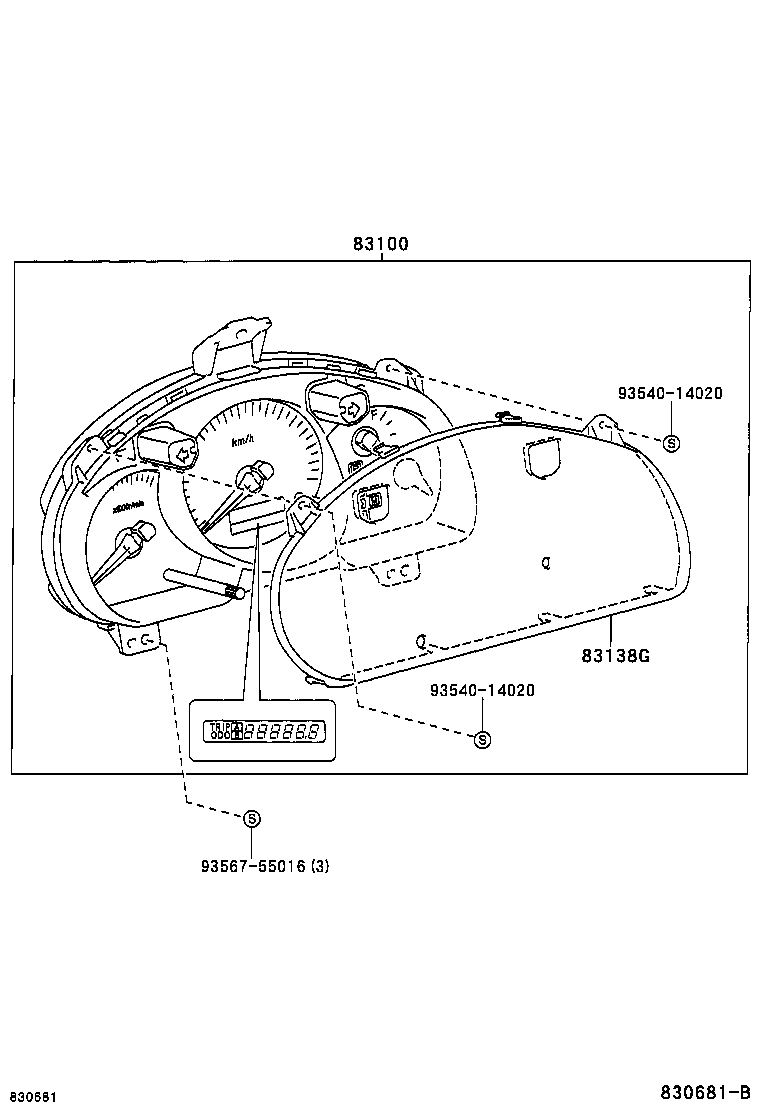

diagram 83100 83138G 9354014020 9354014020 9356755016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-48410

ACU2#

DENSO,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
83800-48090

ACU2#,MCU2#

DENSO

 1
83800-48420

ACU2#

DENSO,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
83800-48890

ACU2#

DENSO,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
83800-48080

ACU2#,MCU2#

DENSO,S ﾊﾟﾂｹ-ｼﾞ *(S)

 1
83800-48A00

ACU2#

DENSO,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
83138G - GLASS, COMBINATION METER
83852-48080

ACU2#,MCU2#

 1
83852-48080

ACU2#,MCU2#

 1
Common parts
93540-14020
93567-55016

(0308- )

Click highlighted areas on diagram

diagram 83100 83138G 9354014020 9354014020 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-48410

ACU2#

DENSO,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
83800-48090

ACU2#,MCU2#

DENSO

 1
83800-48420

ACU2#

DENSO,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
83800-48890

ACU2#

DENSO,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
83800-48080

ACU2#,MCU2#

DENSO,S ﾊﾟﾂｹ-ｼﾞ *(S)

 1
83800-48A00

ACU2#

DENSO,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
83138G - GLASS, COMBINATION METER
83852-48080

ACU2#,MCU2#

 1
83852-48080

ACU2#,MCU2#

 1
Common parts
93540-14020
93568-55016
