ACU25W-BWPGK (2000)
Toyota Kluger L/V
ILLUST NO. 1 OF 3(0011- )
ﾙ-ﾌ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-48040 |
ACU2#,MCU2# |
1 | ||
| 63105-48020 |
ACU2#,MCU2# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-48040 |
ACU2#,MCU2# |
1 | ||
| 63105-48020 |
ACU2#,MCU2# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-48100 |
ACU2#,MCU2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-48901 |
ACU2#,MCU2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-48090 |
ACU2#,MCU2# |
1 | ||
| 63111-48900 |
ACU2#,MCU2# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-48100 |
ACU2#,MCU2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-48901 |
ACU2#,MCU2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-48090 |
ACU2#,MCU2# |
1 | ||
| 63111-48900 |
ACU2#,MCU2# |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-48080 |
ACU2#,MCU2# |
1 | ||
| 63118-48060 |
ACU2#,MCU2# |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-48080 |
ACU2#,MCU2# |
1 | ||
| 63118-48060 |
ACU2#,MCU2# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-48901 |
ACU2#,MCU2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102-48900 |
ACU2#,MCU2# |
1 | ||
| 63102-48903 |
ACU2#,MCU2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63102-48902 |
ACU2#,MCU2# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-48901 |
ACU2#,MCU2# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102-48900 |
ACU2#,MCU2# |
1 | ||
| 63102-48903 |
ACU2#,MCU2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63102-48902 |
ACU2#,MCU2# |
1 | ||
| 63139 - BRACKET, DOME LAMP, NO.3 | ||||
| 63139-48010 |
ACU2#,MCU2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-48020 |
ACU2#,MCU2# |
1 | ||
| 63141-48030 |
ACU2#,MCU2# |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-48030 |
ACU2#,MCU2# |
1 | ||
| 63142-48010 |
ACU2#,MCU2# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-48030 |
ACU2#,MCU2# |
1 | ||
| 63143-48031 |
ACU2#,MCU2# |
1 | ||
| 63143-48031 |
ACU2#,MCU2# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-48030 |
ACU2#,MCU2# |
1 | ||
| 63143-48031 |
ACU2#,MCU2# |
1 | ||
| 63143-48031 |
ACU2#,MCU2# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-48020 |
ACU2#,MCU2# |
1 | ||
| 63144-48021 |
ACU2#,MCU2# |
1 | ||
| 63144-48021 |
ACU2#,MCU2# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-48020 |
ACU2#,MCU2# |
1 | ||
| 63144-48021 |
ACU2#,MCU2# |
1 | ||
| 63144-48021 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90901-19067 | ||||
| 90950-01894 | ||||
| 91511-60612 | ||||
| 91631-40610 | ||||

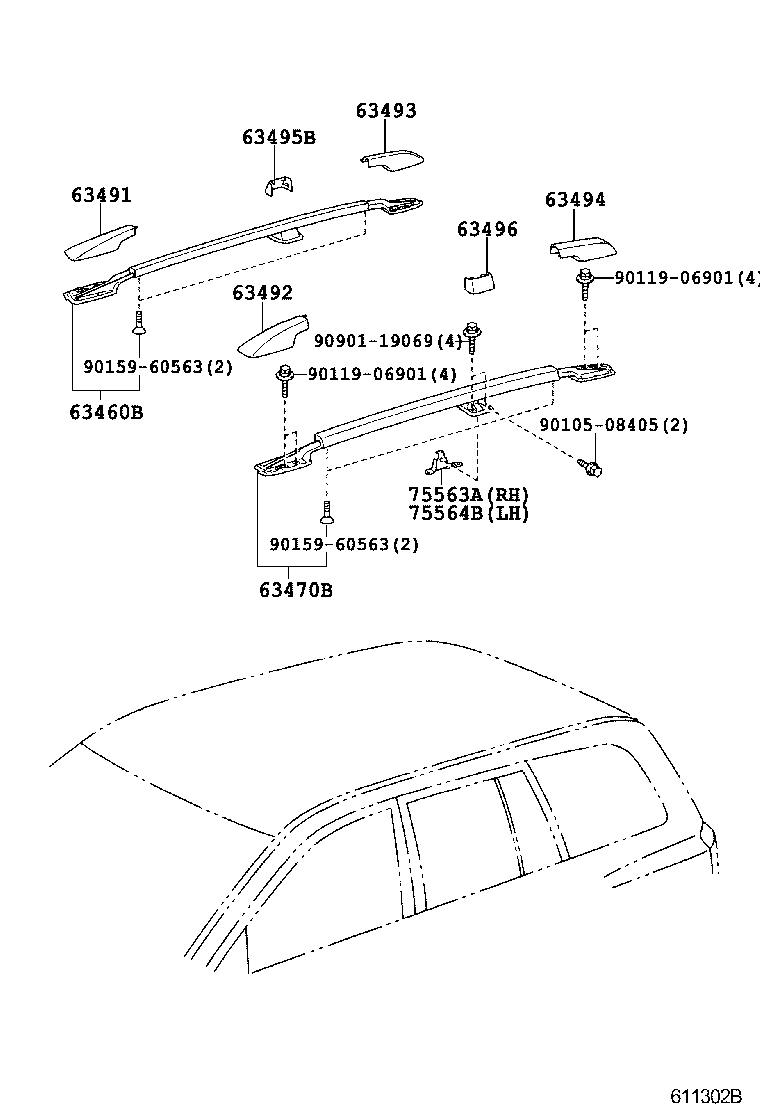

ILLUST NO. 3 OF 3(0011- )
ﾙ-ﾌ ﾚ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-48010 |
ACU2#,MCU2# |
1 | ||
| 63460-48010 |
ACU2#,MCU2# |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-48010 |
ACU2#,MCU2# |
1 | ||
| 63470-48010 |
ACU2#,MCU2# |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-48010 |
ACU2#,MCU2# |
1 | ||
| 63491-48010 |
ACU2#,MCU2# |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-48010 |
ACU2#,MCU2# |
1 | ||
| 63492-48010 |
ACU2#,MCU2# |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-48010 |
ACU2#,MCU2# |
1 | ||
| 63493-48010 |
ACU2#,MCU2# |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-48010 |
ACU2#,MCU2# |
1 | ||
| 63494-48010 |
ACU2#,MCU2# |
1 | ||
| 63495B - COVER, ROOF RACK LEG, CENTER RH | ||||
| 63495-48010 |
ACU2#,MCU2# |
1 | ||
| 63495-48010 |
ACU2#,MCU2# |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-48010 |
ACU2#,MCU2# |
1 | ||
| 63496-48010 |
ACU2#,MCU2# |
1 | ||
| 75563A - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75563-48020 |
ACU2#,MCU2# |
1 | ||
| 75563-48020 |
ACU2#,MCU2# |
1 | ||
| 75564B - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.2 | ||||
| 75564-48020 |
ACU2#,MCU2# |
1 | ||
| 75564-48020 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90105-08405 | ||||
| 90119-06901 | ||||
| 90159-60563 | ||||
| 90901-19069 | ||||

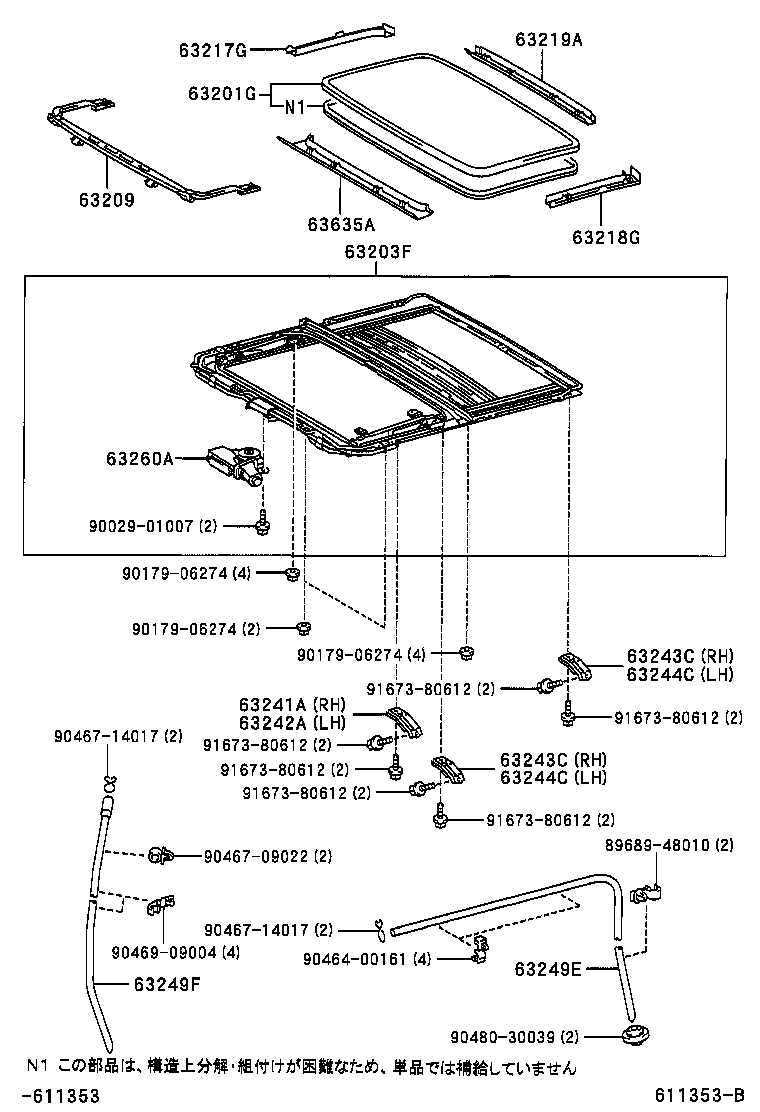

ILLUST NO. 2 OF 3(0011-0308)
ﾑ-ﾝ ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-48120 |
ACU2#,MCU2# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 63201-48121 |
ACU2#,MCU2# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 63201-48030 |
ACU2#,MCU2# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-48030 |
ACU2#,MCU2# |
1 | ||
| 63203-48090 |
ACU2#,MCU2# |
1 | ||
| 63203-48090 |
ACU2#,MCU2# |
1 | ||
| 63203-48090 |
ACU2#,MCU2# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-48040 |
ACU2#,MCU2# |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-48030 |
ACU2#,MCU2# |
1 | ||
| 63217-48010 |
ACU2#,MCU2# |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-48010 |
ACU2#,MCU2# |
1 | ||
| 63218-48030 |
ACU2#,MCU2# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-48010 |
ACU2#,MCU2# |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-48020 |
ACU2#,MCU2# |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-48020 |
ACU2#,MCU2# |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-48020 |
ACU2#,MCU2# |
2 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-48020 |
ACU2#,MCU2# |
2 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-48020 |
ACU2#,MCU2# |
2 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-48020 |
ACU2#,MCU2# |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63247-48020 |
ACU2#,MCU2# |
2 | ||
| 63247-48040 |
ACU2#,MCU2# |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-48020 |
ACU2#,MCU2# |
2 | ||
| 63249-48040 |
ACU2#,MCU2# |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-48080 |
ACU2#,MCU2# |
1 | ||
| 63260-48080 |
ACU2#,MCU2# |
1 | ||
| 63260-48030 |
ACU2#,MCU2# |
1 | ||
| 63260-48081 |
ACU2#,MCU2# |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-48010 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 89689-48010 | ||||
| 90029-01007 | ||||
| 90179-06274 | ||||
| 90464-00161 | ||||
| 90467-09022 | ||||
| 90467-14017 | ||||
| 90469-09004 | ||||
| 90480-30039 | ||||
| 91673-80612 | ||||
ILLUST NO. 2 OF 3(0308- )
ﾑ-ﾝ ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-48120 |
ACU2#,MCU2# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 63201-48121 |
ACU2#,MCU2# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 63201-48030 |
ACU2#,MCU2# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-48030 |
ACU2#,MCU2# |
1 | ||
| 63203-48090 |
ACU2#,MCU2# |
1 | ||
| 63203-48090 |
ACU2#,MCU2# |
1 | ||
| 63203-48090 |
ACU2#,MCU2# |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-48010 |
ACU2#,MCU2# |
1 | ||
| 63205-48010 |
ACU2#,MCU2# |
1 | ||
| 63205-21020 |
ACU2#,MCU2# |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-48030 |
ACU2#,MCU2# |
1 | ||
| 63217-48010 |
ACU2#,MCU2# |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-48010 |
ACU2#,MCU2# |
1 | ||
| 63218-48030 |
ACU2#,MCU2# |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63247-48020 |
ACU2#,MCU2# |
2 | ||
| 63247-48040 |
ACU2#,MCU2# |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63247-48020 |
ACU2#,MCU2# |
2 | ||
| 63247-48040 |
ACU2#,MCU2# |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-48020 |
ACU2#,MCU2# |
2 | ||
| 63249-48040 |
ACU2#,MCU2# |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-48020 |
ACU2#,MCU2# |
2 | ||
| 63249-48040 |
ACU2#,MCU2# |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-48080 |
ACU2#,MCU2# |
1 | ||
| 63260-48080 |
ACU2#,MCU2# |
1 | ||
| 63260-48030 |
ACU2#,MCU2# |
1 | ||
| 63260-48081 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 89689-48010 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90467-09022 | ||||
| 90467-10076 | ||||
| 90467-14017 | ||||
| 90469-09004 | ||||
| 90480-30039 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 6402 | ||||
