ACU25W-BWPGK (2000)
Toyota Kluger L/V

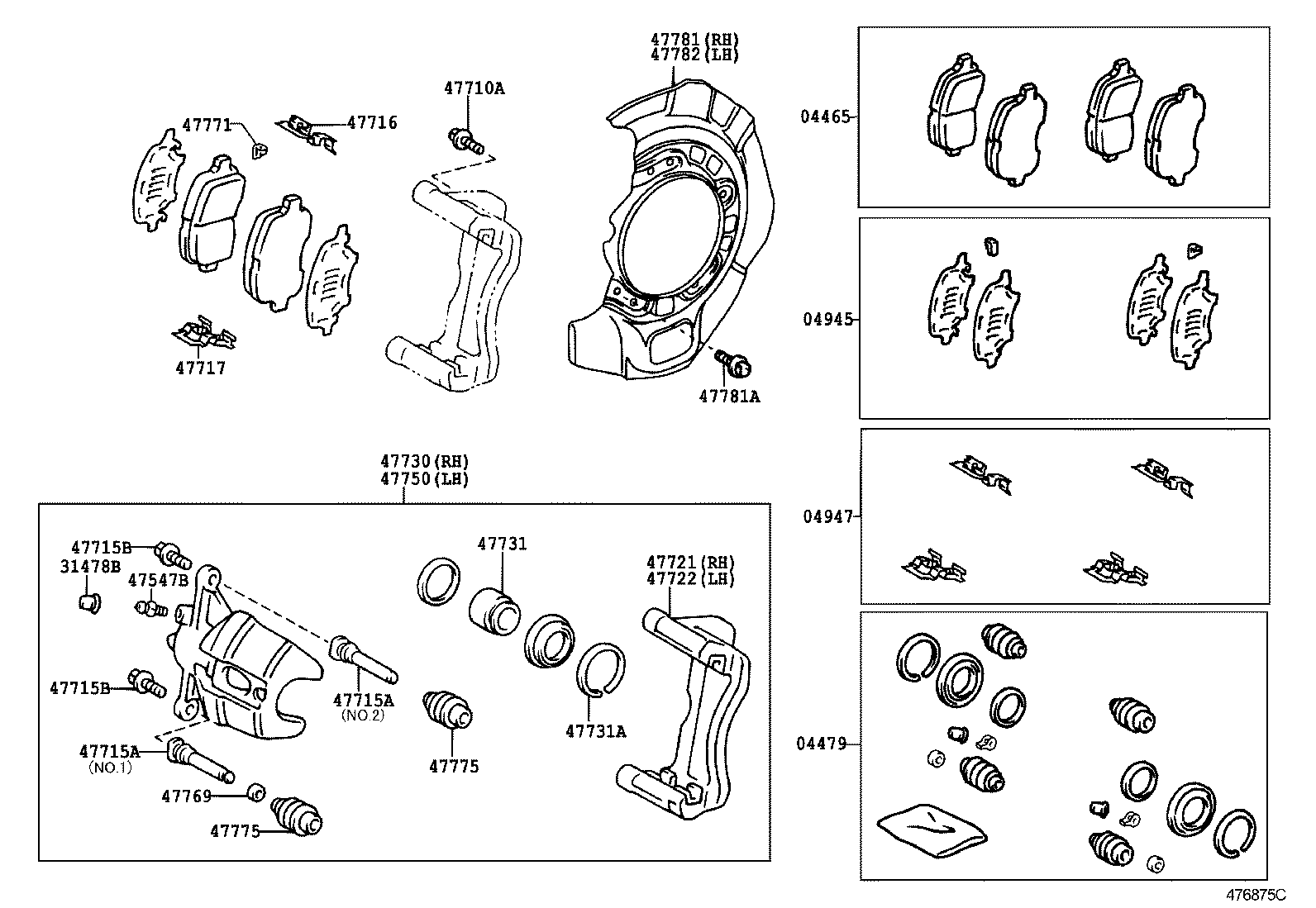

(0011-0307)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-48030 |
ACU2#,MCU2# ﾏｰｸ NBK PN529H |
1 | ||
| 04465-48030 |
ACU2#,MCU2# ﾏｰｸ NBK PN529H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-48020 |
ACU2#,MCU2# |
1 | ||
| 04479-48020 |
ACU2#,MCU2# |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-48130 |
ACU2#,MCU2# |
1 | ||
| 04945-48030 |
ACU2#,MCU2# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-48070 |
ACU2#,MCU2# |
1 | ||
| 04947-48060 |
ACU2#,MCU2# |
1 | ||
| 04947-48010 |
ACU2#,MCU2# |
1 | ||
| 04947-48060 |
ACU2#,MCU2# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
ACU2#,MCU2# |
2 | ||
| 31478-30010 |
ACU2#,MCU2# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ACU2#,MCU2# |
2 | ||
| 47547-20010 |
ACU2#,MCU2# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
ACU2#,MCU2# *12−1.25PX29.5−23 |
4 | ||
| 90105-12208 |
ACU2#,MCU2# *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47714-48050 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715-48050 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47715-48020 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47715-48050 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47714-48050 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715-48010 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47714-48050 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715-48050 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47715-48020 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47715-48050 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47714-48050 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715-48010 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACU2#,MCU2# |
4 | ||
| 90105-08346 |
ACU2#,MCU2# |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACU2#,MCU2# |
4 | ||
| 90105-08346 |
ACU2#,MCU2# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-48130 |
ACU2#,MCU2# |
4 | ||
| 47716-48010 |
ACU2#,MCU2# |
4 | ||
| 47716-48031 |
ACU2#,MCU2# |
2 | ||
| 47716-48031 |
ACU2#,MCU2# |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-48130 |
ACU2#,MCU2# |
4 | ||
| 47716-48010 |
ACU2#,MCU2# |
4 | ||
| 47716-48031 |
ACU2#,MCU2# |
2 | ||
| 47716-48031 |
ACU2#,MCU2# |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-48130 |
ACU2#,MCU2# |
4 | ||
| 47716-48010 |
ACU2#,MCU2# |
4 | ||
| 47716-48031 |
ACU2#,MCU2# |
2 | ||
| 47716-48031 |
ACU2#,MCU2# |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-48130 |
ACU2#,MCU2# |
4 | ||
| 47716-48010 |
ACU2#,MCU2# |
4 | ||
| 47716-48031 |
ACU2#,MCU2# |
2 | ||
| 47716-48031 |
ACU2#,MCU2# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-48031 |
ACU2#,MCU2# |
2 | ||
| 47716-48040 |
ACU2#,MCU2# |
4 | ||
| 47716-48140 |
ACU2#,MCU2# |
4 | ||
| 47717-48031 |
ACU2#,MCU2# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-48031 |
ACU2#,MCU2# |
2 | ||
| 47716-48040 |
ACU2#,MCU2# |
4 | ||
| 47716-48140 |
ACU2#,MCU2# |
4 | ||
| 47717-48031 |
ACU2#,MCU2# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-48031 |
ACU2#,MCU2# |
2 | ||
| 47716-48040 |
ACU2#,MCU2# |
4 | ||
| 47716-48140 |
ACU2#,MCU2# |
4 | ||
| 47717-48031 |
ACU2#,MCU2# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-48031 |
ACU2#,MCU2# |
2 | ||
| 47716-48040 |
ACU2#,MCU2# |
4 | ||
| 47716-48140 |
ACU2#,MCU2# |
4 | ||
| 47717-48031 |
ACU2#,MCU2# |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-48060 |
ACU2#,MCU2# |
1 | ||
| 47721-48130 |
ACU2#,MCU2# |
1 | ||
| 47721-48061 |
ACU2#,MCU2# |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-48130 |
ACU2#,MCU2# |
1 | ||
| 47721-48061 |
ACU2#,MCU2# |
1 | ||
| 47721-48060 |
ACU2#,MCU2# |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-48130 |
ACU2#,MCU2# |
1 | ||
| 47730-48060 |
ACU2#,MCU2# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-48030 |
ACU2#,MCU2# |
2 | ||
| 47731-48030 |
ACU2#,MCU2# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-67001 |
ACU2#,MCU2# |
2 | ||
| 90522-67001 |
ACU2#,MCU2# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-48060 |
ACU2#,MCU2# |
1 | ||
| 47750-48130 |
ACU2#,MCU2# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-33020 |
ACU2#,MCU2# |
2 | ||
| 47769-33020 |
ACU2#,MCU2# |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-48010 |
ACU2#,MCU2# |
2 | ||
| 47771-48010 |
ACU2#,MCU2# |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-48010 |
ACU2#,MCU2# |
4 | ||
| 47775-48010 |
ACU2#,MCU2# |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-48010 |
ACU2#,MCU2# |
4 | ||
| 47775-48010 |
ACU2#,MCU2# |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-48020 |
ACU2#,MCU2# |
1 | ||
| 47781-48020 |
ACU2#,MCU2# |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
ACU2#,MCU2# |
8 | ||
| 90119-06227 |
ACU2#,MCU2# |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-48020 |
ACU2#,MCU2# |
1 | ||
| 47782-48020 |
ACU2#,MCU2# |
1 | ||

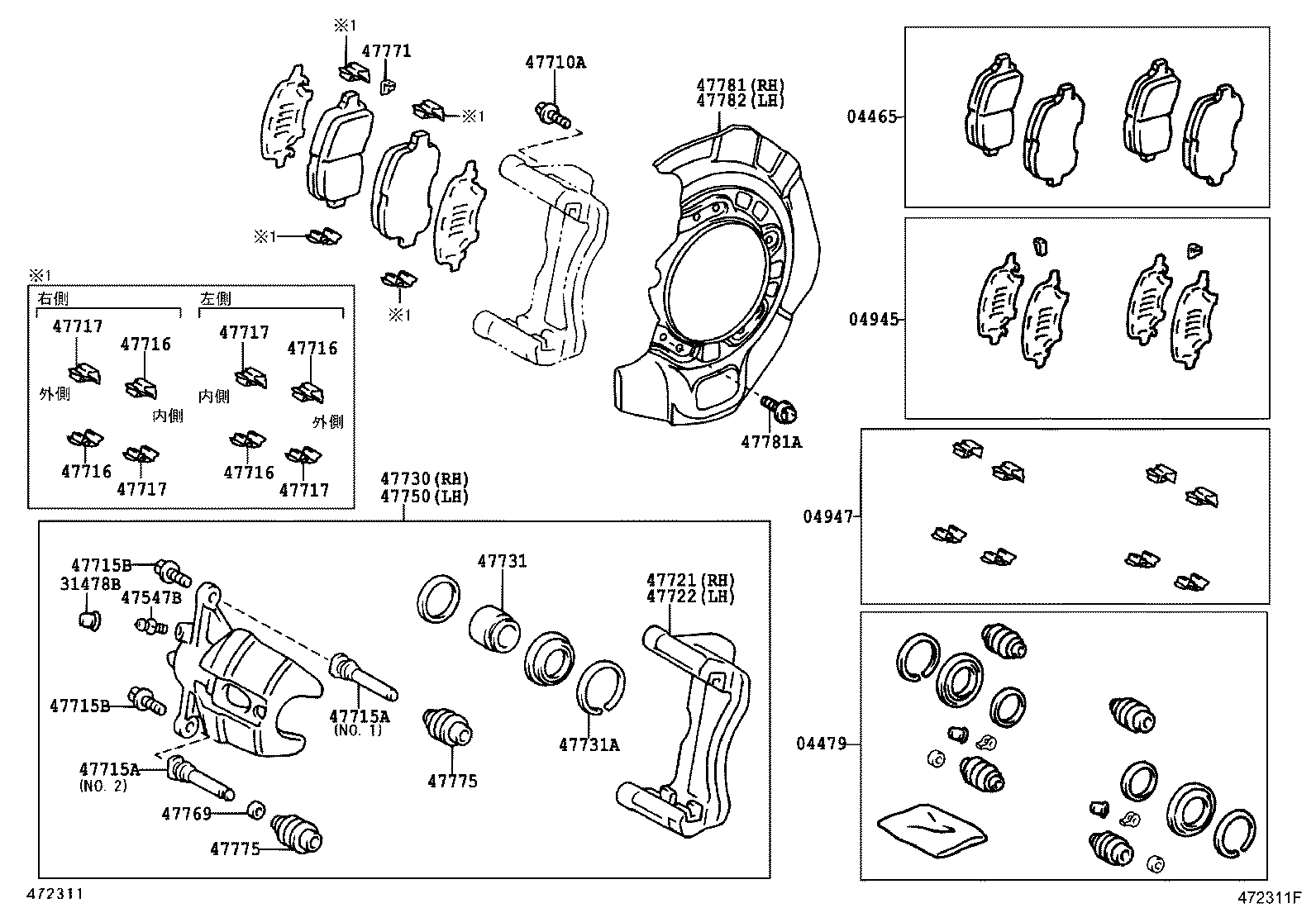

(0307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-48030 |
ACU2#,MCU2# ﾏｰｸ NBK PN529H |
1 | ||
| 04465-48030 |
ACU2#,MCU2# ﾏｰｸ NBK PN529H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-48020 |
ACU2#,MCU2# |
1 | ||
| 04479-48020 |
ACU2#,MCU2# |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-48130 |
ACU2#,MCU2# |
1 | ||
| 04945-48030 |
ACU2#,MCU2# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-48070 |
ACU2#,MCU2# |
1 | ||
| 04947-48060 |
ACU2#,MCU2# |
1 | ||
| 04947-48010 |
ACU2#,MCU2# |
1 | ||
| 04947-48060 |
ACU2#,MCU2# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
ACU2#,MCU2# |
2 | ||
| 31478-30010 |
ACU2#,MCU2# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ACU2#,MCU2# |
2 | ||
| 47547-20010 |
ACU2#,MCU2# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
ACU2#,MCU2# *12−1.25PX29.5−23 |
4 | ||
| 90105-12208 |
ACU2#,MCU2# *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47714-48050 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715-48050 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47715-48020 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47715-48050 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47714-48050 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715-48010 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47714-48050 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715-48050 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47715-48020 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47715-48050 |
ACU2#,MCU2# NO.2 |
2 | ||
| 47714-48050 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715-48010 |
ACU2#,MCU2# NO.1 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACU2#,MCU2# |
4 | ||
| 90105-08346 |
ACU2#,MCU2# |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACU2#,MCU2# |
4 | ||
| 90105-08346 |
ACU2#,MCU2# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-48130 |
ACU2#,MCU2# |
4 | ||
| 47716-48010 |
ACU2#,MCU2# |
4 | ||
| 47716-48031 |
ACU2#,MCU2# |
2 | ||
| 47716-48031 |
ACU2#,MCU2# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-48031 |
ACU2#,MCU2# |
2 | ||
| 47716-48040 |
ACU2#,MCU2# |
4 | ||
| 47716-48140 |
ACU2#,MCU2# |
4 | ||
| 47717-48031 |
ACU2#,MCU2# |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-48060 |
ACU2#,MCU2# |
1 | ||
| 47721-48130 |
ACU2#,MCU2# |
1 | ||
| 47721-48061 |
ACU2#,MCU2# |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-48130 |
ACU2#,MCU2# |
1 | ||
| 47721-48061 |
ACU2#,MCU2# |
1 | ||
| 47721-48060 |
ACU2#,MCU2# |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-48130 |
ACU2#,MCU2# |
1 | ||
| 47730-48060 |
ACU2#,MCU2# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-48030 |
ACU2#,MCU2# |
2 | ||
| 47731-48030 |
ACU2#,MCU2# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-67001 |
ACU2#,MCU2# |
2 | ||
| 90522-67001 |
ACU2#,MCU2# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-48060 |
ACU2#,MCU2# |
1 | ||
| 47750-48130 |
ACU2#,MCU2# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-33020 |
ACU2#,MCU2# |
2 | ||
| 47769-33020 |
ACU2#,MCU2# |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-48010 |
ACU2#,MCU2# |
2 | ||
| 47771-48010 |
ACU2#,MCU2# |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-48010 |
ACU2#,MCU2# |
4 | ||
| 47775-48010 |
ACU2#,MCU2# |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-48010 |
ACU2#,MCU2# |
4 | ||
| 47775-48010 |
ACU2#,MCU2# |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-48020 |
ACU2#,MCU2# |
1 | ||
| 47781-48020 |
ACU2#,MCU2# |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
ACU2#,MCU2# |
8 | ||
| 90119-06227 |
ACU2#,MCU2# |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-48020 |
ACU2#,MCU2# |
1 | ||
| 47782-48020 |
ACU2#,MCU2# |
1 | ||
