ACU20W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )05S

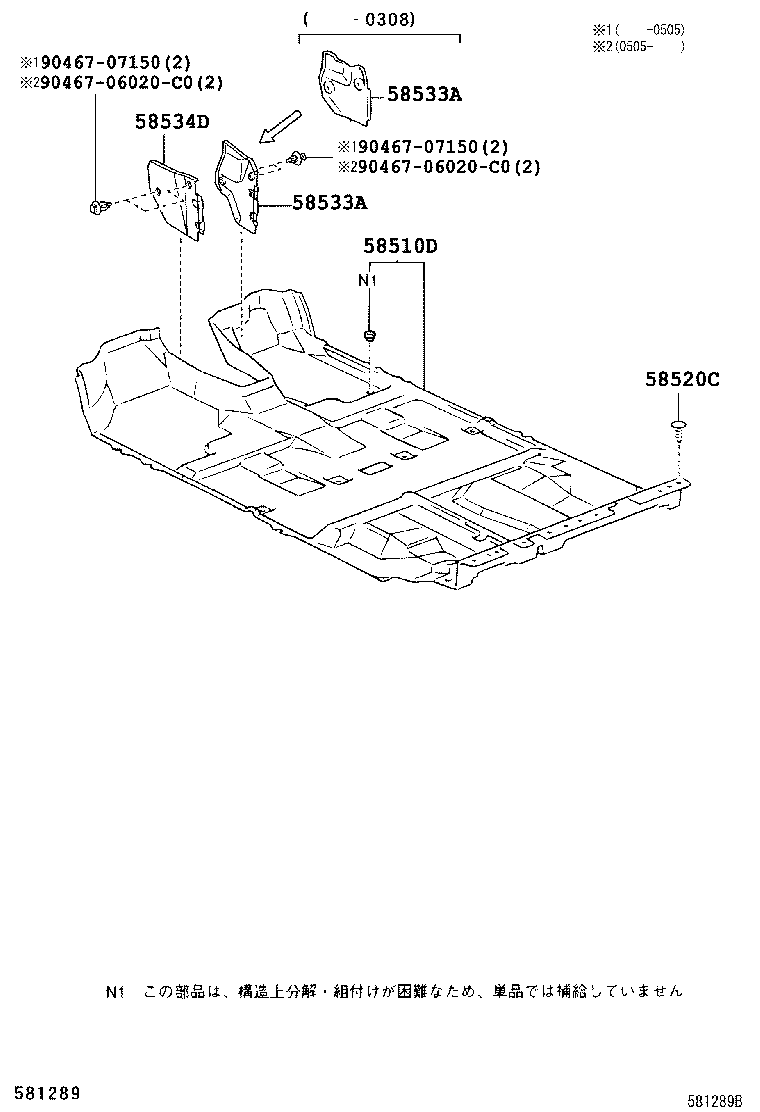

Click highlighted areas on diagram

diagram 58510D 58520C 58533A 58533A 58534D 9046706020C0 9046706020C0 9046707150 9046707150
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-48100C0

ACU2#,MCU2#..05S

BLACK,TRIM2#

 1
58510-48051B1

ACU2#,MCU2#

SHADOW GRAY,TRIM15

 1
58510-48101B0

ACU2#,MCU2#..05S

LT.GRAY,TRIM1#

 1
58510-48100B0

ACU2#,MCU2#..05S

LT.GRAY,TRIM1#

 1
58510-48050B1

ACU2#,MCU2#

SHADOW GRAY,TRIM15

 1
58510-48051B0

ACU2#,MCU2#

MEDIUM CHARCOAL,TRIM14

 1
58510-48050B0

ACU2#,MCU2#

MEDIUM CHARCOAL,TRIM14

 1
58510-48101C0

ACU2#,MCU2#..05S

BLACK,TRIM2#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

ACU2#,MCU2#

BLACK,TRIM14,15

 3
90467-07049C0

ACU2#,MCU2#

BLACK,TRIM2#

 3
90467-07049C0

ACU2#,MCU2#

BLACK,TRIM14,15

 3
90467-07049P6

ACU2#,MCU2#

GRAY,TRIM1#

 3
58533A - COVER, FLOOR CARPET, CENTER RH
58533-48040B1

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 1
58533-48040B0

ACU2#,MCU2#

SHADOW GRAY,TRIM15

 1
58533-48050C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
58533-48050B1

ACU2#,MCU2#

NEW GRAY,TRIM1#

 1
58533A - COVER, FLOOR CARPET, CENTER RH
58533-48040B1

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 1
58533-48040B0

ACU2#,MCU2#

SHADOW GRAY,TRIM15

 1
58533-48050C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
58533-48050B1

ACU2#,MCU2#

NEW GRAY,TRIM1#

 1
58534D - COVER, FLOOR CARPET, CENTER LH
58534-48040C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
58534-48040B0

ACU2#,MCU2#

SHADOW GRAY,TRIM15

 1
58534-48040B3

ACU2#,MCU2#

NEW GRAY,TRIM1#

 1
58534-48040B1

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 1
Common parts
90467-06020C0
90467-07150
