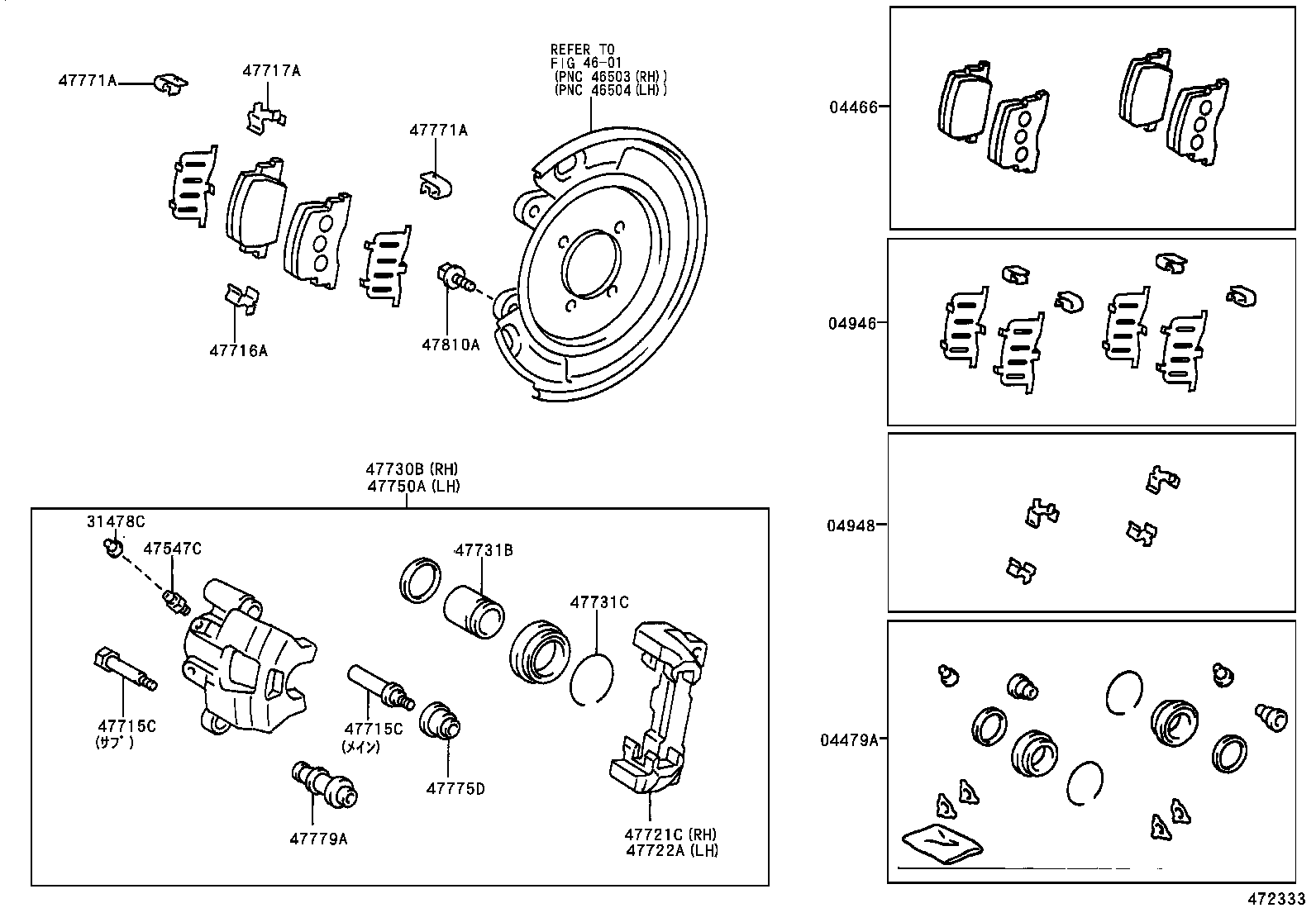

ACU20W-BWPGK (2000)
Toyota Kluger L/V
(0011-0308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-48060 |
ACU2#,MCU2# ﾏｰｸ AK PA561 |
1 | ||
| 04466-48020 |
ACU2#,MCU2# ﾏｰｸ AK PA544 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-48110 |
ACU2#,MCU2# |
1 | ||
| 04479-48030 |
ACU2#,MCU2# |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-48060 |
ACU2#,MCU2# |
1 | ||
| 04946-48010 |
ACU2#,MCU2# |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-48020 |
ACU2#,MCU2# |
1 | ||
| 04948-48010 |
ACU2#,MCU2# |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ACU2#,MCU2# |
2 | ||
| 31478-30010 |
ACU2#,MCU2# |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ACU2#,MCU2# |
2 | ||
| 47547-20010 |
ACU2#,MCU2# |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-32020 |
ACU2#,MCU2# ｻﾌﾞ |
2 | ||
| 47715-32030 |
ACU2#,MCU2# ﾒｲﾝ |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-32020 |
ACU2#,MCU2# ｻﾌﾞ |
2 | ||
| 47715-32030 |
ACU2#,MCU2# ﾒｲﾝ |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-48020 |
ACU2#,MCU2# |
2 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-48020 |
ACU2#,MCU2# |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-48030 |
ACU20,MCU20 |
1 | ||
| 47821-48050 |
ACU2#,MCU2# |
1 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-48050 |
ACU2#,MCU2# |
1 | ||
| 47721-48030 |
ACU20,MCU20 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-48040 |
ACU20,MCU20 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-20220 |
ACU2#,MCU2# |
2 | ||
| 47731-48020 |
ACU2#,MCU2# |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90520-52006 |
ACU2#,MCU2# |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-48040 |
ACU20,MCU20 |
1 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-32030 |
ACU2#,MCU2# |
2 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-32030 |
ACU2#,MCU2# |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-41030 |
ACU2#,MCU2# |
4 | ||
| 47775-32050 |
ACU2#,MCU2# |
2 | ||
| 47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47779-32030 |
ACU2#,MCU2# |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
ACU2#,MCU2# |
4 | ||
| 90119-10379 |
ACU20,MCU20 |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
(0308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-48060 |
ACU2#,MCU2# ﾏｰｸ AK PA561 |
1 | ||
| 04466-48020 |
ACU2#,MCU2# ﾏｰｸ AK PA544 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-48110 |
ACU2#,MCU2# |
1 | ||
| 04479-48030 |
ACU2#,MCU2# |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-48060 |
ACU2#,MCU2# |
1 | ||
| 04946-48010 |
ACU2#,MCU2# |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-48020 |
ACU2#,MCU2# |
1 | ||
| 04948-48010 |
ACU2#,MCU2# |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ACU2#,MCU2# |
2 | ||
| 31478-30010 |
ACU2#,MCU2# |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ACU2#,MCU2# |
2 | ||
| 47547-20010 |
ACU2#,MCU2# |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-48030 |
ACU20,MCU20 |
1 | ||
| 47821-48050 |
ACU2#,MCU2# |
1 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-48050 |
ACU2#,MCU2# |
1 | ||
| 47721-48030 |
ACU20,MCU20 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-20220 |
ACU2#,MCU2# |
2 | ||
| 47731-48020 |
ACU2#,MCU2# |
2 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-33020 |
ACU2#,MCU2# |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-41030 |
ACU2#,MCU2# |
4 | ||
| 47775-32050 |
ACU2#,MCU2# |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-41030 |
ACU2#,MCU2# |
4 | ||
| 47775-32050 |
ACU2#,MCU2# |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
ACU2#,MCU2# |
4 | ||
| 90119-10379 |
ACU20,MCU20 |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-48050 |
ACU2#,MCU2# |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-48050 |
ACU2#,MCU2# |
2 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47816-48050 |
ACU2#,MCU2# |
2 | ||
| 47817 - PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE) | ||||
| 47817-48050 |
ACU2#,MCU2# |
2 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-48070 |
ACU2#,MCU2# |
1 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-48070 |
ACU2#,MCU2# |
1 | ||
