ACU20W-BRPGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

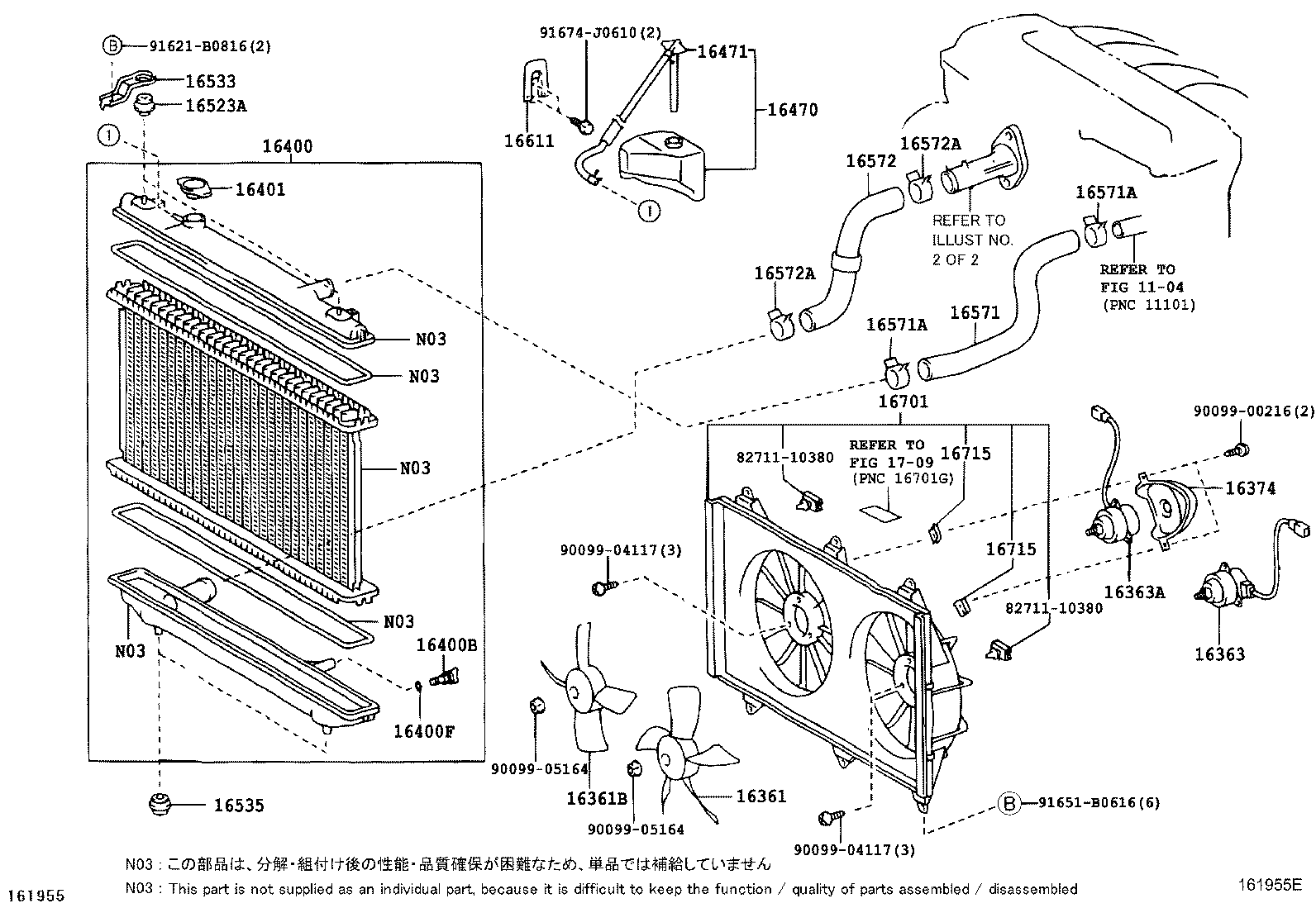

ILLUST NO. 1 OF 2(0308- )2AZFE

Click highlighted areas on diagram

diagram 1104 16361 16361B 16363 16363A 16374 16400 16400B 16400F 16401 16470 16471 16523A 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16611 16701 16715 16715 1709 8271110380 8271110380 9009900216 9009904117 9009904117 9009905164 9009905164 91621B0816 91651B0616 91674J0610
Part # Description Qty Price
16361 - FAN
16361-74140

2AZFE..ACU2#

 1
16361-74140

2AZFE..ACU2#

 1
16361B - FAN, NO.2
88453-33010

2AZFE..ACU2#

 1
88453-33010

2AZFE..ACU2#

 1
16363 - MOTOR, COOLING FAN
16363-74280

2AZFE..ACU2#

 1
16363-74280

2AZFE..ACU2#

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-74290

2AZFE..ACU2#

 1
16363-74290

2AZFE..ACU2#

 1
16374 - INSULATOR, COOLING FAN MOTOR
16366-28130

2AZFE..ACU2#

 1
16366-28130

2AZFE..ACU2#

 1
16400 - RADIATOR ASSY
16400-28250

2AZFE..ACU2#

 1
16400-28250

2AZFE..ACU2#

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

2AZFE..ACU2#

 1
23322-54010

2AZFE..ACU2#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

2AZFE..ACU2#

 1
16492-21050

2AZFE..ACU2#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-62100

2AZFE..ACU2#

 1
16401-62100

2AZFE..ACU2#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-20070

2AZFE..ACU2#

 1
16470-20100

2AZFE..ACU2#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-20090

2AZFE..ACU2#

 1
16405-20050

2AZFE..ACU2#

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-74010

2AZFE..ACU2#

 2
16523-74010

2AZFE..ACU2#

 2
16533 - SUPPORT, RADIATOR, UPPER
16533-20010

2AZFE..ACU2#

 2
16533-20010

2AZFE..ACU2#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-74210

2AZFE..ACU2#

 2
16535-74210

2AZFE..ACU2#

 2
16571 - HOSE, RADIATOR, INLET
16571-28210

2AZFE..ACU2#

 1
16571-28110

2AZFE..ACU2#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37006

2AZFE..ACU2#

 2
90466-35001

2AZFE..ACU2#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37006

2AZFE..ACU2#

 2
90466-35001

2AZFE..ACU2#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-28070

2AZFE..ACU2#

 1
16572-28070

2AZFE..ACU2#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37006

2AZFE..ACU2#

 2
90466-35001

2AZFE..ACU2#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37006

2AZFE..ACU2#

 2
90466-35001

2AZFE..ACU2#

 2
16611 - BRACKET, RADIATOR RESERVE TANK
16611-74170

2AZFE..ACU2#

 1
16611-74170

2AZFE..ACU2#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-28190

2AZFE..ACU2#

 1
16711-28190

2AZFE..ACU2#

 1
16715 - BRACKET, FAN SHROUD
88688-18030

2AZFE..ACU2#

 2
88688-18030

2AZFE..ACU2#

 2
16715 - BRACKET, FAN SHROUD
88688-18030

2AZFE..ACU2#

 2
88688-18030

2AZFE..ACU2#

 2
Common parts
82711-10380
90099-00216
90099-04117
90099-05164
91621-B0816
91651-B0616
91674-J0610
