MHU28W-BRXGK (2005)

Toyota Kluger Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

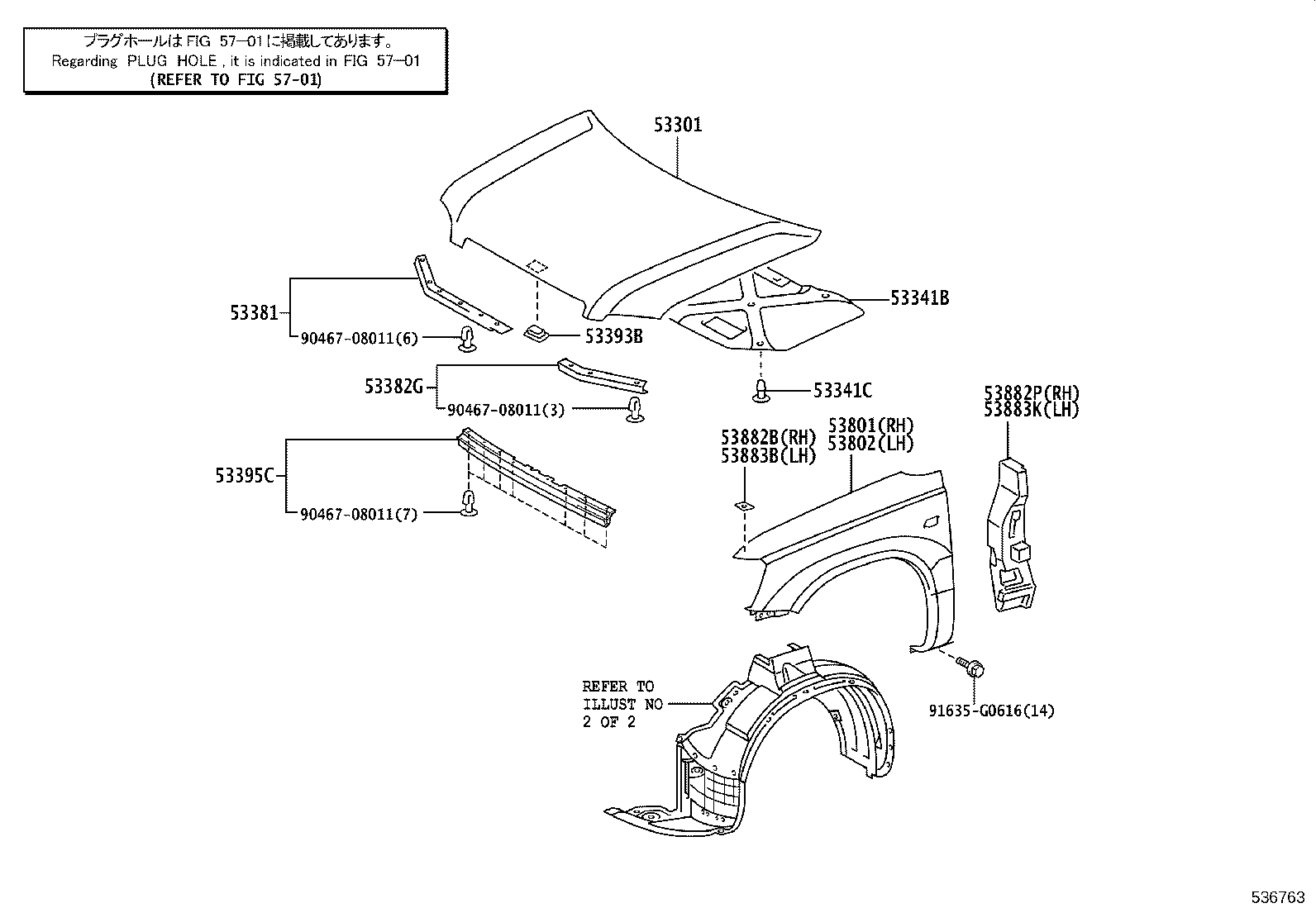

ILLUST NO. 1 OF 2(0503- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53382G 53393B 53395C 53801 53802 53882B 53882P 53883B 53883K 5701 9046708011 9046708011 9046708011 91635G0616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-48080

MHU28

 1
53341B - INSULATOR, HOOD
53341-48020

MHU28

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

MHU28

 8
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-48040

MHU28

 1
53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH
53382-48040

MHU28

 1
53393B - PROTECTOR, HOOD, FRONT
53393-48020

MHU28

 1
53395C - SEAL, HOOD TO RADIATOR GRILLE
53395-48010

MHU28

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-48050

MHU28

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-48060

MHU28

 1
53882B - SEAL, FRONT FENDER, RH
53882-16030

MHU28

 3
53882P - SEAL, FRONT FENDER, RH
53882-48010

MHU28

 1
53883B - SEAL, FRONT FENDER, LH
53882-16030

MHU28

 3
53883K - SEAL, FRONT FENDER, LH
53883-48010

MHU28

 1
Common parts
90467-08011
91635-G0616
Linked diagrams
5701

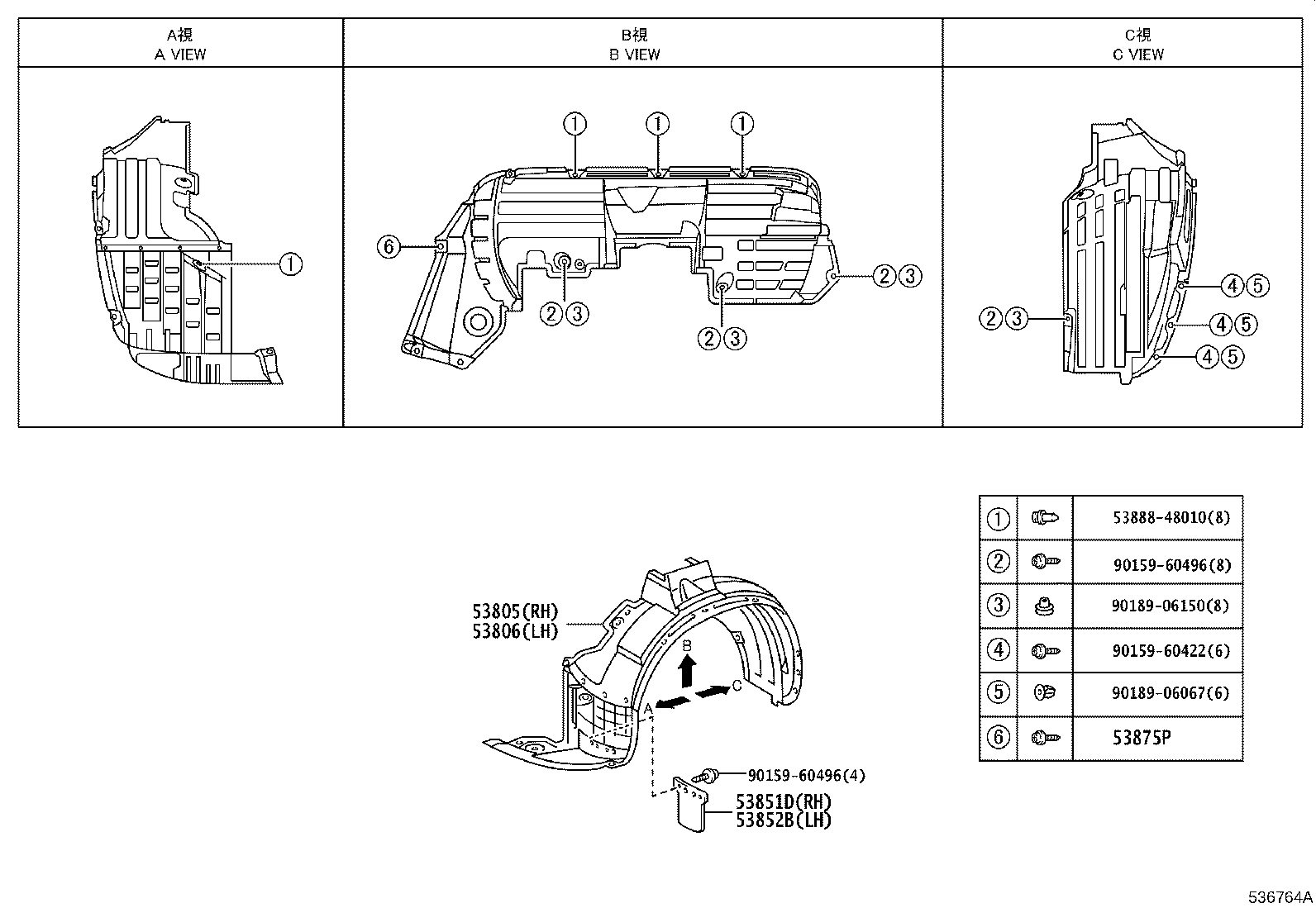

ILLUST NO. 2 OF 2(0503- )

Click highlighted areas on diagram

ﾌｴﾝﾀﾞﾗｲﾅ

diagram 53805 53806 53851D 53852B 53875P 5388848010 9015960422 9015960496 9015960496 9018906067 9018906150
Part # Description Qty Price
53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53805-48051

MHU28

 1
53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53806-48051

MHU28

 1
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-48031

MHU28

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-48031

MHU28

 1
53875P - SCREW, NO.1
90159-60444

MHU28

 2
Common parts
53888-48010
90159-60422
90159-60496
90189-06067
90189-06150
