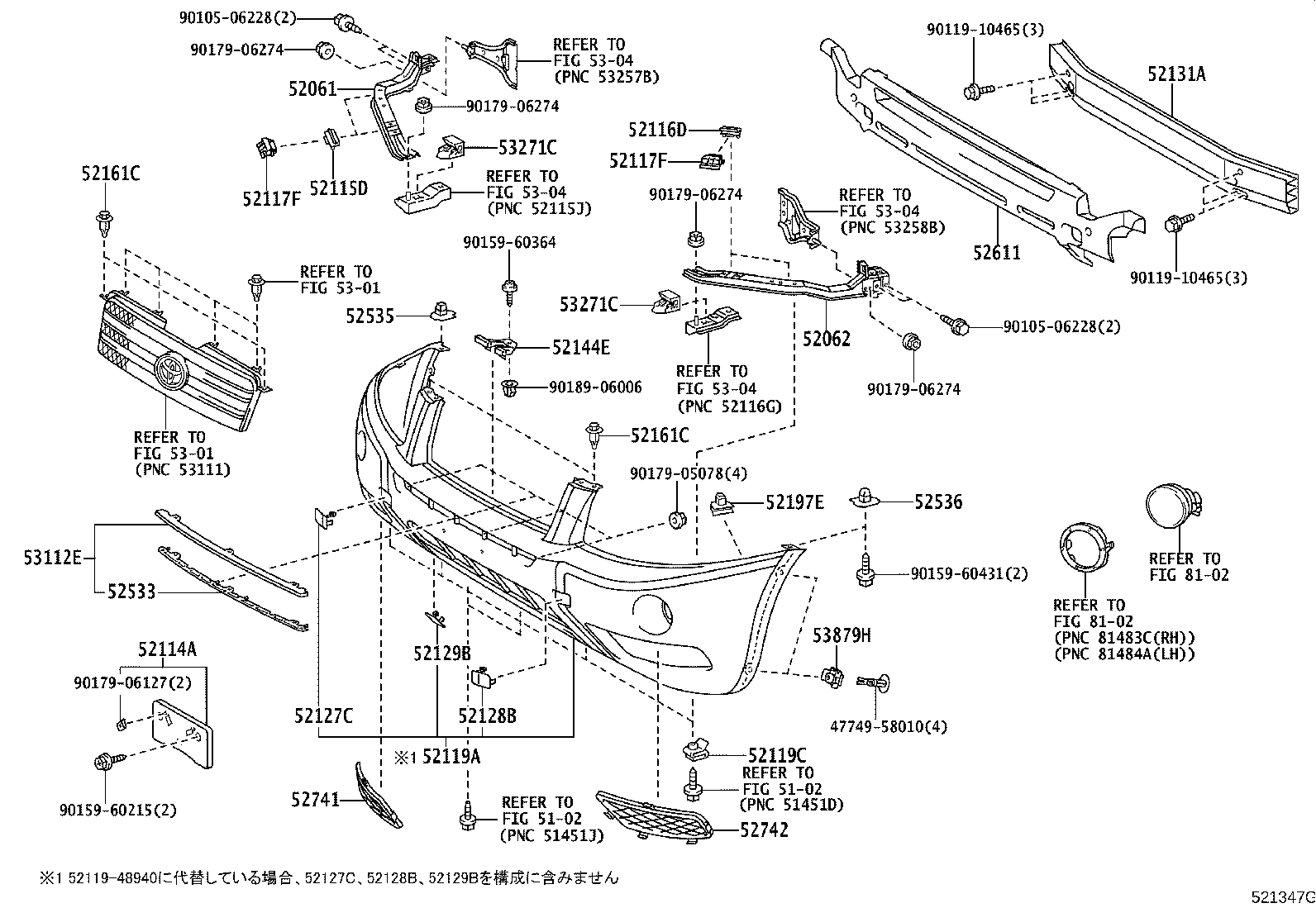

MHU28W-BRXGK (2005)
Toyota Kluger Hv
(0503- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52061 - SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH | ||||
| 52061-48010 |
MHU28 |
1 | ||
| 52062 - SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH | ||||
| 52062-48010 |
MHU28 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48120 |
MHU28 |
1 | ||
| 52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH | ||||
| 52115-48040 |
MHU28 |
2 | ||
| 52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH | ||||
| 52115-48040 |
MHU28 |
2 | ||
| 52117F - SUPPORT, FRONT BUMPER, UPPER | ||||
| 52117-48010 |
MHU28 |
2 | ||
| 52117F - SUPPORT, FRONT BUMPER, UPPER | ||||
| 52117-48010 |
MHU28 |
2 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-48250E0 |
MHU28 LT.BROWN M.M.,4S5 |
1 | ||
| 52119-48250B0 |
MHU28 SILVER ME.,1C0 |
1 | ||
| 52119-48250G0 |
MHU28 LT.OLIVE M.M.,6T1 |
1 | ||
| 52119-48250C0 |
MHU28 BLACK,202 |
1 | ||
| 52119-48250E1 |
MHU28 COPPER BROWN MC.,4S6 |
1 | ||
| 52119-48250A0 |
MHU28 WHITE PEARL CS.,062 |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
MHU28 |
4 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-48050C0 |
MHU28 BLACK,202 |
1 | ||
| 52127-48050E2 |
MHU28 COPPER BROWN MC.,4S6 |
1 | ||
| 52127-48050A1 |
MHU28 WHITE PEARL CS.,062 |
1 | ||
| 52127-48050G1 |
MHU28 LT.OLIVE M.M.,6T1 |
1 | ||
| 52127-48050E1 |
MHU28 LT.BROWN M.M.,4S5 |
1 | ||
| 52127-48050B0 |
MHU28 SILVER ME.,1C0 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-48030C0 |
MHU28 BLACK,202 |
1 | ||
| 52128-48030E2 |
MHU28 COPPER BROWN MC.,4S6 |
1 | ||
| 52128-48030B0 |
MHU28 SILVER ME.,1C0 |
1 | ||
| 52128-48030E1 |
MHU28 LT.BROWN M.M.,4S5 |
1 | ||
| 52128-48030G1 |
MHU28 LT.OLIVE M.M.,6T1 |
1 | ||
| 52128-48030A1 |
MHU28 WHITE PEARL CS.,062 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-48010E1 |
MHU28 LT.BROWN M.M.,4S5 |
1 | ||
| 52129-48010C0 |
MHU28 BLACK,202 |
1 | ||
| 52129-48010B0 |
MHU28 SILVER ME.,1C0 |
1 | ||
| 52129-48010A1 |
MHU28 WHITE PEARL CS.,062 |
1 | ||
| 52129-48010G1 |
MHU28 LT.OLIVE M.M.,6T1 |
1 | ||
| 52129-48010E2 |
MHU28 COPPER BROWN MC.,4S6 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-48051 |
MHU28 |
1 | ||
| 52144E - STAY, FRONT BUMPER, CENTER | ||||
| 52144-48010 |
MHU28 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
MHU28 |
4 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
MHU28 |
4 | ||
| 52197E - BRACKET, FRONT BUMPER SEAL | ||||
| 52197-52010 |
MHU28 |
2 | ||
| 52533 - BRACKET, FRONT BUMPER RETAINER, NO.1 | ||||
| 52533-48010 |
MHU28 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48020 |
MHU28 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-48020 |
MHU28 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-48070 |
MHU28 |
1 | ||
| 52741 - GARNISH, FRONT BUMPER BAR, NO.1 | ||||
| 52741-48020 |
MHU28 塗装不要 |
1 | ||
| 52742 - GARNISH, FRONT BUMPER BAR, NO.2 | ||||
| 52742-48020 |
MHU28 塗装不要 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-48020 |
MHU28 塗装不要 |
1 | ||
| 53271C - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-12060 |
MHU28 |
2 | ||
| 53271C - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-12060 |
MHU28 |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
MHU28 |
4 | ||
| Common parts | ||||
| 47749-58010 | ||||
| 90105-06228 | ||||
| 90119-10465 | ||||
| 90159-60215 | ||||
| 90159-60364 | ||||
| 90159-60431 | ||||
| 90179-05078 | ||||
| 90179-06127 | ||||
| 90179-06274 | ||||
| 90189-06006 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5304 | ||||
| 8102 | ||||
