NTP10-AHXGN (2017)

Toyota Jpn Taxi

Production Oct 2017 - Sep 9999
Engine 1NZFXP
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

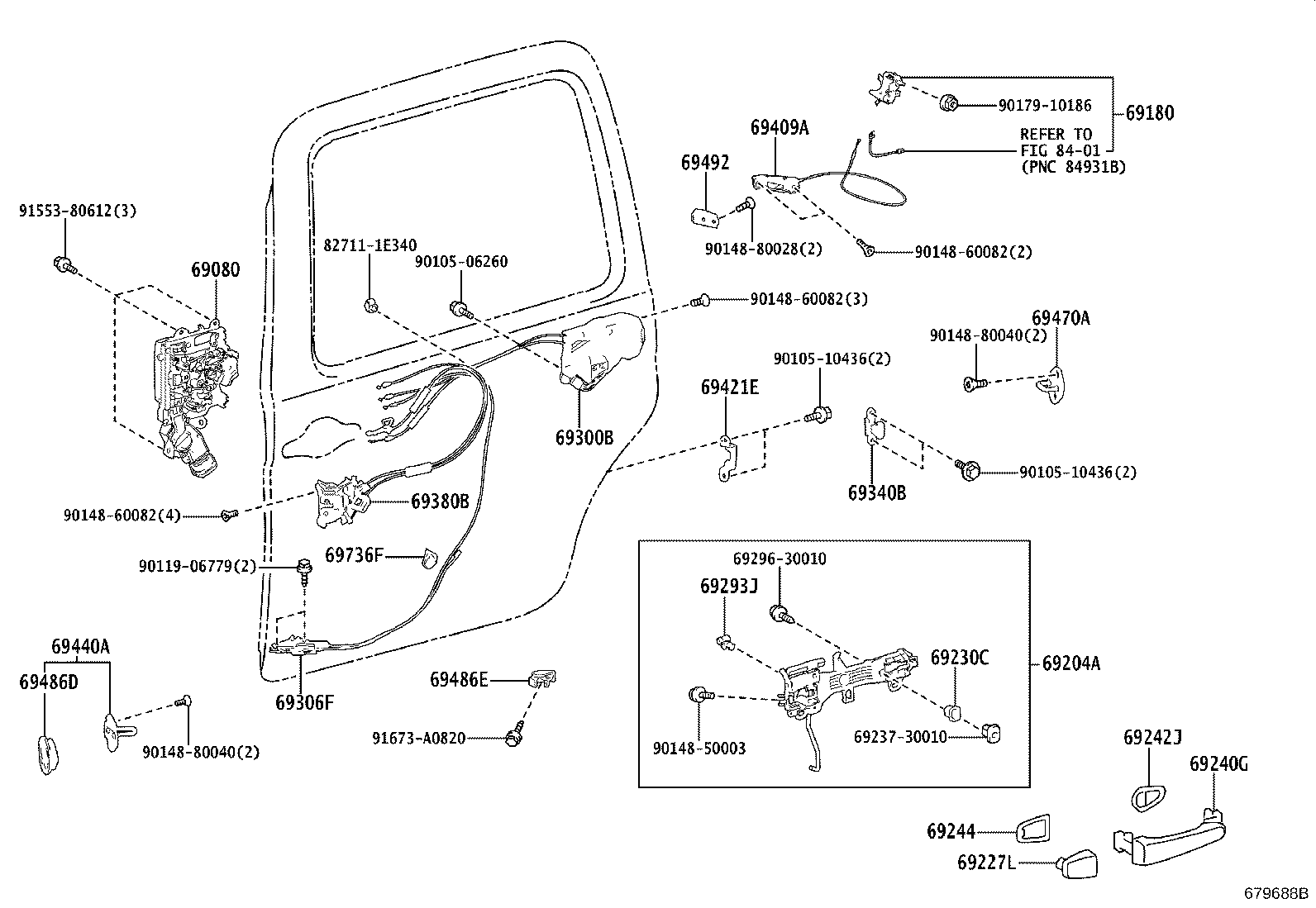

ILLUST NO. 2 OF 2(1710- )

Click highlighted areas on diagram

ﾋﾀﾞﾘｶﾞﾜ

diagram 69080 69180 69204A 69227L 69230C 6923730010 69240G 69242J 69244 69293J 6929630010 69300B 69306F 69340B 69380B 69409A 69421E 69440A 69470A 69486D 69486E 69492 69736F 827111E340 8401 9010506260 9010510436 9010510436 9011906779 9014850003 9014860082 9014860082 9014860082 9014880028 9014880040 9014880040 9017910186 9155380612 91673A0820
Part # Description Qty Price
69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH
69080-15010E0

NTP10..TAKUM

KURO KOHAKU,TRIM4#

 1
69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69180-15010

NTP10

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-15010

NTP10

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69217-52081

NTP10..TAKUM

*CR

 1
69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE)
69239-30010

NTP10

 1
69240G - HANDLE ASSY, SLIDE DOOR, OUTSIDE LH
69213-58060

NTP10..TAKUM

*CR

 1
69242J - PAD, REAR DOOR OUTSIDE HANDLE, REAR LH
69241-52020

NTP10

 1
69244 - PAD, REAR DOOR OUTSIDE HANDLE, LH
69242-52030

NTP10

 1
69293J - SNAP, REAR DOOR OUTSIDE HANDLE, LH
69293-28040

NTP10

 1
69300B - LOCK ASSY, POWER SLIDE DOOR, LH
69300-15011

NTP10

 1
69306F - LOCK SUB-ASSY, REAR DOOR, LH
69306-15010

NTP10

 1
69306-15011

NTP10

 1
69340B - LOCK ASSY, SLIDE DOOR, LH
69320-15010

NTP10

 1
69380B - LOCK ASSY, SLIDE DOOR, FRONT LH
69380-15010

NTP10

 1
69409A - STOPPER SUB-ASSY, SLIDE DOOR HALF OPEN
69409-15010

NTP10

 1
69421E - CATCH, DOOR LOCK STRIKER PLATE, LH
69421-15010

NTP10

 1
69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69407-15010

NTP10

 1
69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69470-28120

NTP10

 1
69486D - COVER, SLIDE DOOR FRONT LOCK STRIKER
69486-15020

NTP10

 1
69486E - STRIKER, SLIDE DOOR OPEN, LH
69486-15010

NTP10

 1
69492 - STOPPER, SLIDE DOOR HALF OPEN
69492-52020

NTP10

 1
69736F - GUIDE, SLIDE DOOR LOCKING LINK
69736-15010

NTP10

 1
Common parts
69237-30010
69296-30010
82711-1E340
90105-06260
90105-10436
90119-06779
90148-50003
90148-60082
90148-80028
90148-80040
90179-10186
91553-80612
91673-A0820
Linked diagrams
8401

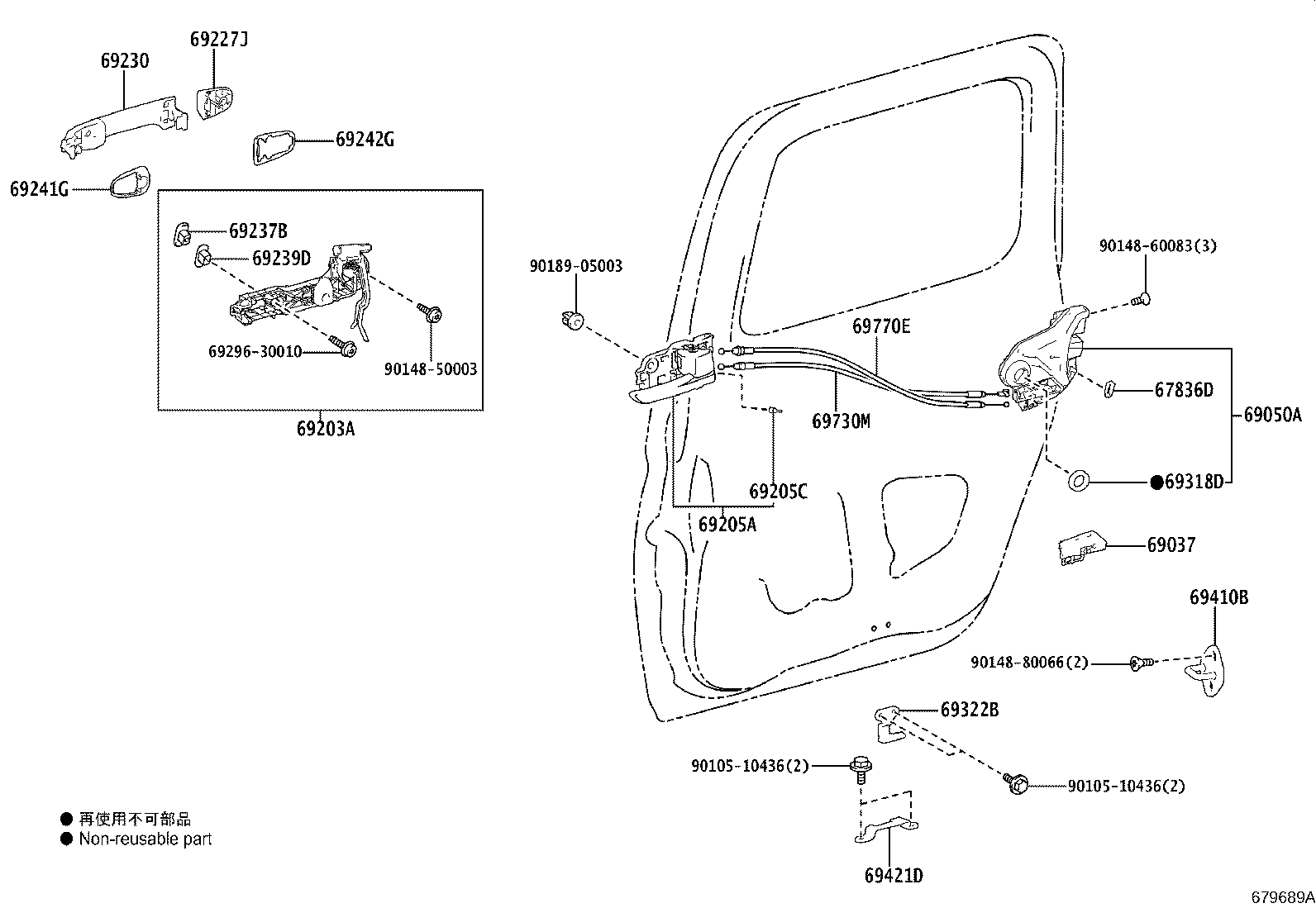

ILLUST NO. 1 OF 2(1710- )

Click highlighted areas on diagram

ﾐｷﾞｶﾞﾜ

diagram 67836D 69037 69050A 69203A 69205A 69205C 69227J 69230 69237B 69239D 69241G 69242G 6929630010 69318D 69322B 69410B 69421D 69730M 69770E 9010510436 9010510436 9014850003 9014860083 9014880066 9018905003
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-33030

NTP10

 1
69037 - COVER SUB-ASSY, REAR DOOR LOCK, RH
69037-30010

NTP10

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-52270

NTP10

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-15010

NTP10

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-33140C0

NTP10..TAKUM

BLACK,TRIM4#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

NTP10

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-52051

NTP10..TAKUM

*CR

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-52120

NTP10..TAKUM

ﾒｯｷ

 1
69237B - NUT, REAR DOOR HANDLE
69237-30010

NTP10

 1
69239D - BUSH, REAR DOOR HANDLE
69239-30010

NTP10

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-52020

NTP10

 1
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-52030

NTP10

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

NTP10

 1
69322B - STOP, REAR DOOR LOWER LOCK
69322-15020

NTP10

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20110

NTP10

 1
69421D - CATCH, DOOR LOCK STRIKER PLATE, RH
69421-15020

NTP10

 1
69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER
69730-15010

NTP10

 1
69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K
69770-15010

NTP10

 1
Common parts
69296-30010
90105-10436
90148-50003
90148-60083
90148-80066
90189-05003
