NTP10-AHXDN (2017)

Toyota Jpn Taxi

Production Oct 2017 - Sep 9999
Engine 1NZFXP
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )

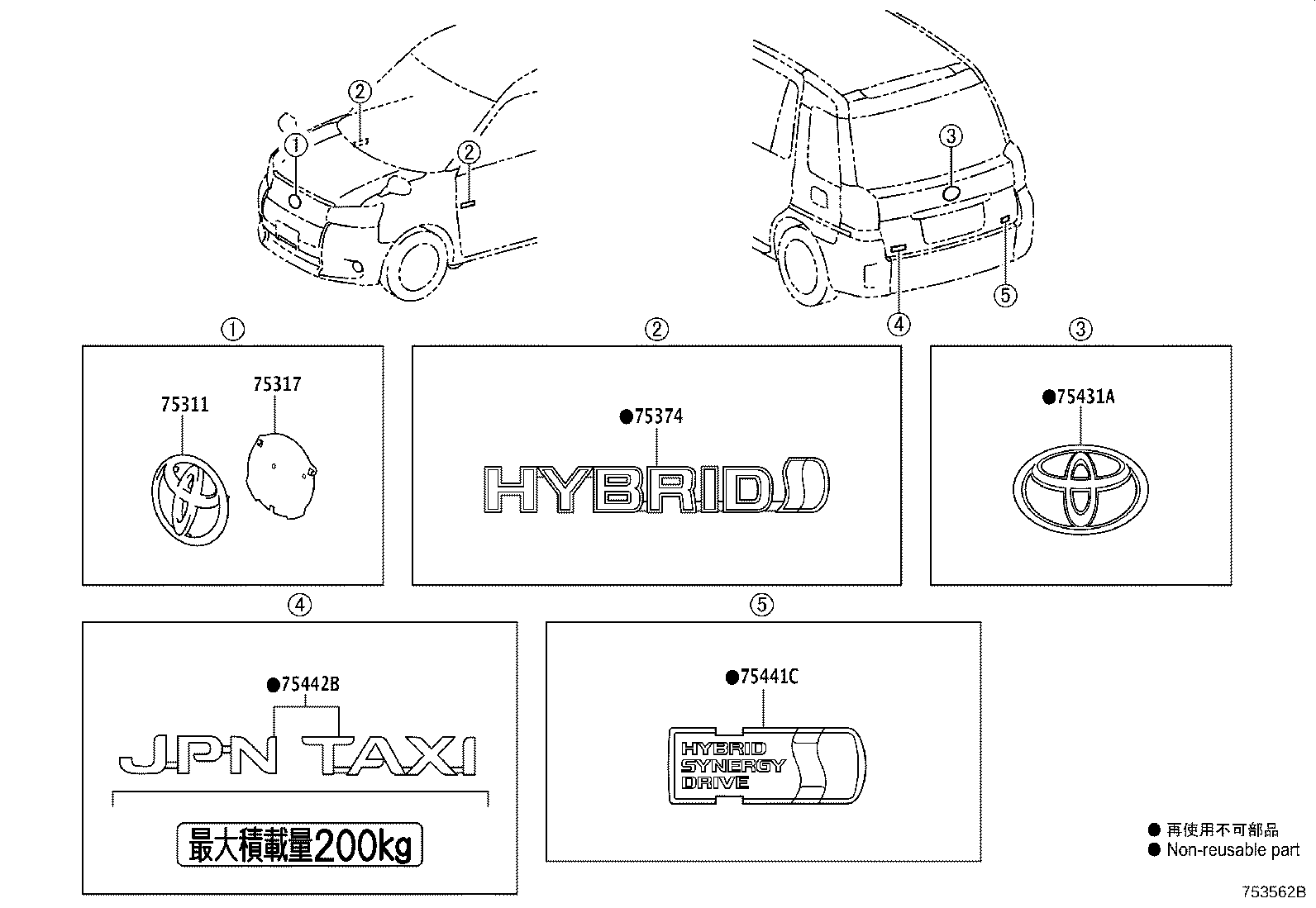

Click highlighted areas on diagram

diagram 75311 75317 75374 75431A 75441C 75442B
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
90975-02174

NTP10

 1
75317 - PLATE, RADIATOR GRILLE ORNAMENT
75317-47010

NTP10

 1
75374 - EMBLEM, SIDE PANEL
75374-15010

NTP10

 2
75431A - EMBLEM, BACK DOOR, NO.1
75403-52010

NTP10

 1
75441C - PLATE, BACK DOOR NAME
75441-15020

NTP10

HYBRID SYNERGY DRIVE

 1
75442B - PLATE, BACK DOOR NAME, NO.2
75441-B5020

NTP10..NAGOM

最大積載量=200KG,ﾊﾞﾝ仕様;138C

 1
75441-B5020

NTP10..NAGOM

最大積載量=200KG,ﾊﾞﾝ仕様;138C

 1
75442-15020

NTP10

JPN TAXI

 1
