NTP10-AHXDN (2017)
Toyota Jpn Taxi

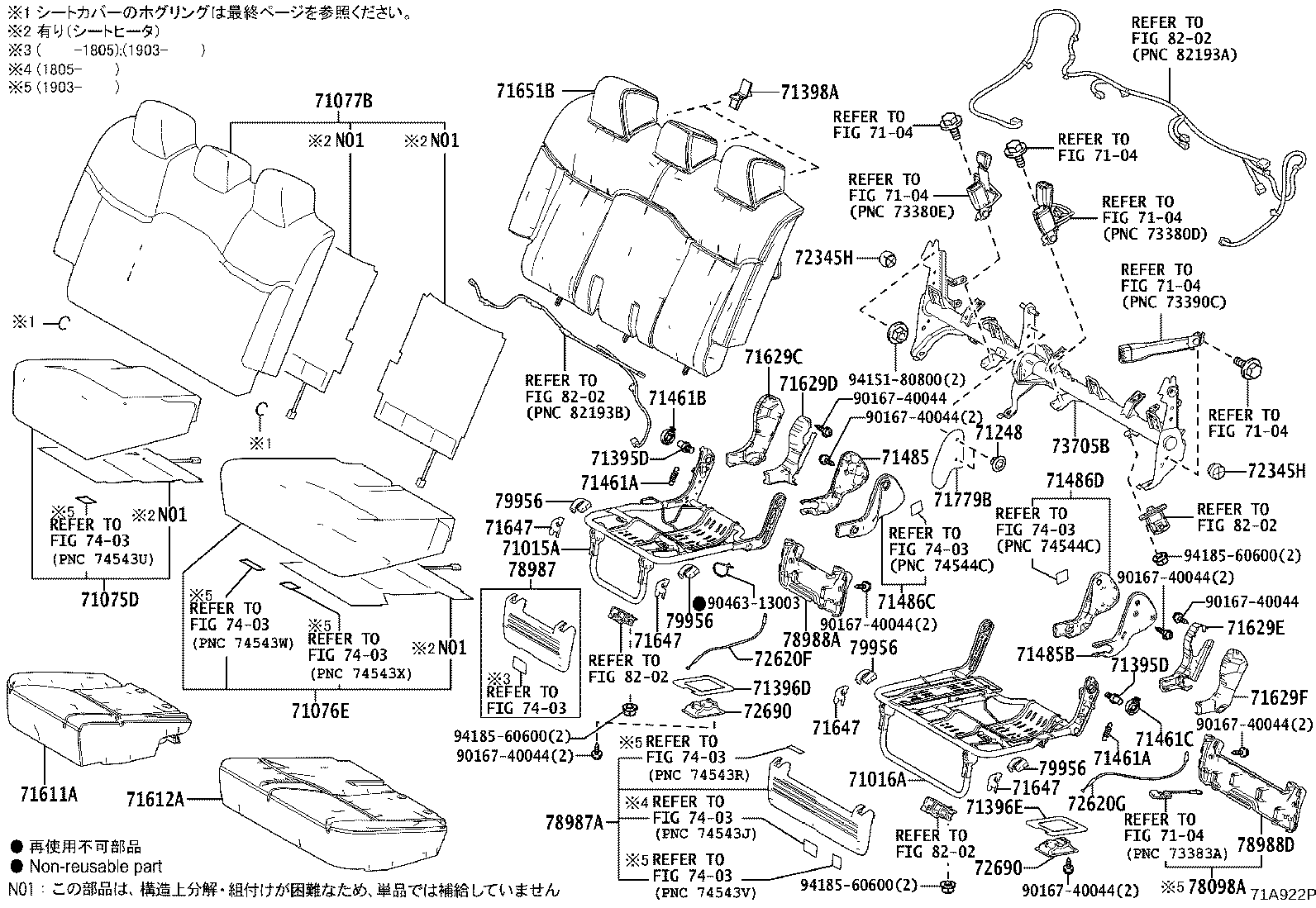

ILLUST NO. 1 OF 2(1710- )
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-15020 |
NTP10..NAGOM |
1 | ||
| 71015-15020 |
NTP10..NAGOM |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-15020 |
NTP10..NAGOM |
1 | ||
| 71016-15020 |
NTP10..NAGOM |
1 | ||
| 71075D - COVER SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71075-15140E0 |
NTP10..NAGOM KOHAKU,TRIM4# |
1 | ||
| 71075-15121E2 |
NTP10..NAGOM KOHAKU,TRIM4# |
1 | ||
| 71075-15120E2 |
NTP10..NAGOM KOHAKU,TRIM4# |
1 | ||
| 71076E - COVER SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71076-15021E2 |
NTP10..NAGOM KOHAKU,TRIM4# |
1 | ||
| 71076-15040E0 |
NTP10..NAGOM KOHAKU,TRIM4# |
1 | ||
| 71076-15020E2 |
NTP10..NAGOM KOHAKU,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-15121E2 |
NTP10..NAGOM KOHAKU,TRIM4# |
1 | ||
| 71077-15120E2 |
NTP10..NAGOM KOHAKU,TRIM4# |
1 | ||
| 71077-15140E0 |
NTP10..NAGOM KOHAKU,TRIM4# |
1 | ||
| 71248 - RETAINER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71248-15010C0 |
NTP10 BLACK,TRIM4# |
2 | ||
| 71395D - PLATE, RR SEAT CUSHION SUPPORT | ||||
| 71395-15010 |
NTP10 |
2 | ||
| 71395-15010 |
NTP10 |
2 | ||
| 71395-15010 |
NTP10 |
2 | ||
| 71395D - PLATE, RR SEAT CUSHION SUPPORT | ||||
| 71395-15010 |
NTP10 |
2 | ||
| 71395-15010 |
NTP10 |
2 | ||
| 71395-15010 |
NTP10 |
2 | ||
| 71396D - PLATE, REAR SEAT CUSHION COVER FINISH, RH | ||||
| 71396-15010 |
NTP10 |
1 | ||
| 71396E - PLATE, REAR SEAT CUSHION COVER FINISH, LH | ||||
| 71396-15010 |
NTP10 |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-62010 |
NTP10 |
3 | ||
| 71461A - SPRING, REAR SEAT CUSHION, NO.1 | ||||
| 71461-15010 |
NTP10 |
2 | ||
| 71461-15010 |
NTP10 |
2 | ||
| 71461-15010 |
NTP10 |
2 | ||
| 71461A - SPRING, REAR SEAT CUSHION, NO.1 | ||||
| 71461-15010 |
NTP10 |
2 | ||
| 71461-15010 |
NTP10 |
2 | ||
| 71461-15010 |
NTP10 |
2 | ||
| 71461B - SPRING, REAR SEAT CUSHION, RH | ||||
| 71462-15020 |
NTP10 |
1 | ||
| 71462-15020 |
NTP10 |
1 | ||
| 71462-15020 |
NTP10 |
1 | ||
| 71461C - SPRING, REAR SEAT CUSHION, LH | ||||
| 71462-15010 |
NTP10 |
1 | ||
| 71462-15010 |
NTP10 |
1 | ||
| 71462-15010 |
NTP10 |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-15010C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-15020C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-15010C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 71486D - COVER, REAR SEAT HINGE, RH | ||||
| 71486-15020C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-15020 |
NTP10 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-15020 |
NTP10 |
1 | ||
| 71629C - COVER, REAR SEAT CUSHION HINGE, OUTER RH | ||||
| 71629-15010C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 71629D - COVER, REAR SEAT CUSHION HINGE, INNER RH | ||||
| 71639-15010C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 71629E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71629-15020C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 71629F - COVER, REAR SEAT CUSHION HINGE, OUTER LH | ||||
| 71639-15020C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-15010 |
NTP10 |
4 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-15010 |
NTP10 |
4 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-15010 |
NTP10 |
4 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-15010 |
NTP10 |
4 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-15030 |
NTP10..NAGOM |
1 | ||
| 71779B - PLATE, REAR SEAT | ||||
| 71779-15010 |
NTP10 |
1 | ||
| 71779-15010 |
NTP10 |
1 | ||
| 71779-15010 |
NTP10 |
1 | ||
| 72345H - CAP, SEAT STAND FRAME | ||||
| 72345-15010 |
NTP10 |
2 | ||
| 72345H - CAP, SEAT STAND FRAME | ||||
| 72345-15010 |
NTP10 |
2 | ||
| 72620F - CABLE ASSY, REAR SEAT LOCK, RH | ||||
| 72620-15010 |
NTP10 |
1 | ||
| 72620-15010 |
NTP10 |
1 | ||
| 72620-15010 |
NTP10 |
1 | ||
| 72620G - CABLE ASSY, REAR SEAT LOCK, LH | ||||
| 72620-15020 |
NTP10 |
1 | ||
| 72620-15020 |
NTP10 |
1 | ||
| 72620-15020 |
NTP10 |
1 | ||
| 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE | ||||
| 72690-28050C1 |
NTP10 BLACK,TRIM4# |
2 | ||
| 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE | ||||
| 72690-28050C1 |
NTP10 BLACK,TRIM4# |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-15020 |
NTP10..NAGOM |
1 | ||
| 73705-15021 |
NTP10..NAGOM |
1 | ||
| 78098A - COVER SUB-ASSY, REAR SEAT FOOTREST, LH | ||||
| 78098-15010C0 |
NTP10 BLACK,TRIM4# |
1 | ||
| 78987 - COVER, REAR SEAT FOOTREST, NO.1 | ||||
| 78987-15012C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 78987-15011C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 78987-15010C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 78987A - COVER, REAR SEAT FOOTREST, NO.3 | ||||
| 78987-15030C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 78987-15031C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 78987-15032C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 78988A - COVER, REAR SEAT FOOTREST, NO.2 | ||||
| 78988-15010C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 78988D - COVER, REAR SEAT FOOTREST, NO.4 | ||||
| 78988-15031C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 78988-15030C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-15010C1 |
NTP10 BLACK,TRIM4# |
4 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-15010C1 |
NTP10 BLACK,TRIM4# |
4 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-15010C1 |
NTP10 BLACK,TRIM4# |
4 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-15010C1 |
NTP10 BLACK,TRIM4# |
4 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90463-13003 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
| 8202 | ||||

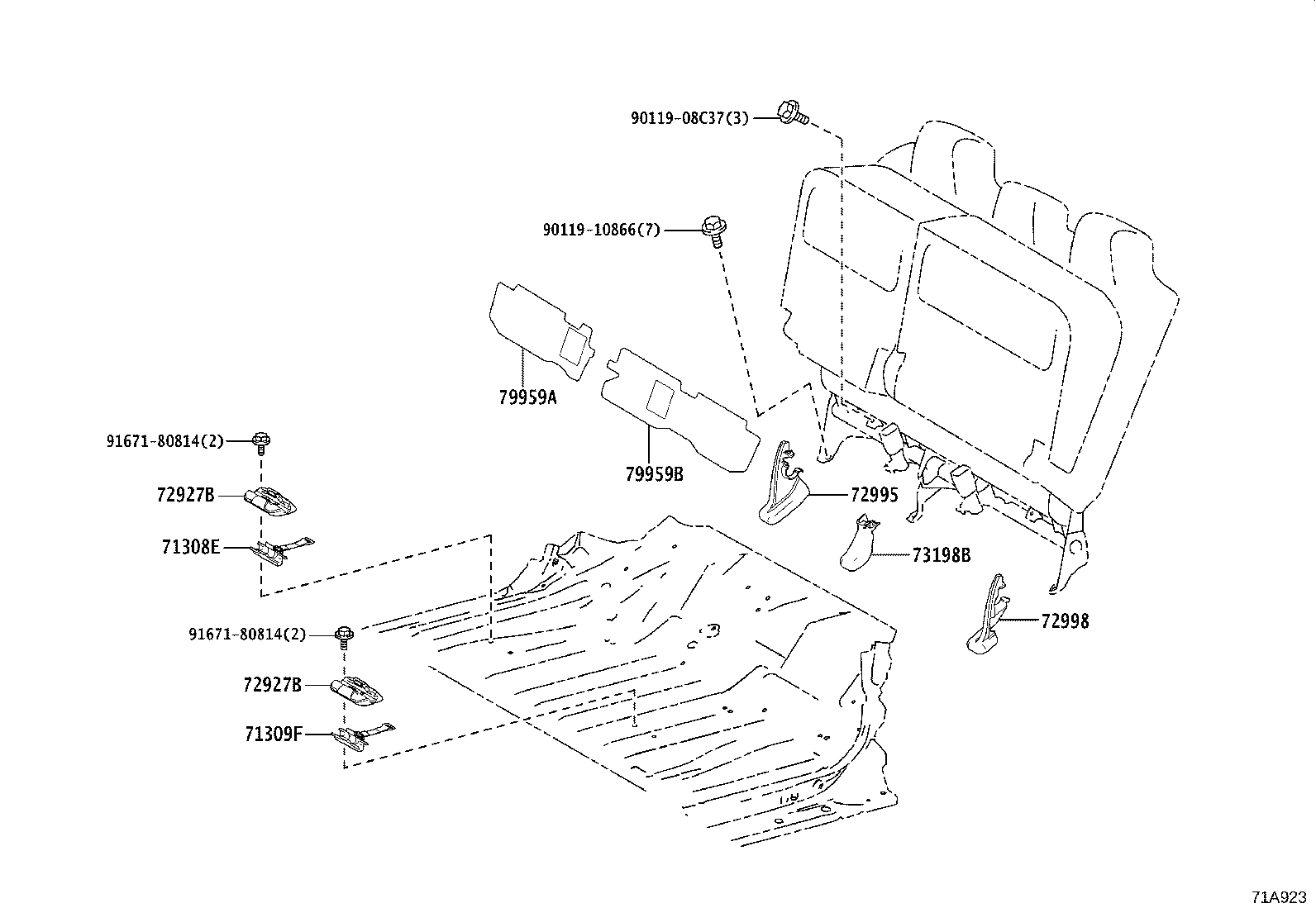

ILLUST NO. 2 OF 2(1710- )
ｼｰﾄﾚｯｸﾞｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71308E - LEG SUB-ASSY, REAR SEAT, RH | ||||
| 71308-15031 |
NTP10 |
1 | ||
| 71308-15030 |
NTP10 |
1 | ||
| 71309F - LEG SUB-ASSY, REAR SEAT, LH | ||||
| 71308-15030 |
NTP10 |
1 | ||
| 71308-15031 |
NTP10 |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-15010 |
NTP10 |
2 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-15010 |
NTP10 |
2 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-15010C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-15010C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 73198B - COVER, REAR SEAT BRACKET | ||||
| 73198-15010C1 |
NTP10 BLACK,TRIM4# |
1 | ||
| 79959A - COVER, REAR SEAT LEG, RH | ||||
| 79959-15010 |
NTP10 |
1 | ||
| 79959B - COVER, REAR SEAT LEG, LH | ||||
| 79959-15020 |
NTP10 |
1 | ||
| Common parts | ||||
| 90119-08C37 | ||||
| 90119-10866 | ||||
| 91671-80814 | ||||

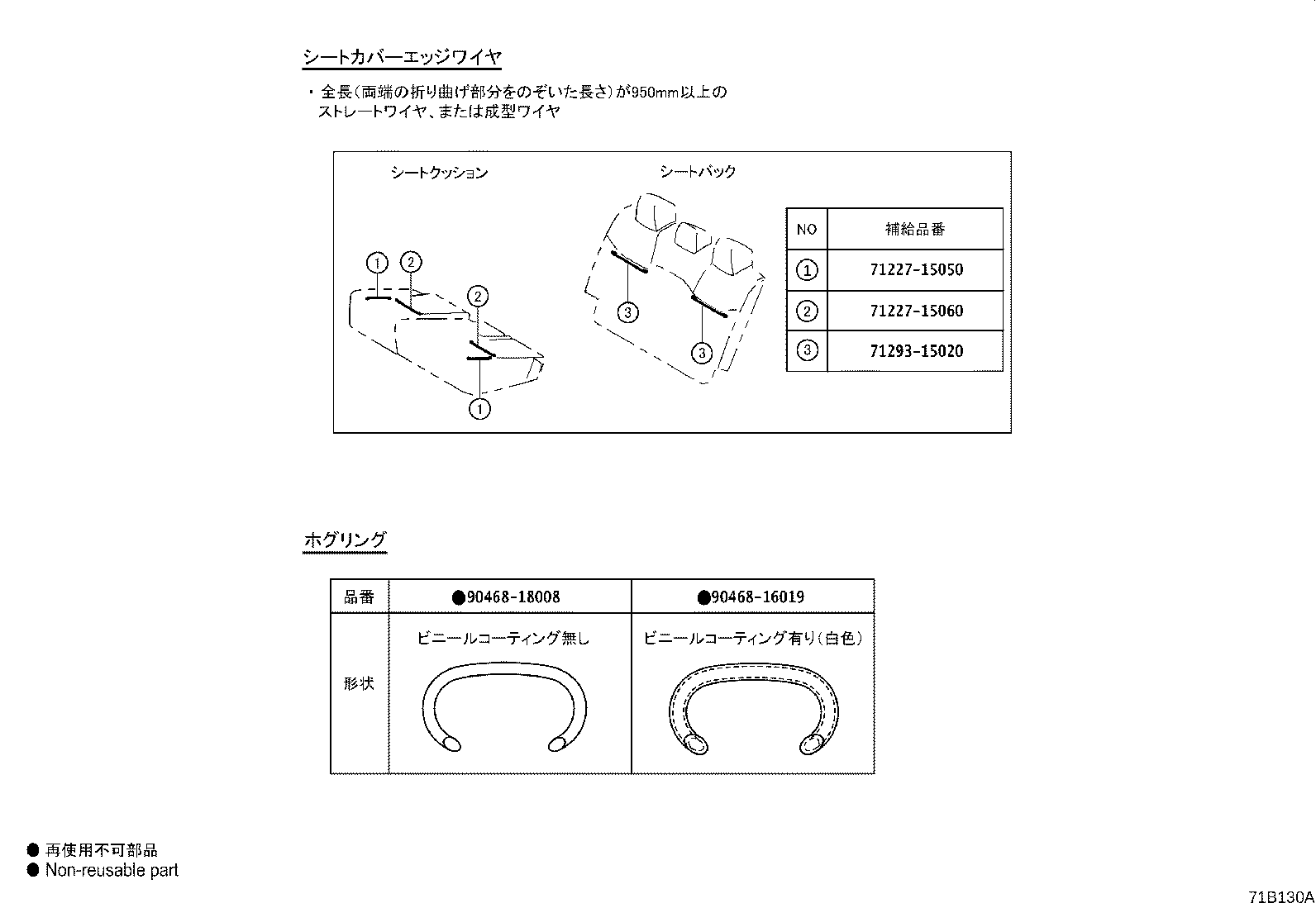

(1710- )
ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71227-15050 | ||||
| 71227-15060 | ||||
| 71293-15020 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
