NTP10-AHXDN (2017)

Toyota Jpn Taxi

Production Oct 2017 - Sep 9999
Engine 1NZFXP
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )

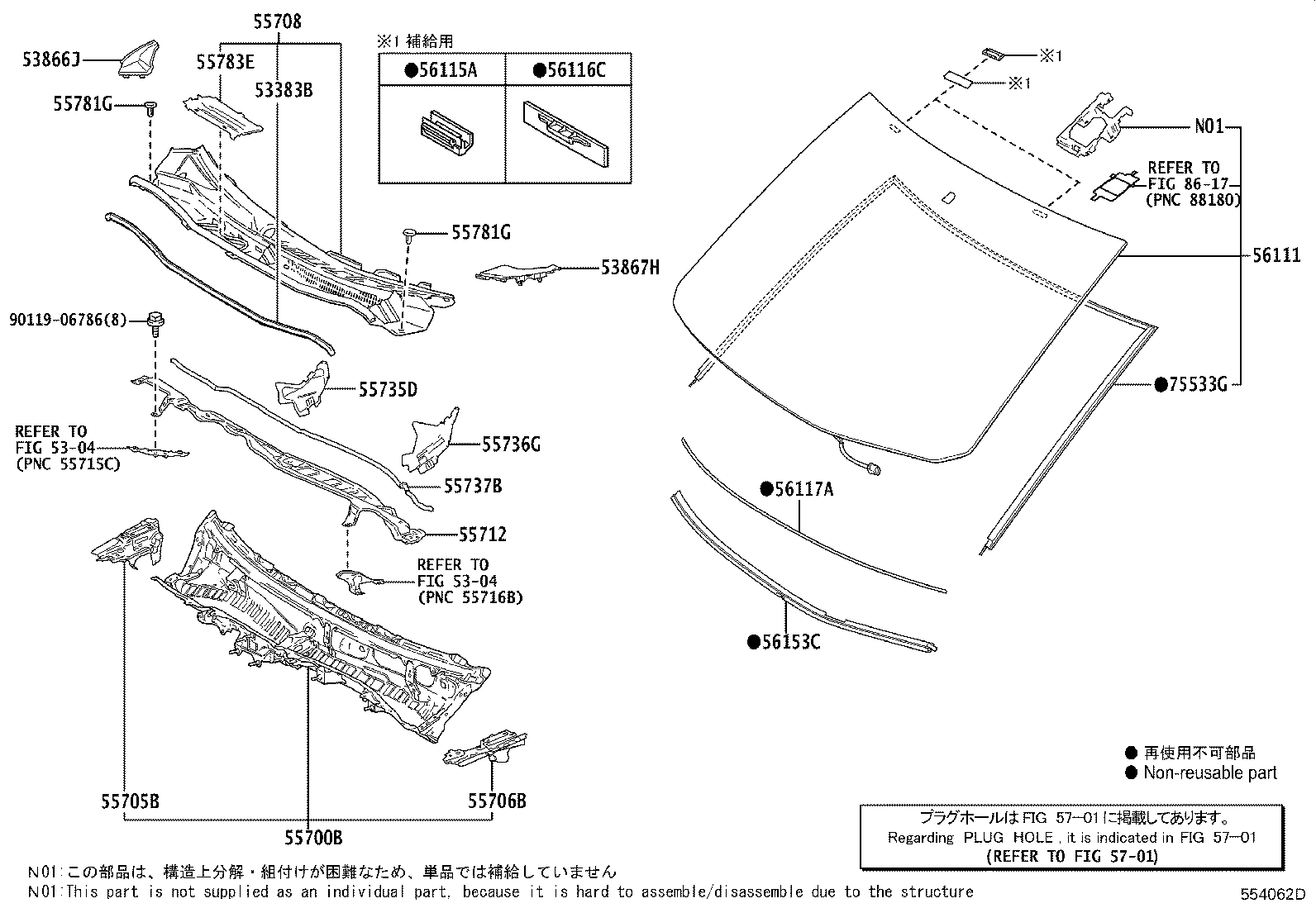

Click highlighted areas on diagram

diagram 5304 5304 53383B 53866J 53867H 55700B 55705B 55706B 55708 55712 55735D 55736G 55737B 55781G 55781G 55783E 56111 56115A 56116C 56117A 56153C 5701 75533G 8617 9011906786
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-15010

NTP10

 1
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-15010

NTP10

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-15010

NTP10

 1
55700B - COWL ASSY
55700-15020

NTP10

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-15010

NTP10

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-15010

NTP10

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-15020

NTP10

寒冷地仕様

 1
55708-15010

NTP10

 1
55712 - PANEL, COWL TOP OUTSIDE, FRONT
55712-15020

NTP10

 1
55735D - SEAL, FRONT AIR SHUTTER, RH
55735-15010

NTP10

 1
55736G - SEAL, FRONT AIR SHUTTER, LH
55736-15010

NTP10

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-15010

NTP10

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

NTP10

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

NTP10

 2
55783E - LOUVER, COWL TOP VENTILATOR, CENTER
55783-15010

NTP10

 1
56111 - GLASS, WINDSHIELD
56101-15903

NTP10

 1
56101-15901

NTP10

 1
56101-15902

NTP10

寒冷地仕様

 1
56101-15904

NTP10

寒冷地仕様

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NTP10

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NTP10

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-50140

NTP10

*D,L=1332

 1
56117-50140

NTP10

*D,L=1332,寒冷地仕様

 1
56153C - MOULDING, FRONT WINDOW, INNER CENTER
56153-15020

NTP10

寒冷地仕様

 1
56153-15010

NTP10

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-15010

NTP10

 1
Common parts
90119-06786
Linked diagrams
5304
5701
8617
