NTP10-AHXDN (2017)
Toyota Jpn Taxi
Production
Oct 2017
-
Sep 9999
Engine
1NZFXP
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1710-2001)

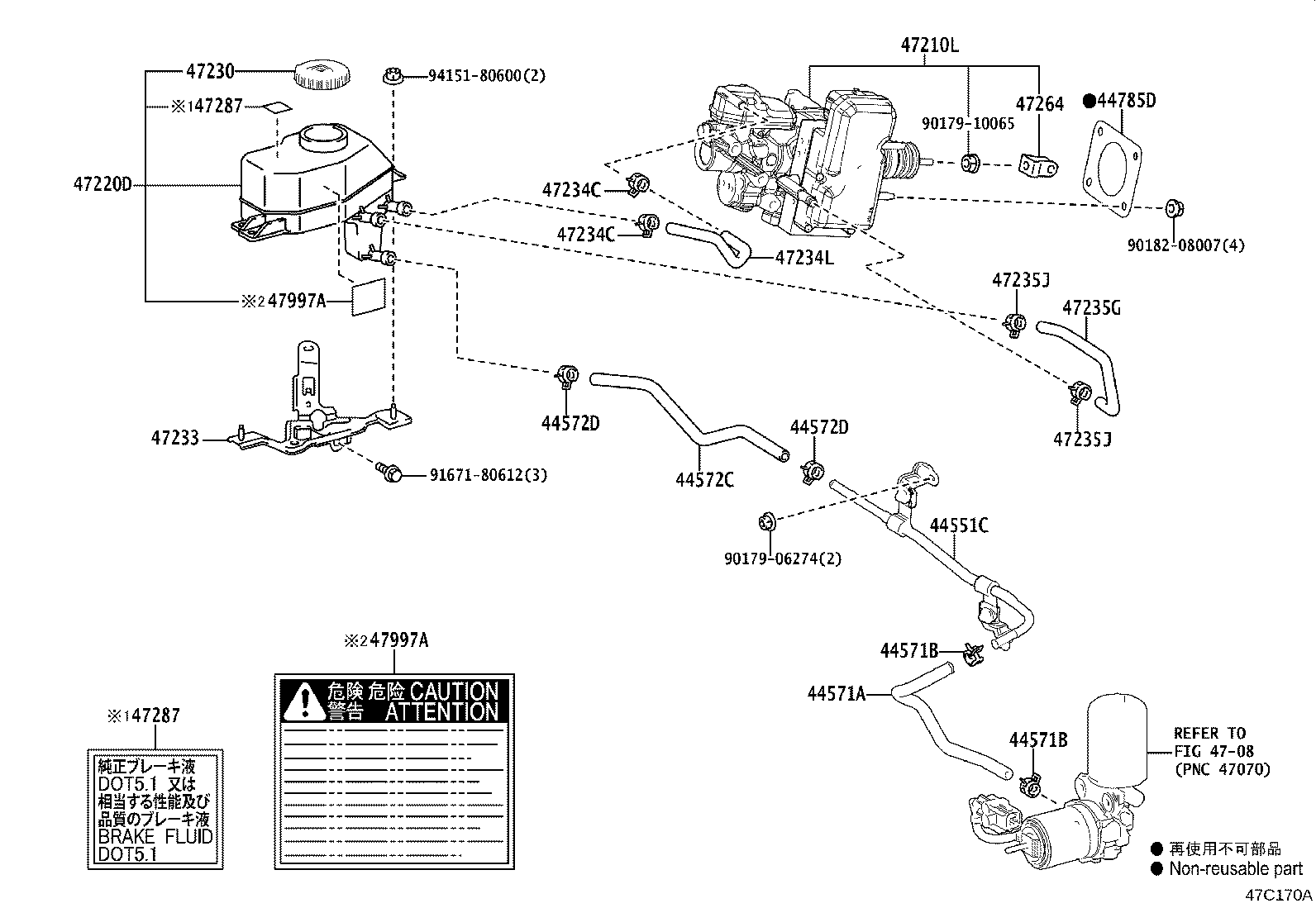

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-15010 |
NTP10 |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-15010 |
NTP10 |
1 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-15011 |
NTP10 |
1 | ||
| 44572-15010 |
NTP10 |
1 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-16020 |
NTP10 |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-15011 |
NTP10 |
1 | ||
| 47050-15010 |
NTP10 |
1 | ||
| 47050-15020 |
NTP10 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15,ｽﾁｰﾙ 5.5J |
1 | ||
| 47050-15030 |
NTP10 車高ｱｯﾌﾟﾊﾟｯｹｰｼﾞ |
1 | ||
| 47050-15021 |
NTP10 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15,ｽﾁｰﾙ 5.5J |
1 | ||
| 47050-15031 |
NTP10 車高ｱｯﾌﾟﾊﾟｯｹｰｼﾞ |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-15010 |
NTP10 |
1 | ||
| 47220-15011 |
NTP10 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-15010 |
NTP10 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-15020 |
NTP10 |
1 | ||
| 47233-15010 |
NTP10 |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-15010 |
NTP10 |
1 | ||
| 47234-15011 |
NTP10 |
1 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-15010 |
NTP10 |
1 | ||
| 47235-15011 |
NTP10 |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
NTP10 |
1 | ||
| 47264-12060 |
NTP10 |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-15010 |
NTP10 |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-15010 |
NTP10 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
NTP10 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
NTP10 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90179-10065 | ||||
| 90182-08007 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4708 | ||||
(2001- )

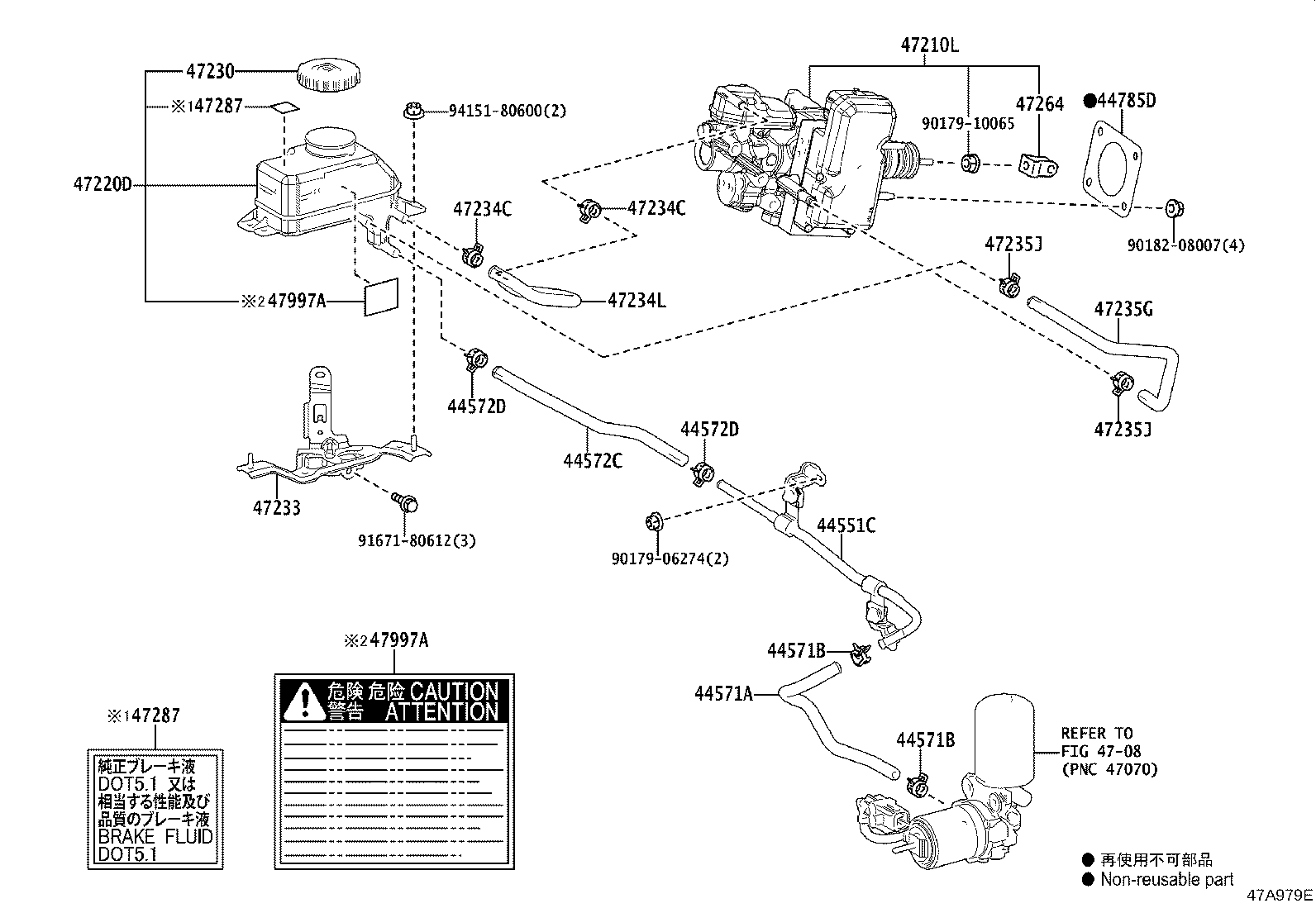

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-15010 |
NTP10 |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-15010 |
NTP10 |
1 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-15011 |
NTP10 |
1 | ||
| 44572-15010 |
NTP10 |
1 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-16020 |
NTP10 |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-15011 |
NTP10 |
1 | ||
| 47050-15010 |
NTP10 |
1 | ||
| 47050-15020 |
NTP10 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15,ｽﾁｰﾙ 5.5J |
1 | ||
| 47050-15030 |
NTP10 車高ｱｯﾌﾟﾊﾟｯｹｰｼﾞ |
1 | ||
| 47050-15021 |
NTP10 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15,ｽﾁｰﾙ 5.5J |
1 | ||
| 47050-15031 |
NTP10 車高ｱｯﾌﾟﾊﾟｯｹｰｼﾞ |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-15010 |
NTP10 |
1 | ||
| 47220-15011 |
NTP10 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-15010 |
NTP10 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-15020 |
NTP10 |
1 | ||
| 47233-15010 |
NTP10 |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-15010 |
NTP10 |
1 | ||
| 47234-15011 |
NTP10 |
1 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-15010 |
NTP10 |
1 | ||
| 47235-15011 |
NTP10 |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
NTP10 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
NTP10 |
1 | ||
| 47264-12060 |
NTP10 |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-15010 |
NTP10 |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-15010 |
NTP10 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
NTP10 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
NTP10 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90179-10065 | ||||
| 90182-08007 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4708 | ||||
