NTP10-AHXDN (2017)
Toyota Jpn Taxi
Production
Oct 2017
-
Sep 9999
Engine
1NZFXP
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

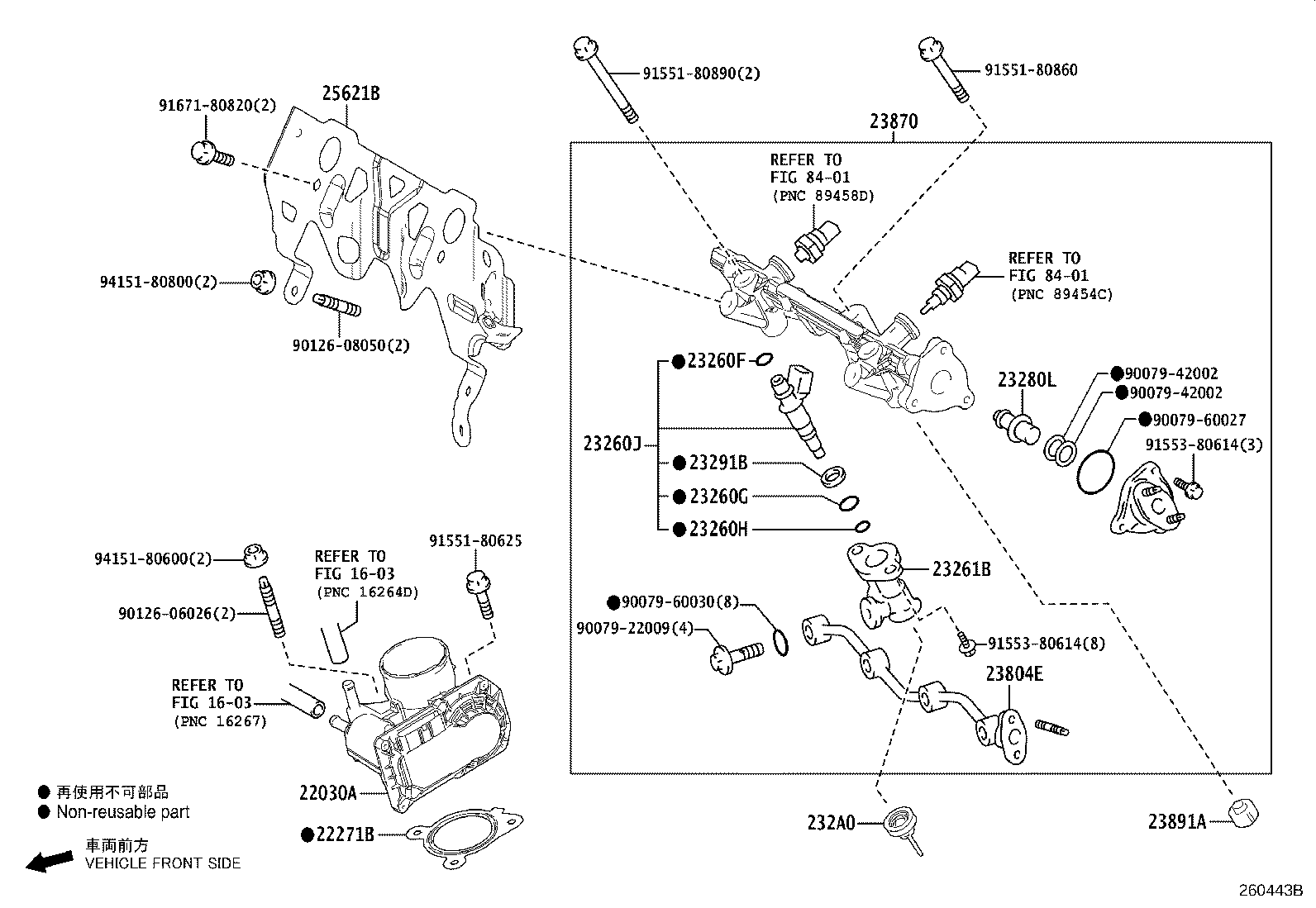

ILLUST NO. 1 OF 2(1710- )
Click highlighted areas on diagram
ｽﾛｯﾄﾙﾎﾞﾃﾞｰ & ｲﾝｼﾞｪｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030A - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-21050 |
1NZFXP..NTP10 |
1 | ||
| 22271B - GASKET, THROTTLE BODY | ||||
| 22271-21080 |
1NZFXP..NTP10 |
1 | ||
| 23260F - RING, O(FOR LPG OR CNG INJECTOR NO.1) | ||||
| 90079-60033 |
1NZFXP..NTP10 |
4 | ||
| 23260G - RING, O(FOR LPG OR CNG INJECTOR NO.2) | ||||
| 90079-60032 |
1NZFXP..NTP10 |
4 | ||
| 23260H - RING, O(FOR LPG OR CNG INJECTOR NO.3) | ||||
| 90079-60031 |
1NZFXP..NTP10 |
4 | ||
| 23260J - INJECTOR ASSY, LPG | ||||
| 23260-21010 |
1NZFXP..NTP10 |
4 | ||
| 23261B - COVER, INJECTOR | ||||
| 23261-21010 |
1NZFXP..NTP10 |
1 | ||
| 23280L - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21040 |
1NZFXP..NTP10 |
1 | ||
| 23291B - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-75040 |
1NZFXP..NTP10 |
4 | ||
| 232A0 - INSULATOR ASSY, FUEL INJECTOR | ||||
| 232A0-21010 |
1NZFXP..NTP10 |
4 | ||
| 23804E - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-21010 |
1NZFXP..NTP10 |
1 | ||
| 23870 - PIPE ASSY, FUEL DELIVERY W/LPG INJECTOR | ||||
| 23870-21010 |
1NZFXP..NTP10 |
1 | ||
| 23891A - SPACER, FUEL DELIVERY, NO.1 | ||||
| 23891-21030 |
1NZFXP..NTP10 |
3 | ||
| 25621B - COVER(FOR FUEL DELIVERY PIPE) | ||||
| 25621-21010 |
1NZFXP..NTP10 |
1 | ||
| Common parts | ||||
| 90079-22009 | ||||
| 90079-42002 | ||||
| 90079-60027 | ||||
| 90079-60030 | ||||
| 90126-06026 | ||||
| 90126-08050 | ||||
| 91551-80625 | ||||
| 91551-80860 | ||||
| 91551-80890 | ||||
| 91553-80614 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8401 | ||||

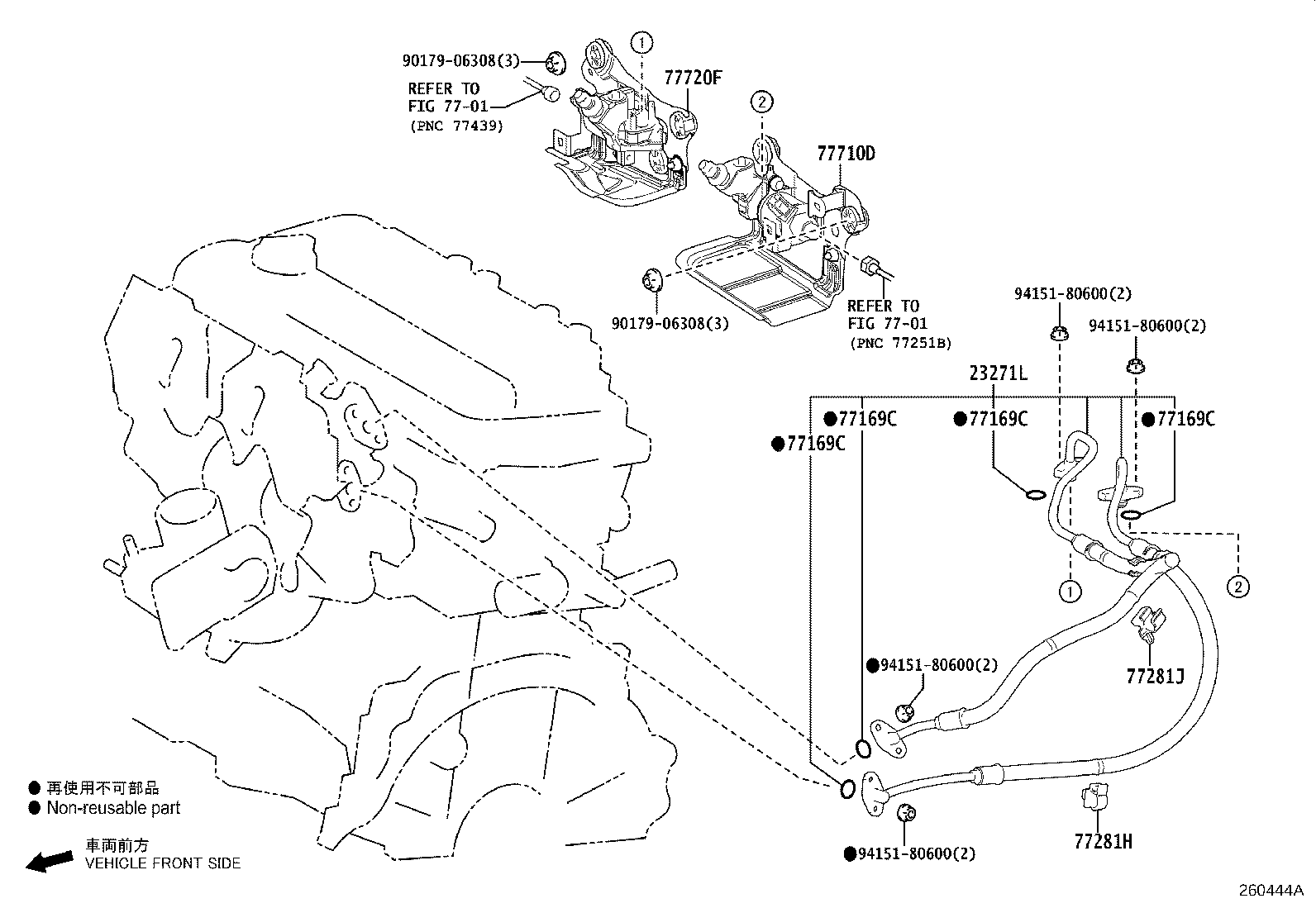

ILLUST NO. 2 OF 2(1710- )
Click highlighted areas on diagram
ﾌｭｰｴﾙｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ & ﾎｰｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23271L - HOSE, FUEL | ||||
| 23201-21011 |
1NZFXP..NTP10 |
1 | ||
| 77169C - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-25010 |
NTP10 |
4 | ||
| 77169C - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-25010 |
NTP10 |
4 | ||
| 77169C - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-25010 |
NTP10 |
4 | ||
| 77169C - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-25010 |
NTP10 |
4 | ||
| 77281H - CLAMP, FUEL HOSE, NO.1 | ||||
| 90929-01448 |
NTP10 |
1 | ||
| 77281J - CLAMP, FUEL HOSE, NO.2 | ||||
| 23847-21020 |
NTP10 |
1 | ||
| 77710D - VALVE ASSY, FUEL SOLENOID MAIN | ||||
| 77710-15010 |
NTP10 |
1 | ||
| 77720F - VALVE ASSY, FUEL SOLENOID RETURN | ||||
| 77720-15010 |
NTP10 |
1 | ||
| Common parts | ||||
| 90179-06308 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7701 | ||||
