NTP10-AHXDN (2017)

Toyota Jpn Taxi

Production Oct 2017 - Sep 9999
Engine 1NZFXP
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )

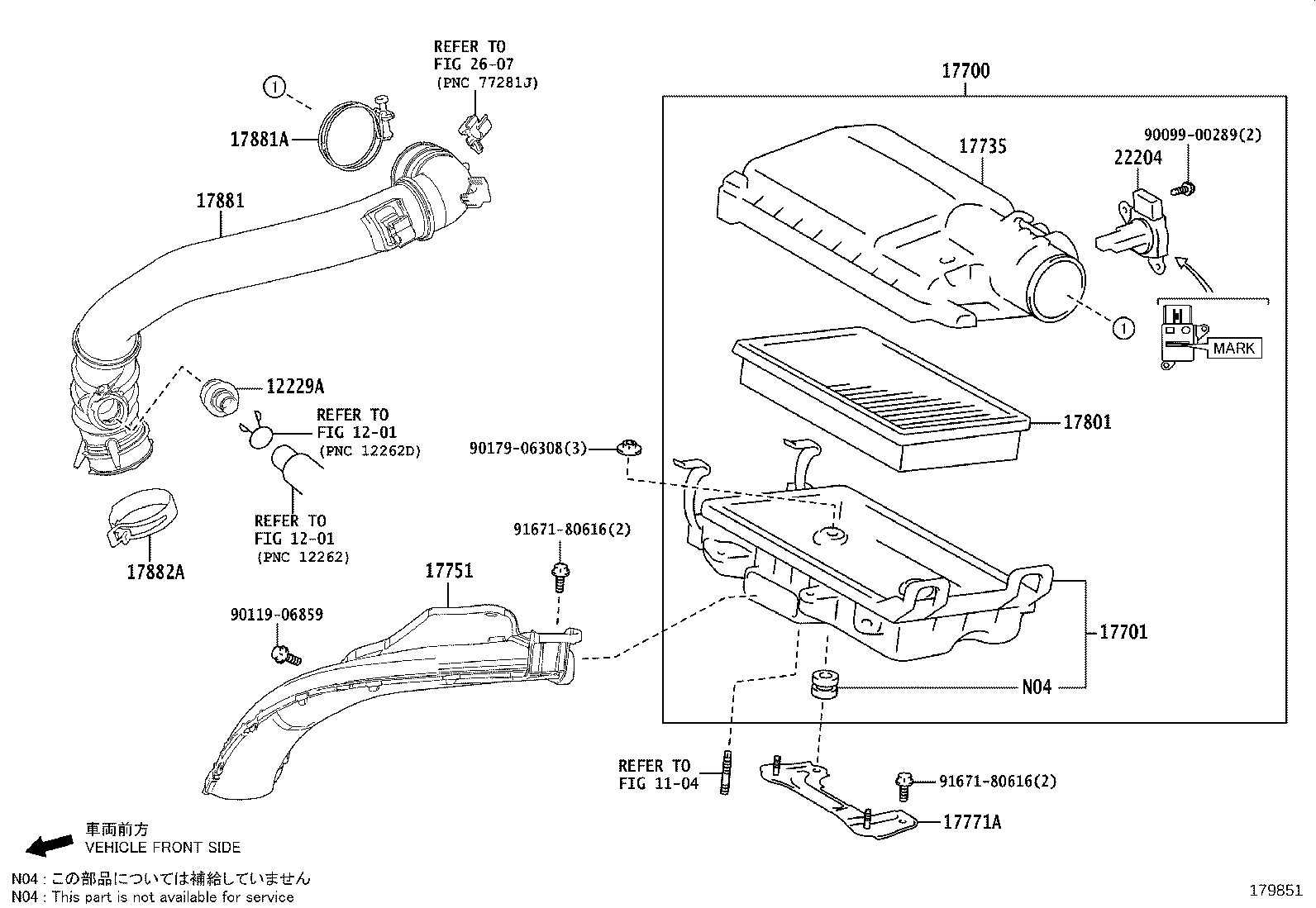

Click highlighted areas on diagram

diagram 1104 1201 1201 12229A 17700 17701 17735 17751 17771A 17801 17881 17881A 17882A 22204 2607 9009900289 9011906859 9017906308 9167180616 9167180616
Part # Description Qty Price
12229A - PIPE, VENTILATION
12229-33010

1NZFXP..NTP10

 1
17700 - CLEANER ASSY, AIR
17700-21190

1NZFXP..NTP10

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-21150

1NZFXP..NTP10

 1
17735 - CAP, AIR CLEANER
17735-21050

1NZFXP..NTP10

 1
17751 - INLET, AIR CLEANER, NO.1
17751-21260

1NZFXP..NTP10

 1
17771A - BRACKET, AIR CLEANER
17771-21080

1NZFXP..NTP10

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-77050

1NZFXP..NTP10

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-21170

1NZFXP..NTP10

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

1NZFXP..NTP10

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-54002

1NZFXP..NTP10

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0V010

1NZFXP..NTP10

ﾏｰｸ 22204−0V010

 1
22204-28010

1NZFXP..NTP10

ﾏｰｸ 22204−28010

 1
22204-0V020

1NZFXP..NTP10

ﾏｰｸ 22204−0V020

 1
22204-0T040

1NZFXP..NTP10

ﾏｰｸ 22204−0T040

 1
Common parts
90099-00289
90119-06859
90179-06308
91671-80616
Linked diagrams
1104
1201
2607
