ZSP110-AHPEK (2007)
Toyota Ist

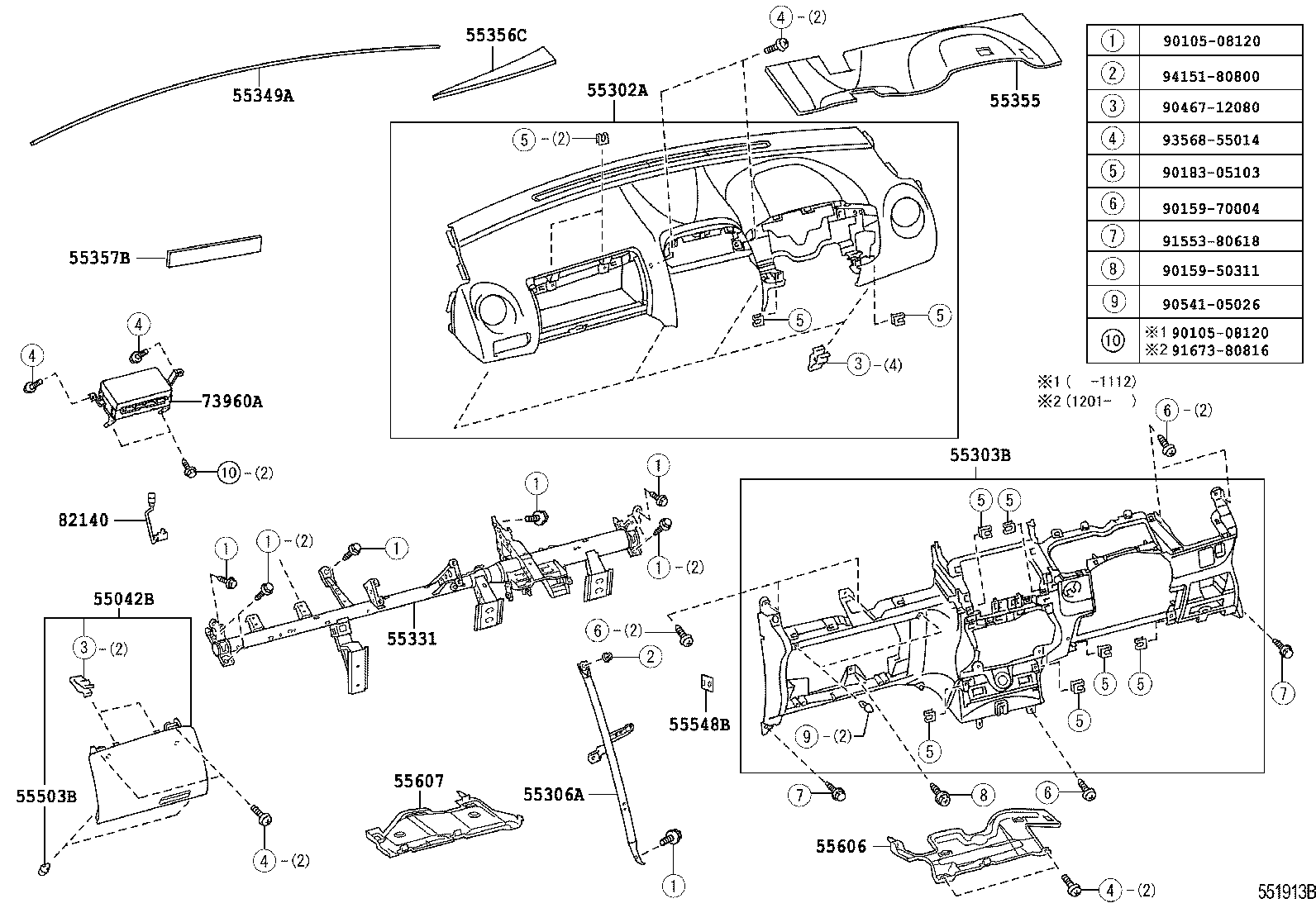

ILLUST NO. 1 OF 2(0707- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-52050B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-52090B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52190B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52180 |
NCP11#,ZSP110..CBU |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52511 |
NCP11#,ZSP110..CBU |
1 | ||
| 55330-52510 |
NCP11#,ZSP110..CBU |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52100 |
NCP11#,ZSP110..CBU |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52160 |
NCP11#,ZSP110..CBU |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-52150 |
NCP11#,ZSP110..CBU |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-52130 |
NCP11#,ZSP110..CBU |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
NCP11#,ZSP110..CBU |
2 | ||
| 55548B - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12090B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-52030 |
NCP11#,ZSP110..CBU |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-52030 |
NCP11#,ZSP110..CBU |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-52120 |
NCP11#,ZSP110..CBU |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-52030 |
NCP11#,ZSP110..CBU |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-50311 | ||||
| 90159-70004 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 90541-05026 | ||||
| 91553-80618 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||

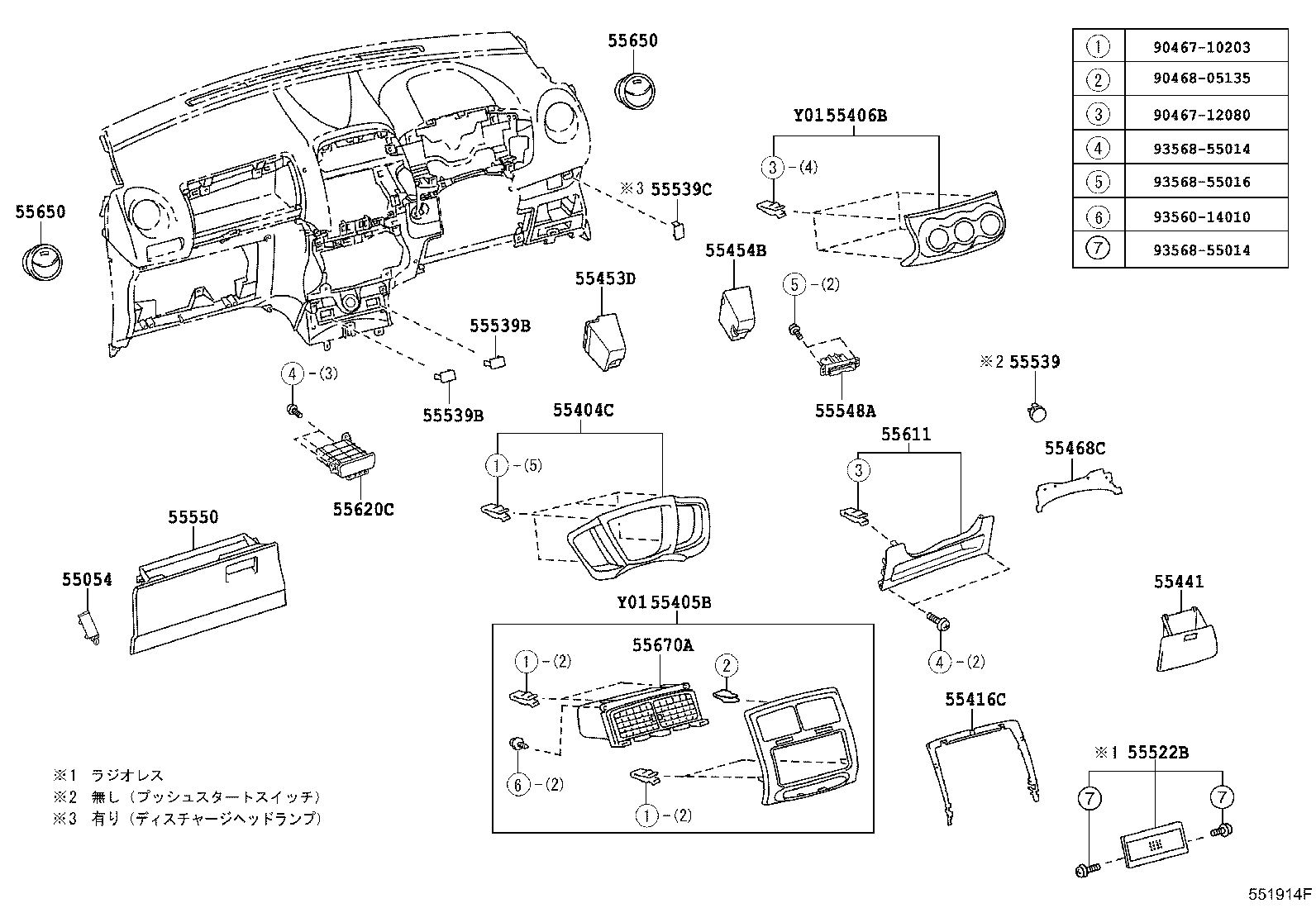

ILLUST NO. 2 OF 2(0707- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-52050B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-52670C0 |
NCP11#,ZSP110..G..CBU ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ 汎用 2DIN,BLACK,TRIM1# |
1 | ||
| 55405-52670C0 |
NCP11#,ZSP110..G..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ),BLACK,TRIM1# |
1 | ||
| 55405-52680C0 |
NCP11#,ZSP110..G..CBU BLACK,TRIM1# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-52030B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-52150B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-52100 |
NCP11#,ZSP110..CBU |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-52090 |
NCP11#,ZSP110..CBU |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-52060 |
NCP11#,ZSP110..CBU |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NCP11#,ZSP110..G..CBU ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ 汎用 2DIN |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52070B0 |
NCP11#,ZSP110..G..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ),DK.GRAY,TRIM1# |
2 | ||
| 55539-52070B0 |
NCP11#,ZSP110..G..CBU DK.GRAY,TRIM1# |
1 | ||
| 55539-52070B0 |
NCP11#,ZSP110..G..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(G−BOOK),DK.GRAY,TRIM1# |
1 | ||
| 55539-52070B0 |
NCP11#,ZSP110..G..CBU ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ 汎用 2DIN,DK.GRAY,TRIM1# |
2 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52070B0 |
NCP11#,ZSP110..G..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ),DK.GRAY,TRIM1# |
2 | ||
| 55539-52070B0 |
NCP11#,ZSP110..G..CBU DK.GRAY,TRIM1# |
1 | ||
| 55539-52070B0 |
NCP11#,ZSP110..G..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(G−BOOK),DK.GRAY,TRIM1# |
1 | ||
| 55539-52070B0 |
NCP11#,ZSP110..G..CBU ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ 汎用 2DIN,DK.GRAY,TRIM1# |
2 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070B0 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55548-52030B0 |
NCP11#,ZSP110..CBU ETC−有り,DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52201 |
ZSP110 |
1 | ||
| 55550-52200B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-52170B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-52070B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52170 |
NCP11#,ZSP110..CBU |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52170 |
NCP11#,ZSP110..CBU |
2 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-52040B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93560-14010 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
