NCP65-HHPNK (2005)

Toyota Ist

Production May 2005 - Jul 2007
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0505- )

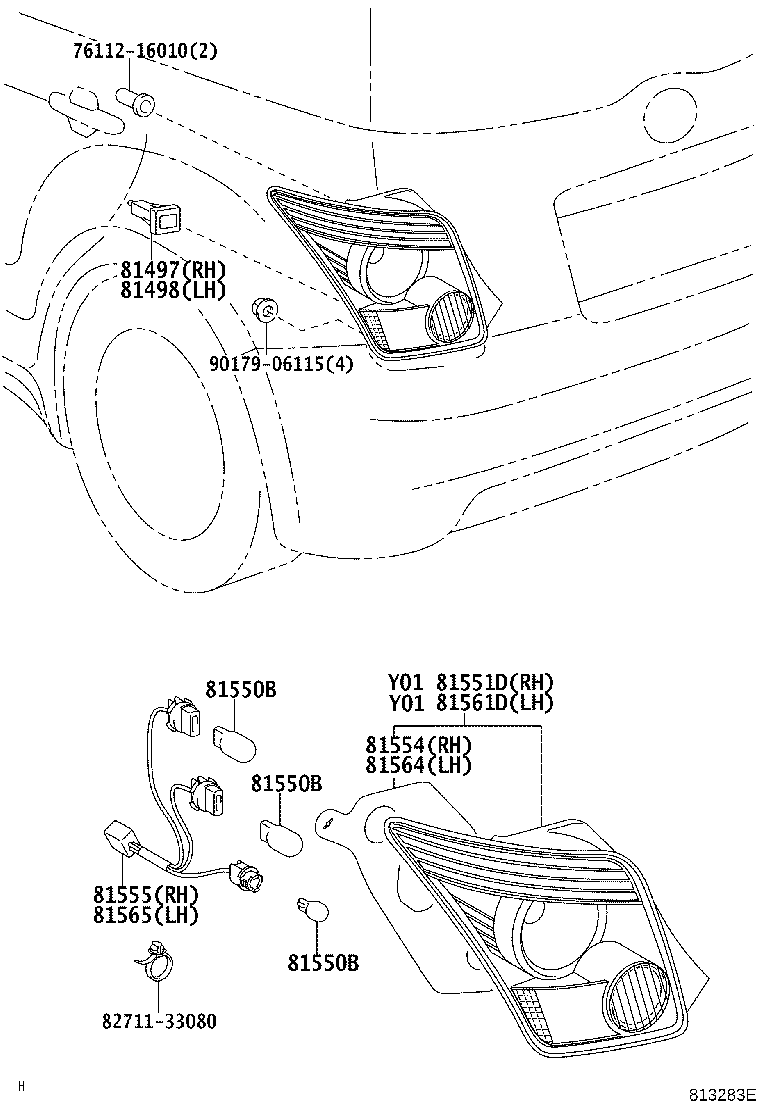

Click highlighted areas on diagram

diagram 7611216010 81497 81498 81550B 81550B 81550B 81551D 81554 81555 81561D 81564 81565 8271133080 9017906115
Part # Description Qty Price
81497 - COVER, REAR COMBINATION LAMP, RH
81497-52010

NCP6#

 1
81497-52010

NCP6#

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-52010

NCP6#

 1
81498-52010

NCP6#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

NCP6#

12V 16W,ﾊﾞｯｸ

 2
90981-13043

NCP6#

12V 21W,ﾀｰﾝｼｸﾞﾅﾙ

 2
90981-15011

NCP6#

12V 21W,ｱﾝﾊﾞｰ,ﾀｰﾝｼｸﾞﾅﾙ

 2
90981-11059

NCP6#

12V 16W,ﾊﾞｯｸ

 2
90981-13044

NCP6#

12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ

 2
90981-13044

NCP6#

12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

NCP6#

12V 16W,ﾊﾞｯｸ

 2
90981-13043

NCP6#

12V 21W,ﾀｰﾝｼｸﾞﾅﾙ

 2
90981-15011

NCP6#

12V 21W,ｱﾝﾊﾞｰ,ﾀｰﾝｼｸﾞﾅﾙ

 2
90981-11059

NCP6#

12V 16W,ﾊﾞｯｸ

 2
90981-13044

NCP6#

12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ

 2
90981-13044

NCP6#

12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

NCP6#

12V 16W,ﾊﾞｯｸ

 2
90981-13043

NCP6#

12V 21W,ﾀｰﾝｼｸﾞﾅﾙ

 2
90981-15011

NCP6#

12V 21W,ｱﾝﾊﾞｰ,ﾀｰﾝｼｸﾞﾅﾙ

 2
90981-11059

NCP6#

12V 16W,ﾊﾞｯｸ

 2
90981-13044

NCP6#

12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ

 2
90981-13044

NCP6#

12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-52460

NCP6#..F,S

 1
81551-52300

NCP6#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81499-52010

NCP6#

 1
81552-52460

NCP6#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-52460

NCP6#

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-52270

NCP6#

 1
81561-52510

NCP6#..F,S

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-52270

NCP6#

 1
81562-52510

NCP6#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-52460

NCP6#

 1
Common parts
76112-16010
82711-33080
90179-06115
