NCP65-HHPNK (2005)

Toyota Ist

Production May 2005 - Jul 2007
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

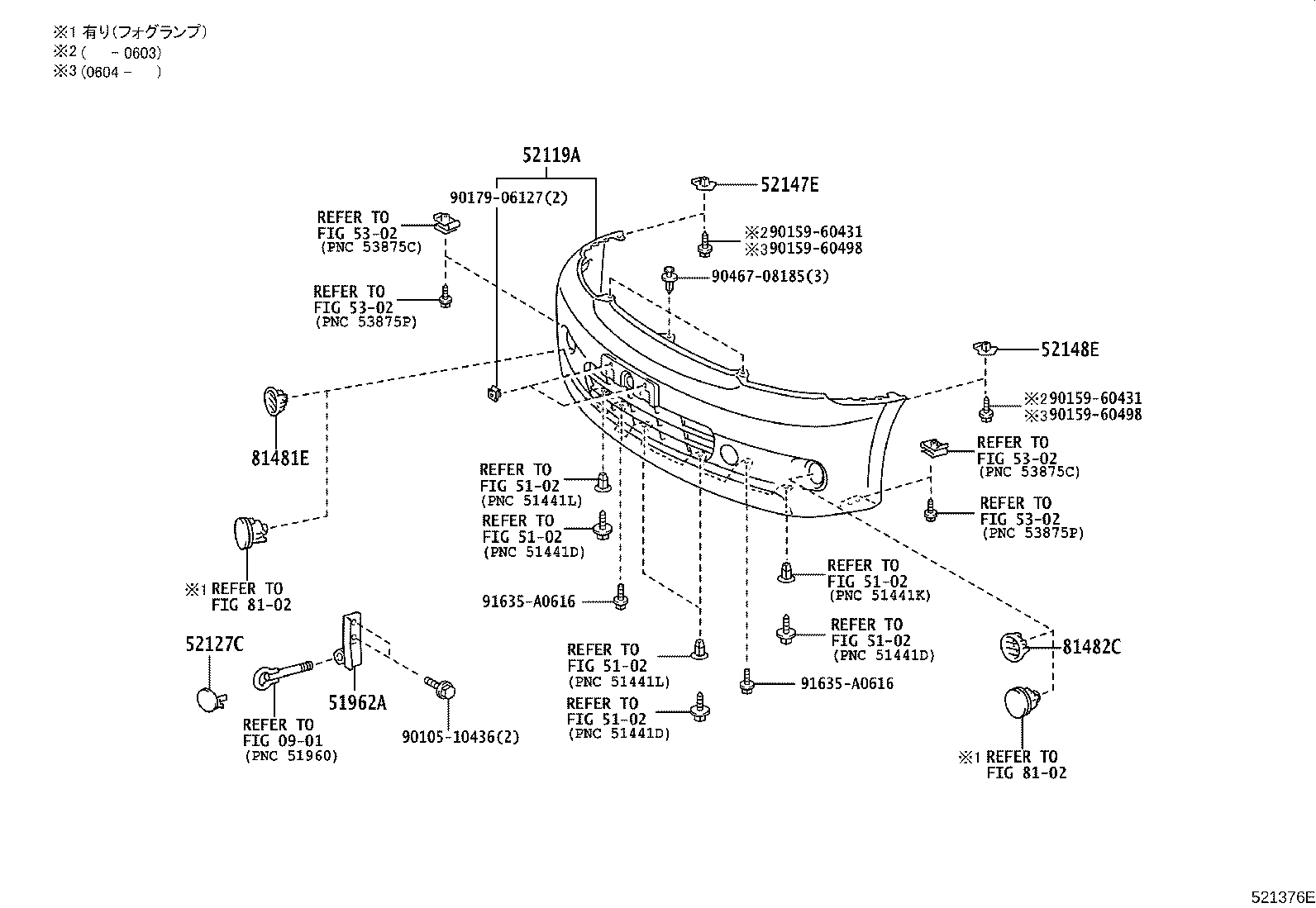

ILLUST NO. 2 OF 2(0505- )F,S

Click highlighted areas on diagram

diagram 0901 5102 5102 5102 5102 5102 5102 51962A 52119A 52127C 52147E 52148E 5302 5302 5302 5302 8102 8102 81481E 81482C 9010510436 9015960431 9015960431 9015960498 9015960498 9017906127 9046708185 91635A0616 91635A0616
Part # Description Qty Price
51962A - HOOK, FRONT LH
51962-52030

NCP6#

 1
51962-52010

NCP6#

 1
52119A - COVER, FRONT BUMPER
52119-52200B0

NCP6#

SILVER ME.,199

 1
52119-52200A1

NCP6#

WHITE PM.,057

 1
52119-52200J1

NCP6#

BLUE ME.,8P1

 1
52119-52200A0

NCP6#

WHITE,068

 1
52119-52200E0

NCP6#

BEIGE ME.,4R0

 1
52119-52200D0

NCP6#

SUPER RED 5,3P0

 1
52119-52200C0

NCP6#

BLACK MC.,209

 1
52119-52440A0

NCP60,65..F

WHITE PM.,057

 1
52119-52440B1

NCP6#..F,S

SILVER M.M.,1E7

 1
52119-52440A1

NCP6#..F,S

WHITE,068

 1
52119-52440A0

NCP60,65..F

有り(ｶﾗｰﾄﾞﾘﾔﾙｰﾌｽﾎﾟｲﾗｰ),WHITE PM.,057

 1
52119-52440C0

NCP6#..F,S

BLACK MC.,209

 1
52119-52440D0

NCP6#..F,S

SUPER RED 5,3P0

 1
52119-52440J1

NCP6#..F,S

LT. BLUE M.M.,8S9

 1
52119-52200J0

NCP6#

DK.BLUE M.M.,8P4

 1
52119-52440J0

NCP6#..F,S

DK.BLUE M.M.,8P4

 1
52119-52440G0

NCP6#..F,S

LT.OLIVE ME.,6U4

 1
52119-52440A2

NCP6#..F,S

WHITE PEARL CS.,064

 1
52127C - COVER, FRONT BUMPER HOLE
52127-52140J1

NCP6#

BLUE ME.,8P1

 1
52127-52140B0

NCP6#

SILVER ME.,199

 1
52127-52140D0

NCP6#

SUPER RED 5,3P0

 1
52127-52140A1

NCP60,65..F

WHITE PM.,057

 1
52127-52140A0

NCP6#..F,S

WHITE,068

 1
52127-52140A0

NCP6#

WHITE,068

 1
52127-52140A1

NCP6#

WHITE PM.,057

 1
52127-52140J0

NCP6#

DK.BLUE M.M.,8P4

 1
52127-52140E0

NCP6#

BEIGE ME.,4R0

 1
52127-52140D0

NCP6#..F,S

SUPER RED 5,3P0

 1
52127-52140C0

NCP6#

BLACK MC.,209

 1
52127-52140A1

NCP60,65..F

有り(ｶﾗｰﾄﾞﾘﾔﾙｰﾌｽﾎﾟｲﾗｰ),WHITE PM.,057

 1
52127-52140J2

NCP6#..F,S

LT. BLUE M.M.,8S9

 1
52127-52140C0

NCP6#..F,S

BLACK MC.,209

 1
52127-52140A2

NCP6#..F,S

WHITE PEARL CS.,064

 1
52127-52140G0

NCP6#..F,S

LT.OLIVE ME.,6U4

 1
52127-52140J0

NCP6#..F,S

DK.BLUE M.M.,8P4

 1
52127-52140B1

NCP6#..F,S

SILVER M.M.,1E7

 1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52147-16080

NCP6#

 1
52147-16080

NCP6#

 1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52147-16080

NCP6#

 1
52147-16080

NCP6#

 1
81481E - COVER, FOG LAMP, RH
81481-52040

NCP60,65..F

 1
81481-52040

NCP60,65..F

 1
81482C - COVER, FOG LAMP, LH
81482-52020

NCP60,65..F

 1
81482-52020

NCP60,65..F

 1
Common parts
90105-10436
90159-60431
90159-60498
90179-06127
90467-08185
91635-A0616
Linked diagrams
0901
5102
5302
8102

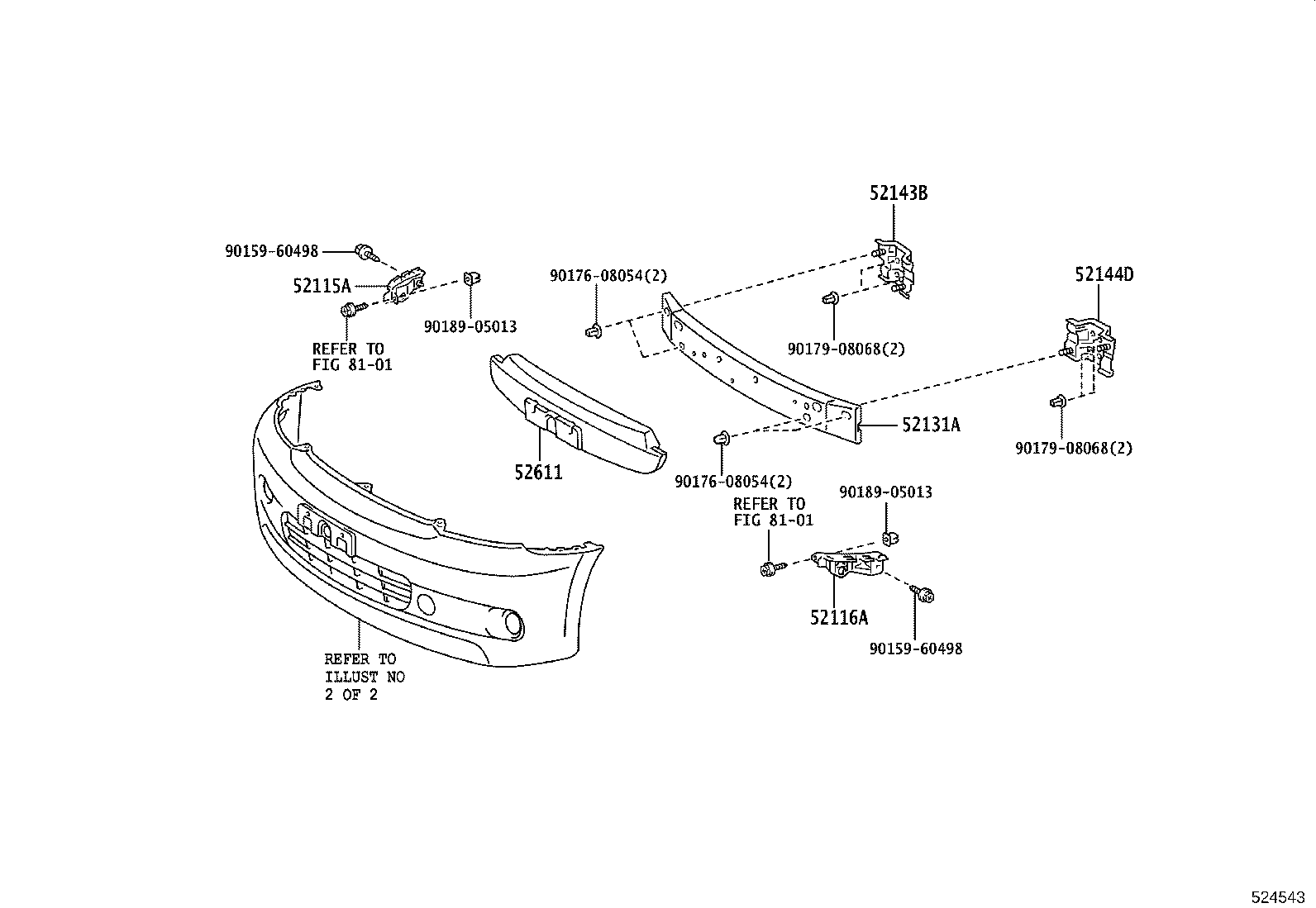

ILLUST NO. 1 OF 2(0505- )F,S

Click highlighted areas on diagram

diagram 52115A 52116A 52131A 52143B 52144D 52611 8101 8101 9015960498 9015960498 9017608054 9017608054 9017908068 9017908068 9018905013 9018905013
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-52071

NCP6#

 1
52115-52030

NCP6#

 1
52115-52070

NCP6#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-52060

NCP6#

 1
52116-52061

NCP6#

 1
52116-52030

NCP6#

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52050

NCP6#

 1
52131-52050

NCP6#

 1
52143B - BRACKET, FRONT BUMPER SIDE
52143-52050

NCP6#

 1
52143-52050

NCP6#

 1
52144D - BRACKET, FRONT BUMPER SIDE, LH
52144-52050

NCP6#

 1
52144-52050

NCP6#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52020

NCP6#

 1
52611-52020

NCP6#..F,S

 1
Common parts
90159-60498
90176-08054
90179-08068
90189-05013
Linked diagrams
8101
