NCP65-HHPNK (2005)
Toyota Ist
Production
May 2005
-
Jul 2007
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

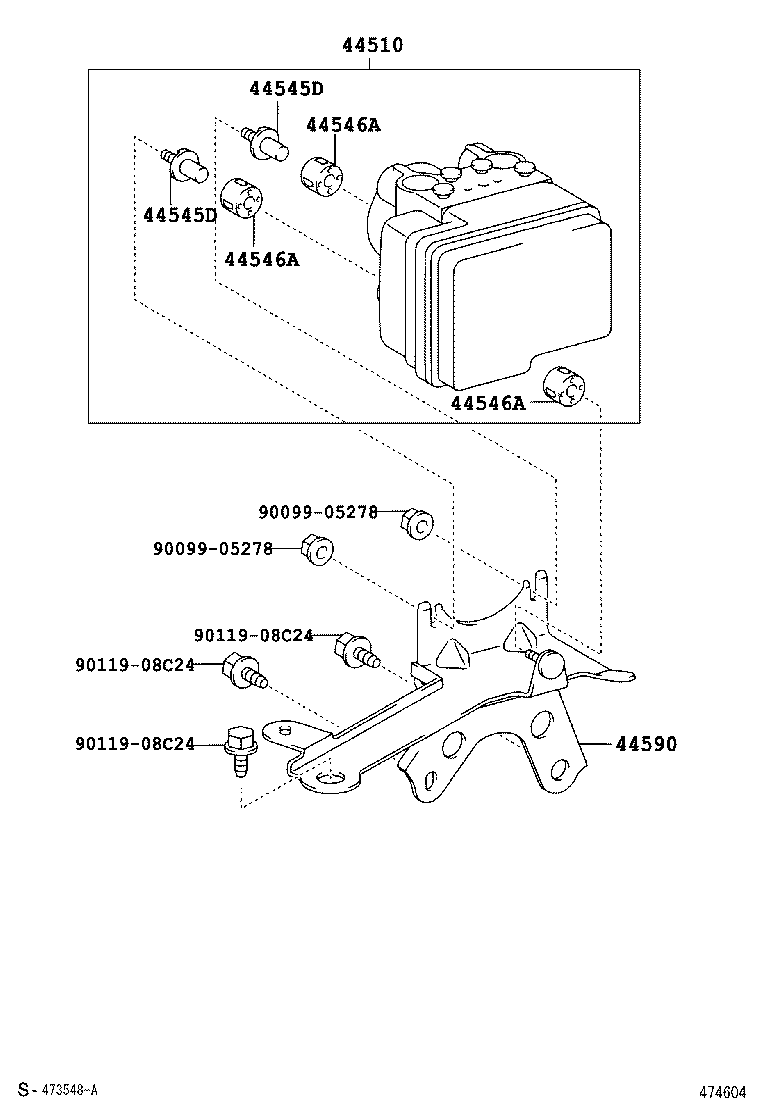

ILLUST NO. 2 OF 2(0505- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52530 |
NCP65 |
1 | ||
| 44050-52270 |
NCP65 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-63010 |
NCP6# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-63010 |
NCP6# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-63010 |
NCP6# |
3 | ||
| 44546-12100 |
NCP6# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-63010 |
NCP6# |
3 | ||
| 44546-12100 |
NCP6# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-63010 |
NCP6# |
3 | ||
| 44546-12100 |
NCP6# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52030 |
NCP6# |
1 | ||
| 44590-52110 |
NCP6# |
1 | ||
| Common parts | ||||
| 90099-05278 | ||||
| 90119-08C24 | ||||

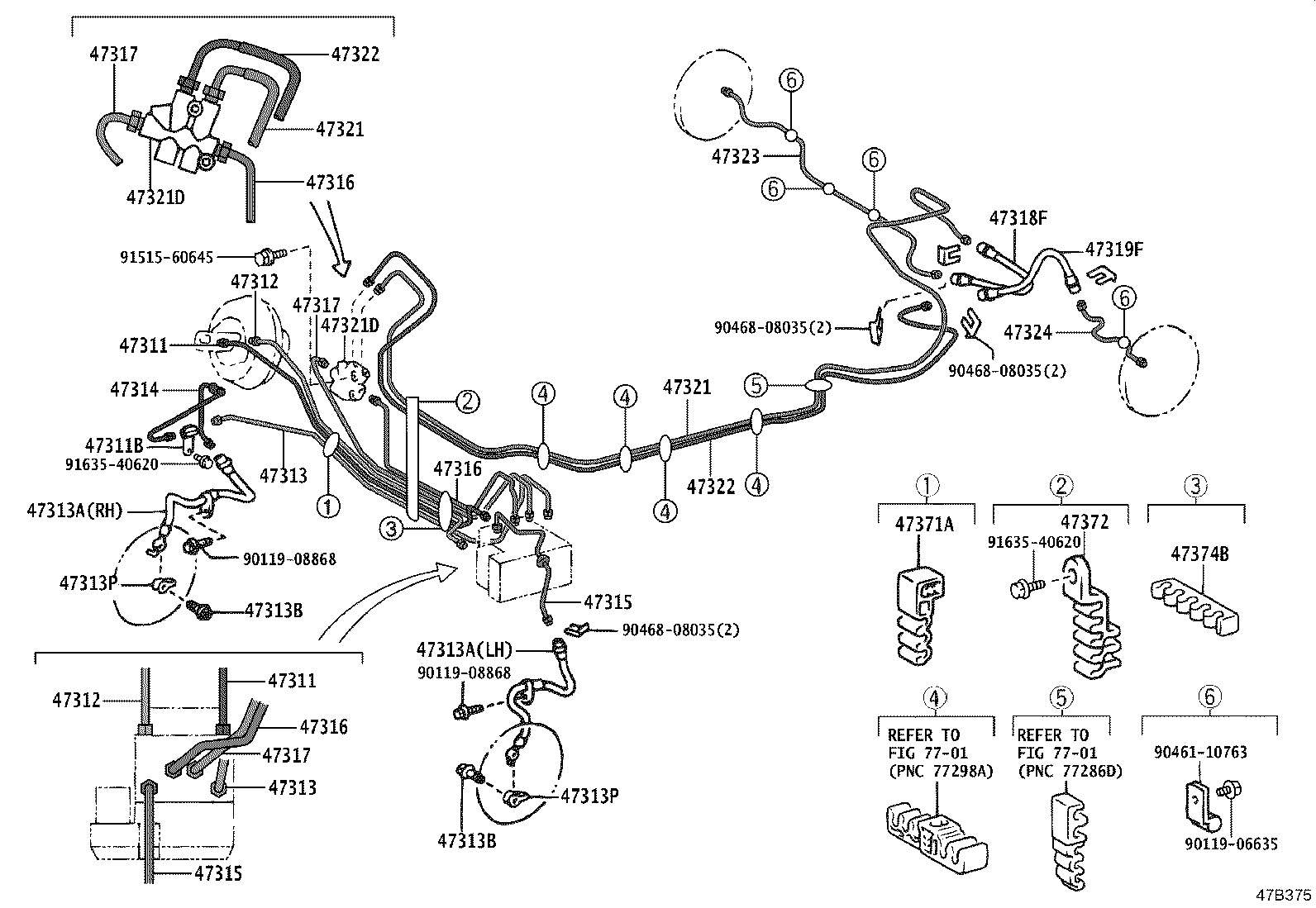

ILLUST NO. 1 OF 2(0505- )NCP65
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52091 |
NCP6# |
1 | ||
| 47311-46040 |
NCP6# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52091 |
NCP6# |
1 | ||
| 47311-46040 |
NCP6# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10235 |
NCP6# |
1 | ||
| 90412-10235 |
NCP6# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52091 |
NCP6# |
1 | ||
| 47312-46040 |
NCP6# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52091 |
NCP6# |
1 | ||
| 47312-46040 |
NCP6# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52100 |
NCP6# |
1 | ||
| 47313-52041 |
NCP6# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52100 |
NCP6# |
1 | ||
| 47313-52041 |
NCP6# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C33 |
NCP65..F,S 右側 |
1 | ||
| 90947-02C34 |
NCP65..F,S 左側 |
1 | ||
| 90947-02D79 |
NCP65 左側 |
1 | ||
| 90947-02D78 |
NCP65 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C33 |
NCP65..F,S 右側 |
1 | ||
| 90947-02C34 |
NCP65..F,S 左側 |
1 | ||
| 90947-02D79 |
NCP65 左側 |
1 | ||
| 90947-02D78 |
NCP65 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP6# |
2 | ||
| 90401-10058 |
NCP6# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP6# |
2 | ||
| 90401-10058 |
NCP6# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP6# |
2 | ||
| 47389-50020 |
NCP6# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP6# |
2 | ||
| 47389-50020 |
NCP6# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52011 |
NCP6# |
1 | ||
| 47314-52011 |
NCP6# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52051 |
NCP6# |
1 | ||
| 47315-52110 |
NCP6# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52051 |
NCP6# |
1 | ||
| 47315-52110 |
NCP6# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52090 |
NCP6# |
1 | ||
| 47316-52031 |
NCP6# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52090 |
NCP6# |
1 | ||
| 47316-52031 |
NCP6# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52090 |
NCP6# |
1 | ||
| 47316-52031 |
NCP6# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52031 |
NCP6# |
1 | ||
| 47317-52090 |
NCP6# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52031 |
NCP6# |
1 | ||
| 47317-52090 |
NCP6# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52031 |
NCP6# |
1 | ||
| 47317-52090 |
NCP6# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C37 |
NCP65..F,S |
1 | ||
| 90947-02D74 |
NCP65 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C38 |
NCP65..F,S |
1 | ||
| 90947-02D75 |
NCP65 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52021 |
NCP65 |
1 | ||
| 47321-52021 |
NCP65 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52021 |
NCP65 |
1 | ||
| 47321-52021 |
NCP65 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP6# |
1 | ||
| 90904-12088 |
NCP6# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP6# |
1 | ||
| 90904-12088 |
NCP6# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52021 |
NCP65 |
1 | ||
| 47322-52021 |
NCP65 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52021 |
NCP65 |
1 | ||
| 47322-52021 |
NCP65 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52031 |
NCP65 |
1 | ||
| 47323-52031 |
NCP65 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52031 |
NCP65 |
1 | ||
| 47324-52031 |
NCP65 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCP6# |
1 | ||
| 47371-52010 |
NCP6# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP6# |
1 | ||
| 47372-52010 |
NCP6# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01A18 |
NCP6# |
1 | ||
| 90949-01A18 |
NCP6# |
1 | ||
| Common parts | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90461-10763 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91635-40620 | ||||
| Linked diagrams | ||||
| 7701 | ||||
