NCP65-HHPGK (2002)

Toyota Ist

Production Apr 2002 - May 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0204- )

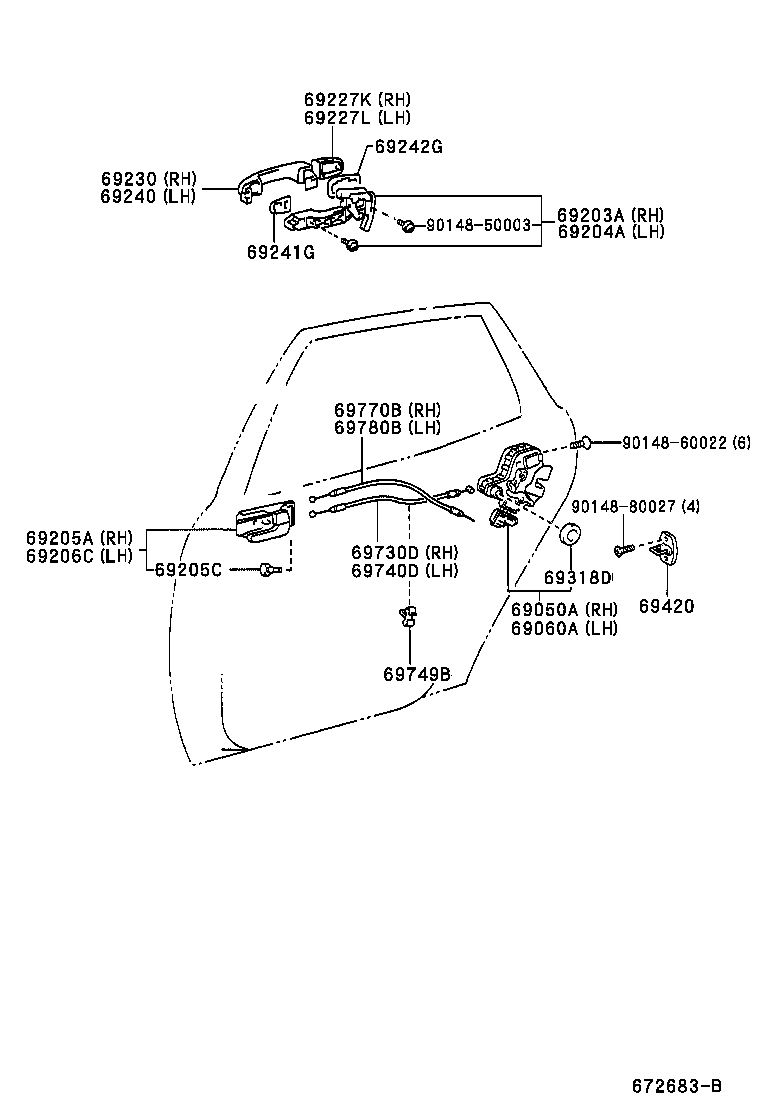

Click highlighted areas on diagram

diagram 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227K 69227L 69230 69240 69241G 69242G 69318D 69420 69730D 69740D 69749B 69770B 69780B 9014850003 9014860022 9014880027
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-13090

NCP6#

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-13090

NCP6#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-52020

NCP6#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-52020

NCP6#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-52050B0

NCP60,65..F

LT.GRAY,TRIM9#

 1
69205-52050B1

NCP6#

DK.GRAY,TRIM1#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

NCP6#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-52050B1

NCP6#

DK.GRAY,TRIM1#

 1
69206-52050B0

NCP60,65..F

LT.GRAY,TRIM9#

 1
69227K - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-42070H3

NCP6#..F,S

ｱｸｱﾊﾞｰｼﾞｮﾝ,LT.AQUA ME.OP.,761

 1
69227-42070C2

NCP6#

BLACK MC.,209

 1
69227-42070F4

NCP6#

YELLOW PM.,595

 1
69227-42070J1

NCP6#

BLUE ME.,8P1

 1
69227-42070P0

NCP6#

SILVER M.M.,1E7

 1
69227-42060

NCP60,65..F

材料着色(黒),Eｴﾃﾞｨｼｮﾝ,BLACK(塗装なし)

 1
69227-42070B2

NCP6#

SILVER ME.,199

 1
69227-42070E2

NCP6#

BEIGE ME.,4R0

 1
69227-42070A4

NCP6#

WHITE PM.,057

 1
69227-42070H3

NCP6#

LT.AQUA ME.OP.,761

 1
69227-42070P1

NCP6#

GRAY M.M.,1E3

 1
69227-42070J2

NCP6#

DK.BLUE M.M.,8P4

 1
69227-42070X0

NCP6#

SUPER RED 5,3P0

 1
69227-42070A8

NCP6#

WHITE,068

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-42070E2

NCP6#

BEIGE ME.,4R0

 1
69227-42070A4

NCP6#

WHITE PM.,057

 1
69227-42070A8

NCP6#

WHITE,068

 1
69227-42070F4

NCP6#

YELLOW PM.,595

 1
69227-42070H3

NCP6#..F,S

ｱｸｱﾊﾞｰｼﾞｮﾝ,LT.AQUA ME.OP.,761

 1
69227-42070J1

NCP6#

BLUE ME.,8P1

 1
69227-42070J2

NCP6#

DK.BLUE M.M.,8P4

 1
69227-42070B2

NCP6#

SILVER ME.,199

 1
69227-42070P1

NCP6#

GRAY M.M.,1E3

 1
69227-42070P0

NCP6#

SILVER M.M.,1E7

 1
69227-42070H3

NCP6#

LT.AQUA ME.OP.,761

 1
69227-42060

NCP60,65..F

材料着色(黒),Eｴﾃﾞｨｼｮﾝ,BLACK(塗装なし)

 1
69227-42070X0

NCP6#

SUPER RED 5,3P0

 1
69227-42070C2

NCP6#

BLACK MC.,209

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-12220J4

NCP6#

BLUE ME.,8P1

 1
69211-12220A1

NCP6#

WHITE PM.,057

 1
69211-12220A8

NCP6#

WHITE,068

 1
69211-12220H3

NCP6#..F,S

ｱｸｱﾊﾞｰｼﾞｮﾝ,LT.AQUA ME.OP.,761

 1
69211-12220B0

NCP6#

SILVER ME.,199

 1
69211-42010

NCP60,65..F

塗装不要,Eｴﾃﾞｨｼｮﾝ,BLACK(塗装なし)

 1
69211-12220E2

NCP6#

BEIGE ME.,4R0

 1
69211-12220H3

NCP6#

LT.AQUA ME.OP.,761

 1
69211-12220P0

NCP6#

SILVER M.M.,1E7

 1
69211-12220X0

NCP6#

SUPER RED 5,3P0

 1
69211-12220P1

NCP6#

GRAY M.M.,1E3

 1
69211-12220J0

NCP6#

DK.BLUE M.M.,8P4

 1
69211-12220F4

NCP6#

YELLOW PM.,595

 1
69211-12220C2

NCP6#

BLACK MC.,209

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-12220A1

NCP6#

WHITE PM.,057

 1
69211-12220B0

NCP6#

SILVER ME.,199

 1
69211-12220E2

NCP6#

BEIGE ME.,4R0

 1
69211-12220C2

NCP6#

BLACK MC.,209

 1
69211-12220A8

NCP6#

WHITE,068

 1
69211-12220H3

NCP6#..F,S

ｱｸｱﾊﾞｰｼﾞｮﾝ,LT.AQUA ME.OP.,761

 1
69211-12220J4

NCP6#

BLUE ME.,8P1

 1
69211-12220J0

NCP6#

DK.BLUE M.M.,8P4

 1
69211-12220F4

NCP6#

YELLOW PM.,595

 1
69211-12220P1

NCP6#

GRAY M.M.,1E3

 1
69211-12220H3

NCP6#

LT.AQUA ME.OP.,761

 1
69211-12220P0

NCP6#

SILVER M.M.,1E7

 1
69211-42010

NCP60,65..F

塗装不要,Eｴﾃﾞｨｼｮﾝ,BLACK(塗装なし)

 1
69211-12220X0

NCP6#

SUPER RED 5,3P0

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-48020

NCP6#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-42010

NCP6#

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

NCP6#

 2
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

NCP6#

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-52070

NCP6#

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-52070

NCP6#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040

NCP6#

 2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-52020

NCP6#

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-52020

NCP6#

 1
Common parts
90148-50003
90148-60022
90148-80027
