NCP65-HHPGK (2002)

Toyota Ist

Production Apr 2002 - May 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0204-0304)

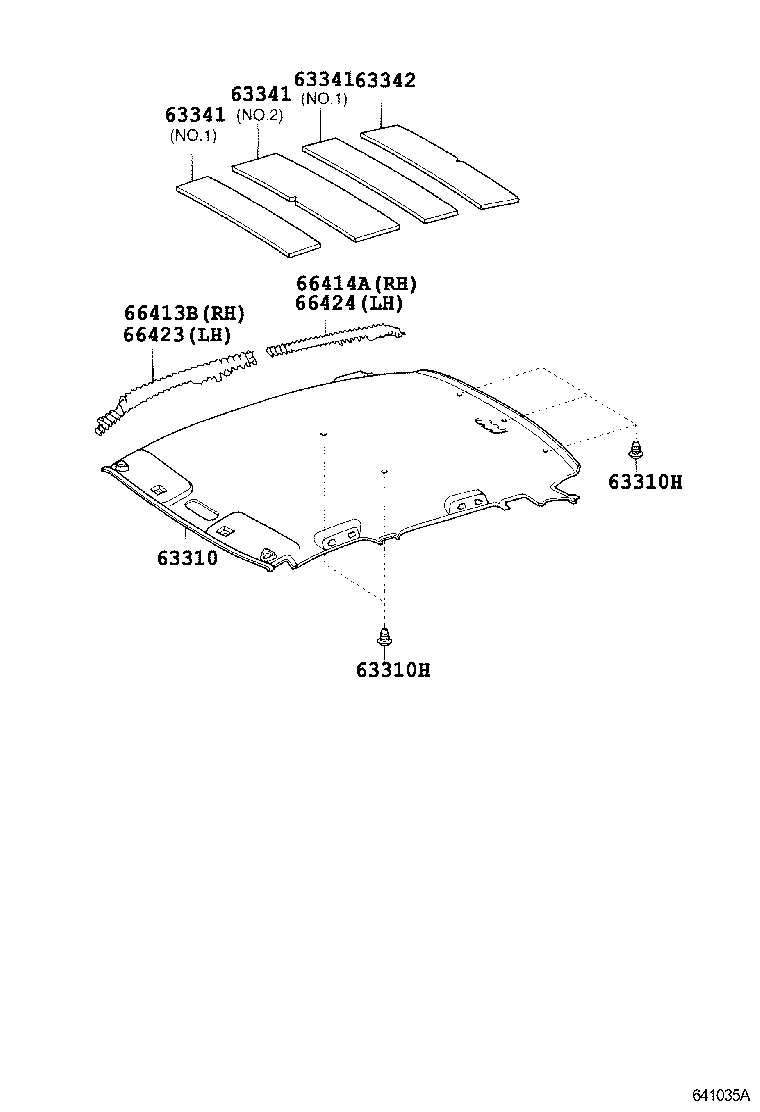

Click highlighted areas on diagram

diagram 63310 63310H 63310H 63341 63341 63341 63342 66413B 66414A 66423 66424
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-52420B0

NCP61,65..S

LT. GRAY,TRIM1#

 1
63310-52420B0

NCP60,65..F

LT. GRAY,TRIM1#,9#

 1
63310-52800B0

NCP61,65..S

LT. GRAY,TRIM1#

 1
63310-52800B0

NCP60,65..F

LT. GRAY,TRIM1#,9#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-08213B0

NCP61,65..S

LT.GRAY,TRIM1#

 5
90467-08213B0

NCP60,65..F

LT.GRAY,TRIM1#,9#

 5
63310H - CLIP(FOR ROOF HEADLINING)
90467-08213B0

NCP61,65..S

LT.GRAY,TRIM1#

 5
90467-08213B0

NCP60,65..F

LT.GRAY,TRIM1#,9#

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP6#

NO.1

 2
63343-12050

NCP6#

NO.2

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP6#

NO.1

 2
63343-12050

NCP6#

NO.2

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP6#

NO.1

 2
63343-12050

NCP6#

NO.2

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-52080

NCP6#

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52090

NCP6#..F,S

 1
66413-52130

NCP6#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52150

NCP6#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝ

 1
66414-52101

NCP6#

 1
66414-52100

NCP6#..F,S

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52080

NCP6#..F,S

 1
66423-52150

NCP6#

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52140

NCP6#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝ

 1
66424-52060

NCP6#..F,S

 1
66424-52061

NCP6#

 1

(0304- )

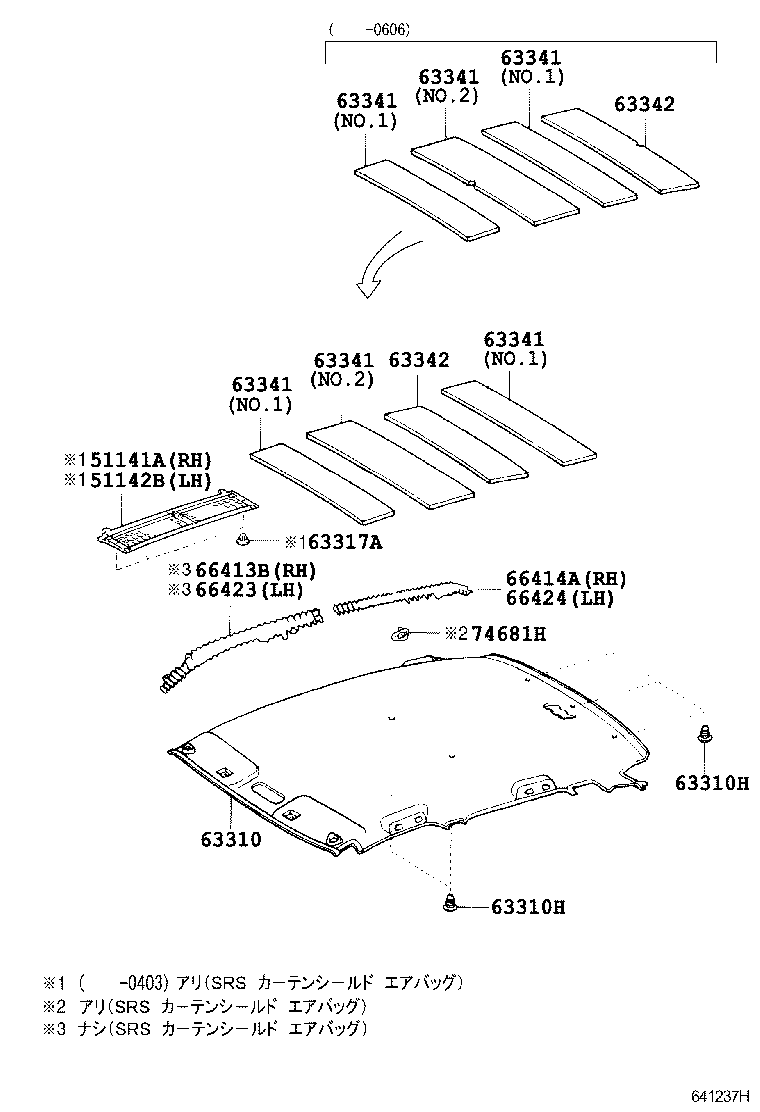

Click highlighted areas on diagram

diagram 51141A 51142B 63310 63310H 63310H 63317A 63341 63341 63341 63341 63341 63341 63342 63342 66413B 66414A 66423 66424 74681H
Part # Description Qty Price
51141A - REINFORCEMENT, SIDE RAIL, RH
51141-52010

NCP6#..F,S

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝ

 1
51142B - REINFORCEMENT, SIDE RAIL, LH
51142-52010

NCP6#..F,S

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝ

 1
63310 - HEADLINING ASSY, ROOF
63310-52420B0

NCP61,65..S

LT. GRAY,TRIM1#

 1
63310-52420B0

NCP60,65..F

LT. GRAY,TRIM1#,9#

 1
63310-52800B0

NCP61,65..S

LT. GRAY,TRIM1#

 1
63310-52800B0

NCP60,65..F

LT. GRAY,TRIM1#,9#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-08213B0

NCP61,65..S

LT.GRAY,TRIM1#

 5
90467-08213B0

NCP60,65..F

LT.GRAY,TRIM1#,9#

 5
63310H - CLIP(FOR ROOF HEADLINING)
90467-08213B0

NCP61,65..S

LT.GRAY,TRIM1#

 5
90467-08213B0

NCP60,65..F

LT.GRAY,TRIM1#,9#

 5
63317A - RETAINER, ROOF HEADLINING
63317-52030

NCP6#..F,S

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝ

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP6#

NO.1

 2
63343-12050

NCP6#

NO.2

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP6#

NO.1

 2
63343-12050

NCP6#

NO.2

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP6#

NO.1

 2
63343-12050

NCP6#

NO.2

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP6#

NO.1

 2
63343-12050

NCP6#

NO.2

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP6#

NO.1

 2
63343-12050

NCP6#

NO.2

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP6#

NO.1

 2
63343-12050

NCP6#

NO.2

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-52080

NCP6#

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-52080

NCP6#

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52090

NCP6#..F,S

 1
66413-52130

NCP6#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52150

NCP6#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝ

 1
66414-52101

NCP6#

 1
66414-52100

NCP6#..F,S

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52080

NCP6#..F,S

 1
66423-52150

NCP6#

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52140

NCP6#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝ

 1
66424-52060

NCP6#..F,S

 1
66424-52061

NCP6#

 1
74681H - RETAINER, ASSIST GRIP
74681-52020

NCP6#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝ

 8
