NCP65-HHPGK (2002)

Toyota Ist

Production Apr 2002 - May 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0204- )

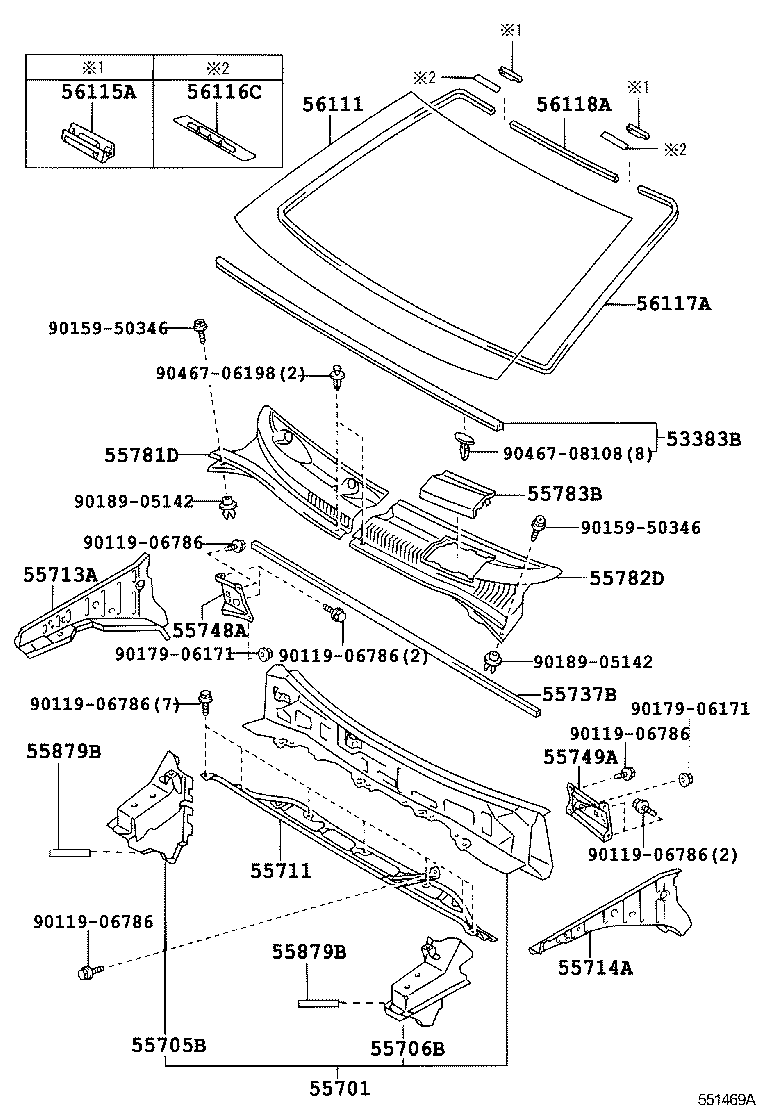

Click highlighted areas on diagram

diagram 53383B 55701 55705B 55706B 55711 55713A 55714A 55737B 55748A 55749A 55781D 55782D 55783B 55879B 55879B 56111 56115A 56116C 56117A 56118A 9011906786 9011906786 9011906786 9011906786 9011906786 9011906786 9015950346 9015950346 9017906171 9017906171 9018905142 9018905142 9046706198 9046708108
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-52060

NCP6#

 1
55701 - PANEL SUB-ASSY, COWL
55700-52090

NCP6#

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-52050

NCP6#

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-52050

NCP6#

 1
55711 - PANEL, COWL TOP, OUTER
55701-52090

NCP6#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-52060

NCP6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-52060

NCP6#

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-52010

NCP6#

 1
55748A - BRACE, COWL TOP INNER TO PILLAR
55748-52060

NCP6#

 1
55749A - BRACE, COWL TOP INNER TO PILLAR, LH
55749-52050

NCP6#

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-52130

NCP6#

 1
55781-52140

NCP6#

寒冷地仕様

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-52130

NCP6#

 1
55782-52140

NCP6#

寒冷地仕様

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-52100

NCP6#

 1
55879B - SEAL, COWL VENT
55879-52030

NCP6#

 2
55879B - SEAL, COWL VENT
55879-52030

NCP6#

 2
56111 - GLASS, WINDSHIELD
56101-52140

NCP6#..F,S

*LAM,T=4.56,ｸﾞﾘｰﾝ

 1
56101-52142

NCP6#

*LAM,T=4.56,ｸﾞﾘｰﾝ

 1
56101-52141

NCP6#..F,S

*LAM,T=4.56,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NCP6#

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NCP6#

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-52010

NCP6#

*D,L=3191

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-52040

NCP6#

*D,L=593

 1
Common parts
90119-06786
90159-50346
90179-06171
90189-05142
90467-06198
90467-08108
