NCP65-HHPGK (2002)
Toyota Ist
Production
Apr 2002
-
May 2005
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

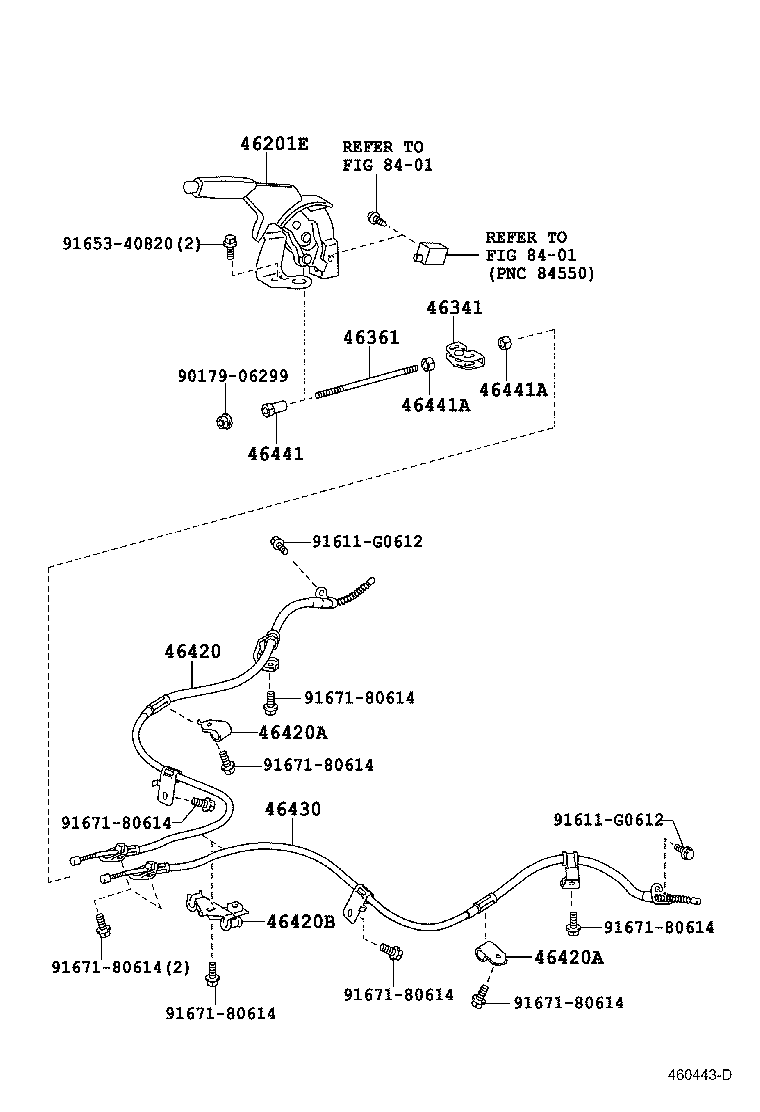

(0204-0302)NCP65
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-52050B1 |
NCP61,65..S DK.GRAY,TRIM1# |
1 | ||
| 46201-52050B1 |
NCP60,65..F DK.GRAY,TRIM1#,9# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-52010 |
NCP6# |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-52010 |
NCP6# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-52031 |
NCP65 |
1 | ||
| 46420-52030 |
NCP65..F,S |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01B83 |
NCP65..F,S |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01B83 |
NCP65..F,S |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46451-52010 |
NCP65 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-52031 |
NCP65 |
1 | ||
| 46430-52030 |
NCP65..F,S |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-52010 |
NCP6# |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90170-06014 |
NCP6# |
2 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90170-06014 |
NCP6# |
2 | ||
| Common parts | ||||
| 90179-06299 | ||||
| 91611-G0612 | ||||
| 91653-40820 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

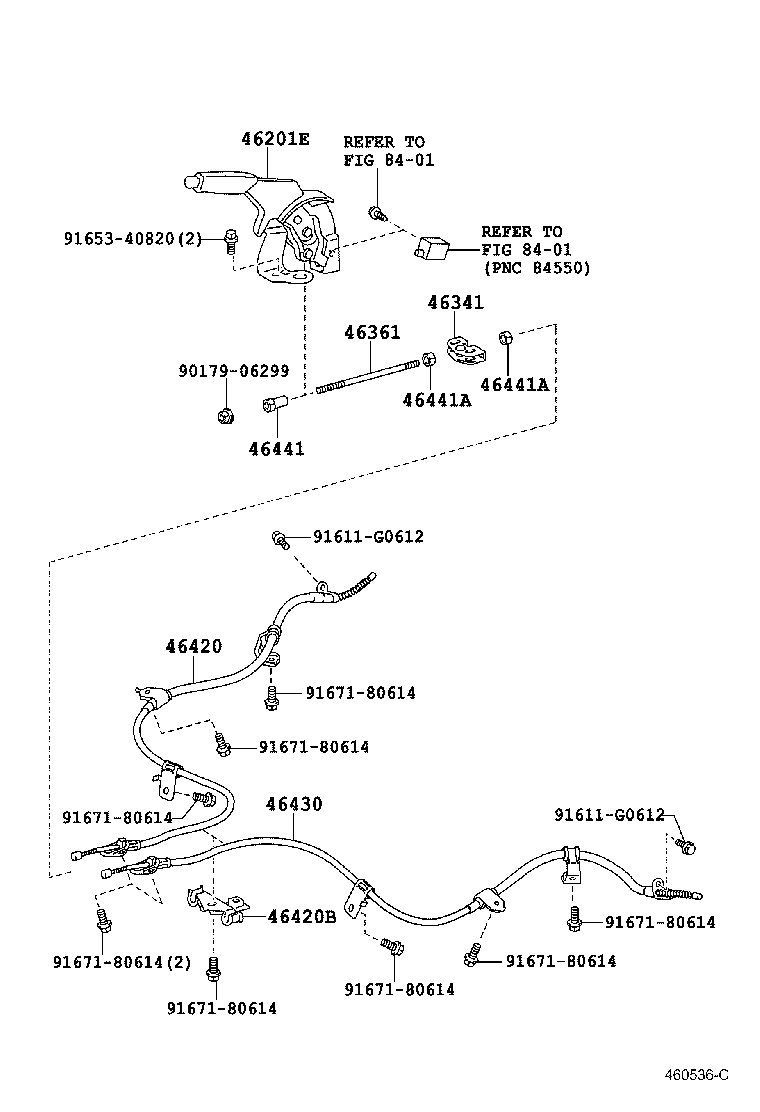

(0302- )NCP65
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-52050B1 |
NCP61,65..S DK.GRAY,TRIM1# |
1 | ||
| 46201-52050B1 |
NCP60,65..F DK.GRAY,TRIM1#,9# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-52010 |
NCP6# |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-52010 |
NCP6# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-52031 |
NCP65 |
1 | ||
| 46420-52030 |
NCP65..F,S |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46451-52010 |
NCP65 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-52031 |
NCP65 |
1 | ||
| 46430-52030 |
NCP65..F,S |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-52010 |
NCP6# |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90170-06014 |
NCP6# |
2 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90170-06014 |
NCP6# |
2 | ||
| Common parts | ||||
| 90179-06299 | ||||
| 91611-G0612 | ||||
| 91653-40820 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
