NCP61-HHPGK (2002)
Toyota Ist
(0204-0505)

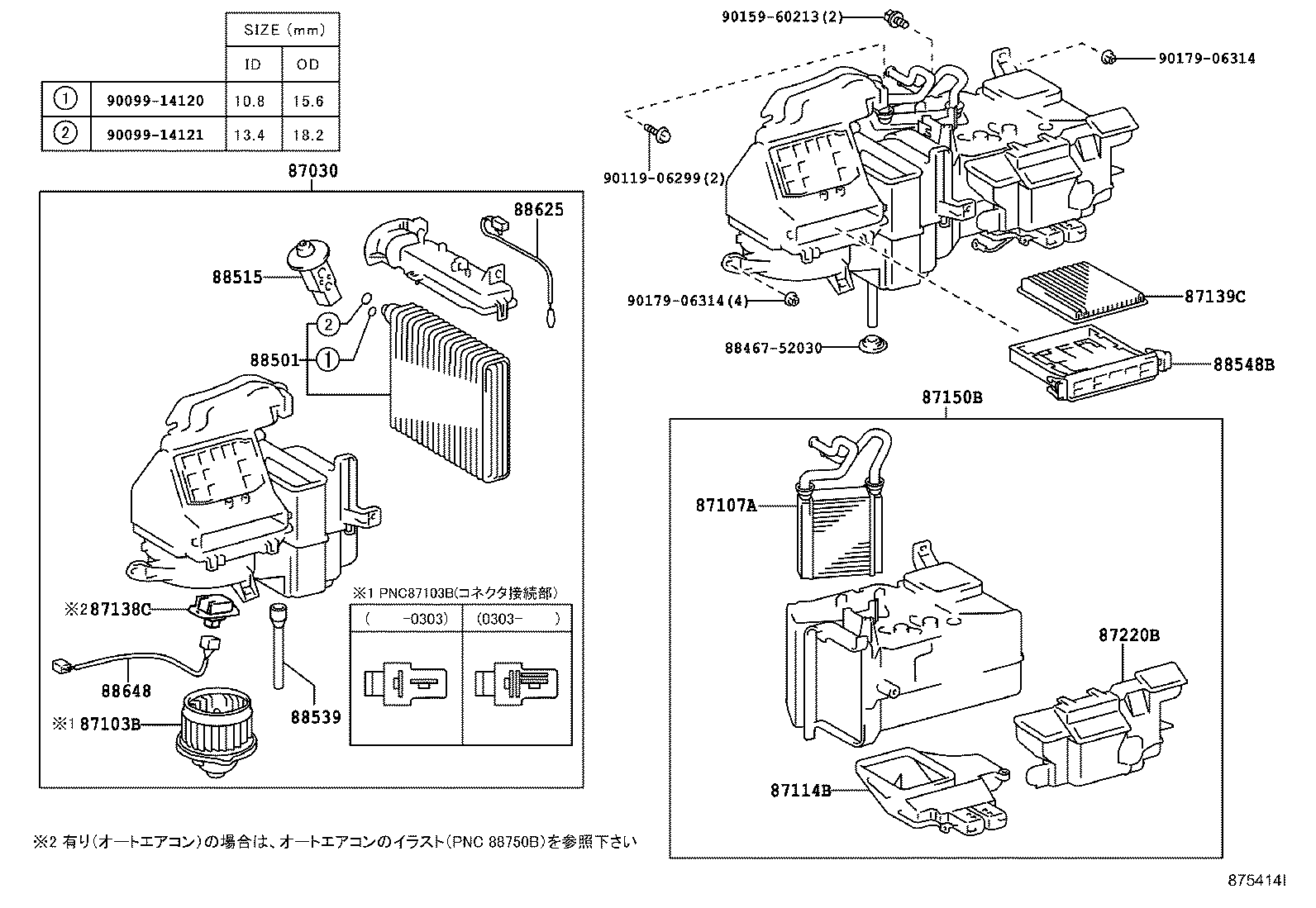

ﾏﾆｭｱﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52040 |
NCP6# 寒冷地仕様,品番ﾗﾍﾞﾙ=87030−52040 |
1 | ||
| 87030-52360 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52041 |
NCP6# 寒冷地仕様,品番ﾗﾍﾞﾙ=87030−52041 |
1 | ||
| 87030-52361 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87030-52360 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87030-52010 |
NCP6# |
1 | ||
| 87030-52380 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52361 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52380 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87030-52011 |
NCP6# |
1 | ||
| 87030-52381 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52361 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52381 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87103-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87103-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87103-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52070 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52010 |
NCP6# |
1 | ||
| 87103-52070 |
NCP6# 寒冷地仕様 |
1 | ||
| 87103-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52050 |
NCP6# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52010 |
NCP6# |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87114-52010 |
NCP6# |
1 | ||
| 87114-52020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87114-52020 |
NCP6# 寒冷地仕様 |
1 | ||
| 87114-52020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
NCP6# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-44010 |
NCP6# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-52010 |
NCP6# |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87139-12010 |
NCP6# ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87139-12010 |
NCP6# 微細塵ﾌｨﾙﾀ |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52250 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87150-52240 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87150-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87150-52240 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52250 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52240 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52010 |
NCP6# |
1 | ||
| 87150-52250 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52010 |
NCP6# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52070 |
NCP6# 品番ﾗﾍﾞﾙ=87030−52041 |
1 | ||
| 88501-52010 |
NCP6# 品番ﾗﾍﾞﾙ=87030−52040 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP6# |
1 | ||
| 88515-52040 |
NCP6# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP6# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP6# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52090 |
NCP6# |
1 | ||
| 88625-52070 |
NCP6# |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88625-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52020 |
NCP6# |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP6# 寒冷地仕様 |
1 | ||
| 88648-52020 |
NCP6# |
1 | ||
| 88648-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06299 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
(0204- )

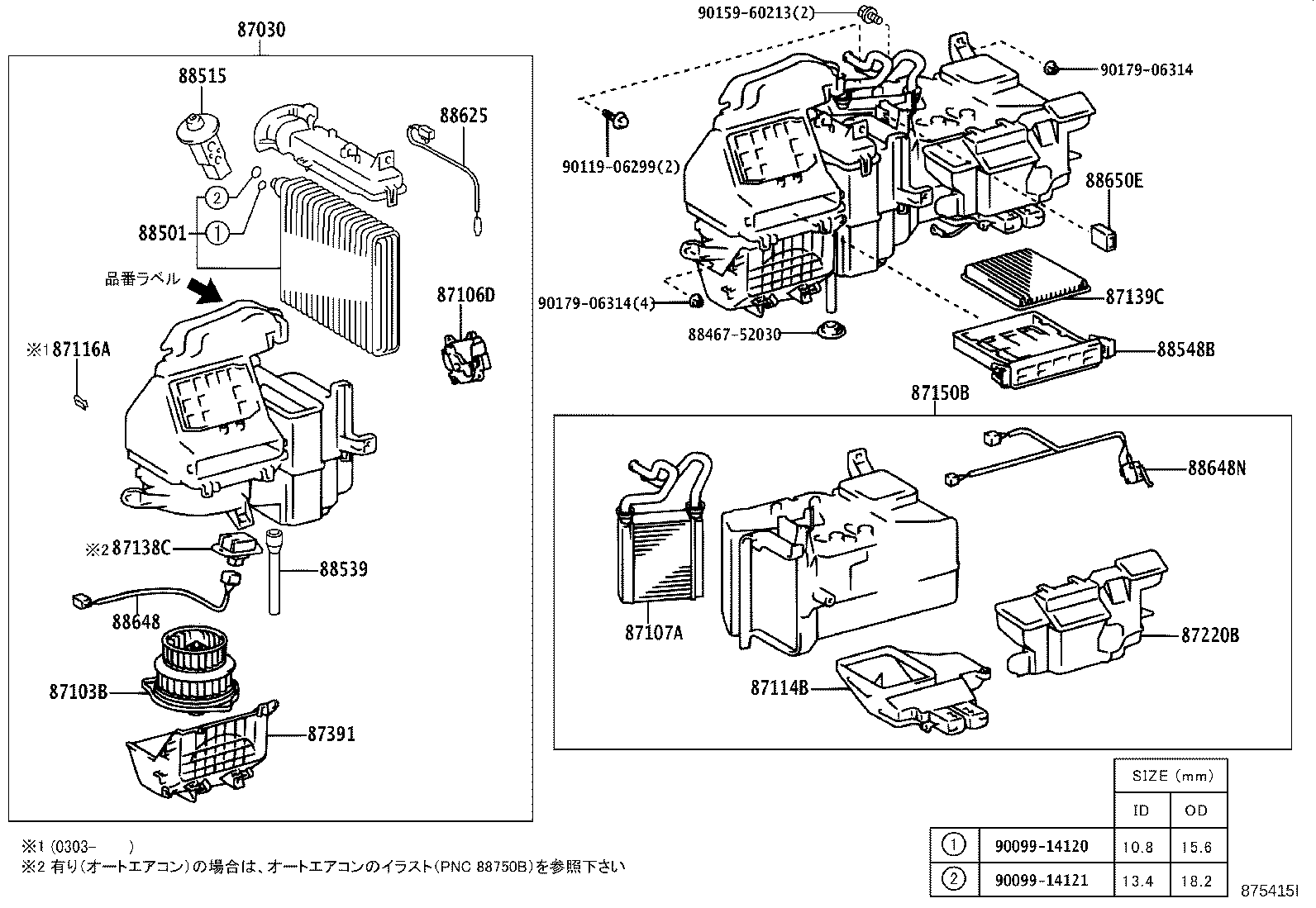

ﾏﾆｭｱﾙｴｱｺﾝ--ｶﾝﾚｲﾁｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52040 |
NCP6# 寒冷地仕様,品番ﾗﾍﾞﾙ=87030−52040 |
1 | ||
| 87030-52360 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52041 |
NCP6# 寒冷地仕様,品番ﾗﾍﾞﾙ=87030−52041 |
1 | ||
| 87030-52361 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87030-52360 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87030-52010 |
NCP6# |
1 | ||
| 87030-52380 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52361 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52380 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87030-52011 |
NCP6# |
1 | ||
| 87030-52381 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52361 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52381 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87103-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87103-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87103-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52070 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52010 |
NCP6# |
1 | ||
| 87103-52070 |
NCP6# 寒冷地仕様 |
1 | ||
| 87103-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52050 |
NCP6# |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87106-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87106-52030 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52030 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52010 |
NCP6# |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87114-52010 |
NCP6# |
1 | ||
| 87114-52020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87114-52020 |
NCP6# 寒冷地仕様 |
1 | ||
| 87114-52020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87116-14010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87116-14010 |
NCP6# 寒冷地仕様 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
NCP6# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-44010 |
NCP6# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-52010 |
NCP6# |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87139-12010 |
NCP6# ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87139-12010 |
NCP6# 微細塵ﾌｨﾙﾀ |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52250 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87150-52240 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87150-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87150-52240 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52250 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52240 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52010 |
NCP6# |
1 | ||
| 87150-52250 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52010 |
NCP6# |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87391-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87391-52011 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87391-52011 |
NCP6# 寒冷地仕様 |
1 | ||
| 87391-52011 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87391-52010 |
NCP6# 寒冷地仕様 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52070 |
NCP6# 品番ﾗﾍﾞﾙ=87030−52041 |
1 | ||
| 88501-52010 |
NCP6# 品番ﾗﾍﾞﾙ=87030−52040 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP6# |
1 | ||
| 88515-52040 |
NCP6# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP6# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP6# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52090 |
NCP6# |
1 | ||
| 88625-52070 |
NCP6# |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88625-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52020 |
NCP6# |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP6# 寒冷地仕様 |
1 | ||
| 88648-52020 |
NCP6# |
1 | ||
| 88648-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-52010 |
NCP6# 寒冷地仕様 |
1 | ||
| 88648-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88648-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52150 |
NCP6# 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06299 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
(0204- )

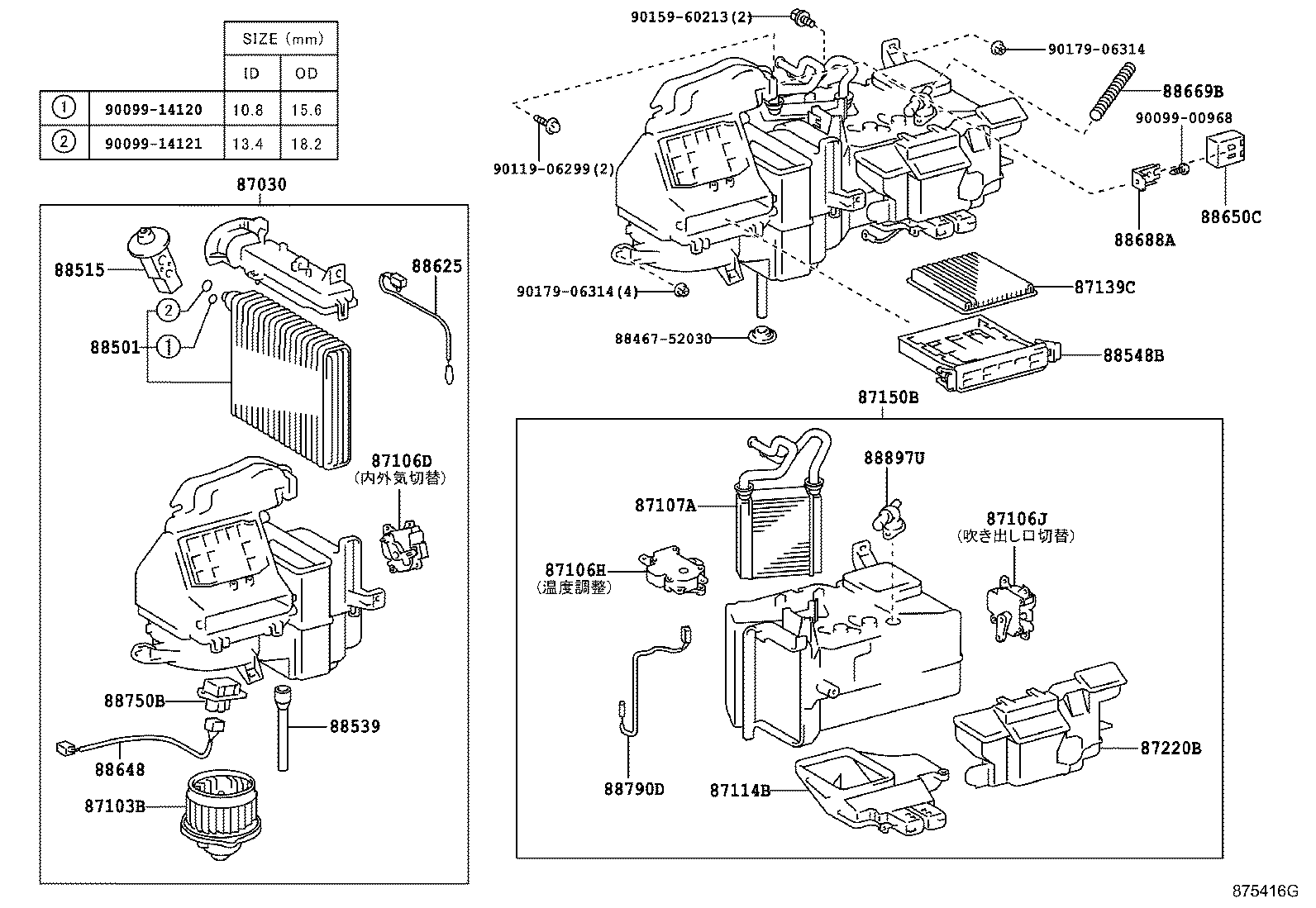

ｵ-ﾄｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52040 |
NCP6# 寒冷地仕様,品番ﾗﾍﾞﾙ=87030−52040 |
1 | ||
| 87030-52360 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52041 |
NCP6# 寒冷地仕様,品番ﾗﾍﾞﾙ=87030−52041 |
1 | ||
| 87030-52361 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87030-52360 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87030-52010 |
NCP6# |
1 | ||
| 87030-52380 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52361 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52380 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87030-52011 |
NCP6# |
1 | ||
| 87030-52381 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52361 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52381 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87103-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87103-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87103-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52070 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52010 |
NCP6# |
1 | ||
| 87103-52070 |
NCP6# 寒冷地仕様 |
1 | ||
| 87103-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52050 |
NCP6# |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87106-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87106-52030 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52030 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87106-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-52070 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87106-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87106-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52070 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52010 |
NCP6# |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87114-52010 |
NCP6# |
1 | ||
| 87114-52020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87114-52020 |
NCP6# 寒冷地仕様 |
1 | ||
| 87114-52020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-44010 |
NCP6# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-52010 |
NCP6# |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87139-12010 |
NCP6# ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87139-12010 |
NCP6# 微細塵ﾌｨﾙﾀ |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52250 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87150-52240 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87150-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87150-52240 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52250 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52240 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52010 |
NCP6# |
1 | ||
| 87150-52250 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52010 |
NCP6# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52070 |
NCP6# 品番ﾗﾍﾞﾙ=87030−52041 |
1 | ||
| 88501-52010 |
NCP6# 品番ﾗﾍﾞﾙ=87030−52040 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP6# |
1 | ||
| 88515-52040 |
NCP6# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP6# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP6# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52090 |
NCP6# |
1 | ||
| 88625-52070 |
NCP6# |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88625-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52020 |
NCP6# |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP6# 寒冷地仕様 |
1 | ||
| 88648-52020 |
NCP6# |
1 | ||
| 88648-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-52270 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88650-52251 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ |
1 | ||
| 88650-52251 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88650-52271 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 88650-52271 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88650-52250 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88669-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88669-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88669-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88669-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88669-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88669-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88669-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-52110 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88688-52110 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88688-52110 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88688-52110 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88750-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88750-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88750-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88750-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88790D - THERMISTOR ASSY | ||||
| 88790-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88790-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88790-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88790-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88790-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88790-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-12210 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88897-12210 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88897-12210 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88897-12210 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88897-12210 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88897-12210 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06299 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
(0204- )
ｵ-ﾄｴｱｺﾝ--ｶﾝﾚｲﾁｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

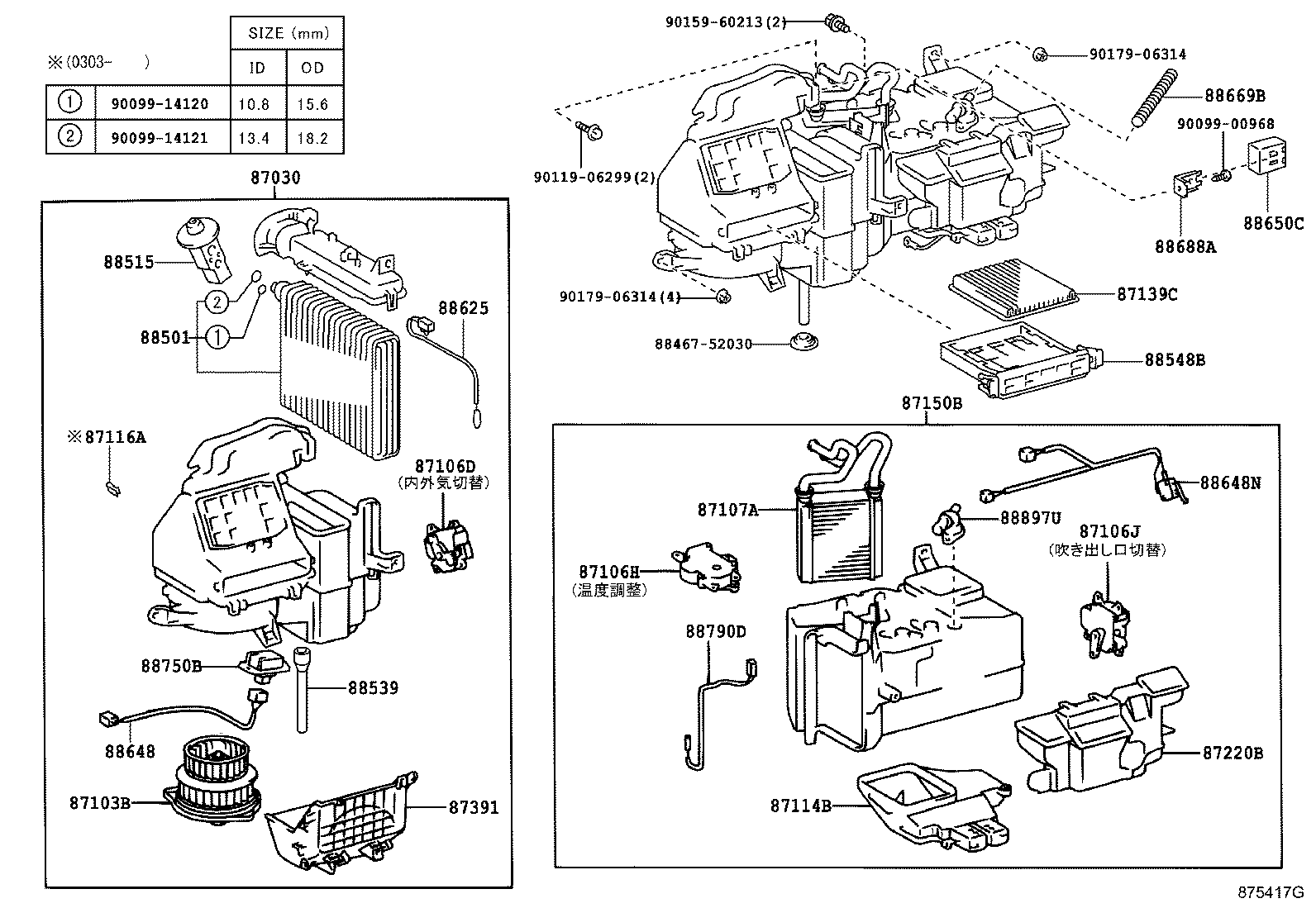

| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52040 |
NCP6# 寒冷地仕様,品番ﾗﾍﾞﾙ=87030−52040 |
1 | ||
| 87030-52360 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52041 |
NCP6# 寒冷地仕様,品番ﾗﾍﾞﾙ=87030−52041 |
1 | ||
| 87030-52361 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87030-52360 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87030-52010 |
NCP6# |
1 | ||
| 87030-52380 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52361 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52380 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87030-52011 |
NCP6# |
1 | ||
| 87030-52381 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52361 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87030-52381 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87103-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87103-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87103-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52070 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52010 |
NCP6# |
1 | ||
| 87103-52070 |
NCP6# 寒冷地仕様 |
1 | ||
| 87103-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87103-52050 |
NCP6# |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87106-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87106-52030 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52030 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87106-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-52070 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87106-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87106-52070 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87106-52070 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52010 |
NCP6# |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87114-52010 |
NCP6# |
1 | ||
| 87114-52020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87114-52020 |
NCP6# 寒冷地仕様 |
1 | ||
| 87114-52020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87116-14010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87116-14010 |
NCP6# 寒冷地仕様 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-44010 |
NCP6# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-52010 |
NCP6# |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87139-12010 |
NCP6# ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88568-12020 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88568-12020 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87139-12010 |
NCP6# 微細塵ﾌｨﾙﾀ |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52250 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 87150-52240 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87150-52030 |
NCP6# 寒冷地仕様 |
1 | ||
| 87150-52240 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52250 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52240 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87150-52010 |
NCP6# |
1 | ||
| 87150-52250 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52010 |
NCP6# |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87391-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 87391-52011 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87391-52011 |
NCP6# 寒冷地仕様 |
1 | ||
| 87391-52011 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 87391-52010 |
NCP6# 寒冷地仕様 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52070 |
NCP6# 品番ﾗﾍﾞﾙ=87030−52041 |
1 | ||
| 88501-52010 |
NCP6# 品番ﾗﾍﾞﾙ=87030−52040 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP6# |
1 | ||
| 88515-52040 |
NCP6# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP6# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP6# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52090 |
NCP6# |
1 | ||
| 88625-52070 |
NCP6# |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88625-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88625-52020 |
NCP6# |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP6# 寒冷地仕様 |
1 | ||
| 88648-52020 |
NCP6# |
1 | ||
| 88648-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52050 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-52010 |
NCP6# 寒冷地仕様 |
1 | ||
| 88648-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88648-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88648-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-52270 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88650-52251 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ |
1 | ||
| 88650-52251 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88650-52271 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 88650-52271 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88650-52250 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88669-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88669-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88669-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88669-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88669-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88669-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88669-52030 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-52110 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88688-52110 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88688-52110 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88688-52110 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88750-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88750-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88750-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88750-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88790D - THERMISTOR ASSY | ||||
| 88790-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88790-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88790-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88790-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88790-52010 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88790-52010 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-12210 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88897-12210 |
NCP6# Lｴﾃﾞｨｼｮﾝ&寒冷地仕様 |
1 | ||
| 88897-12210 |
NCP6# Lｴﾃﾞｨｼｮﾝ |
1 | ||
| 88897-12210 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88897-12210 |
NCP6# Lｴﾃﾞｨｼｮﾝ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| 88897-12210 |
NCP61,65..S Lｴｱﾛ ﾊﾟｯｹｰｼﾞ&ｴｱｺﾝ−ｵｰﾄ(ｴｺ) |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06299 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
