NCP61-HHPGK (2002)

Toyota Ist

Production Apr 2002 - May 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0204- )

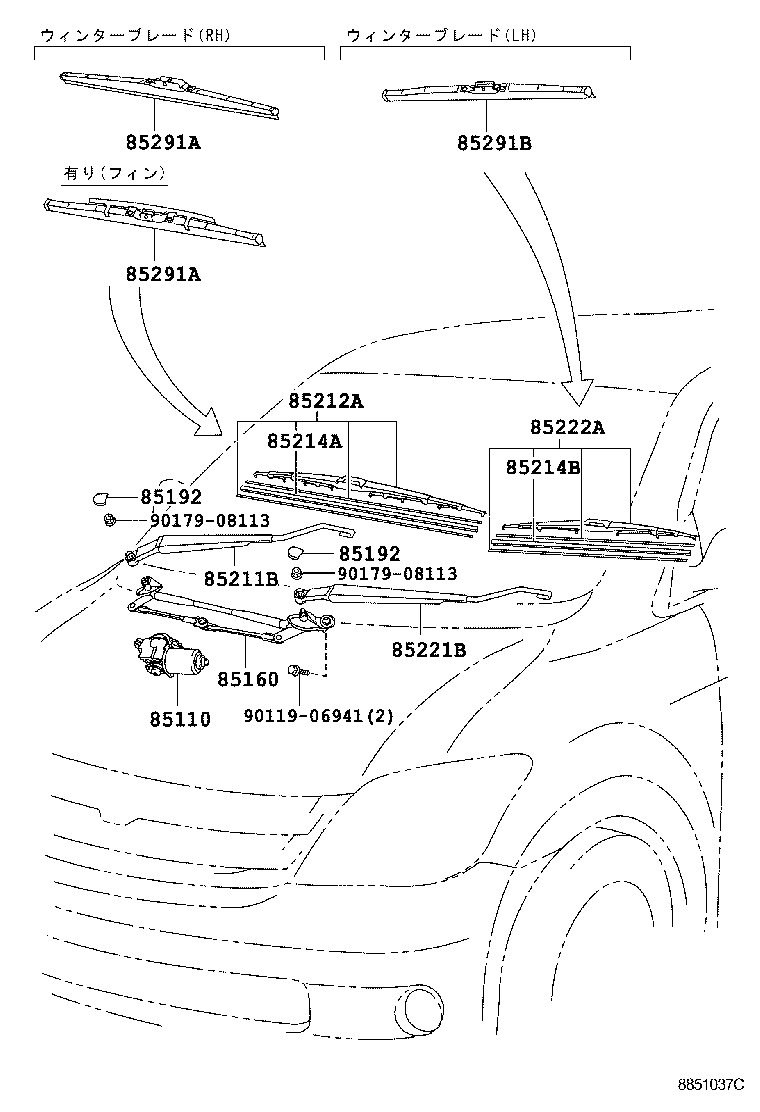

Click highlighted areas on diagram

diagram 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 9011906941 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-1A030

NCP6#

 1
85110-1A070

NCP6#

寒冷地仕様

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-52140

NCP6#

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

NCP6#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

NCP6#

 2
85211B - ARM, FRONT WIPER, RH
85211-52140

NCP6#

 1
85212A - BLADE, FR WIPER, RH
85212-52050

NCP6#

 1
85214A - RUBBER, WIPER, RH
85214-48010

NCP6#

 1
85214B - RUBBER, WIPER, LH
85214-50060

NCP6#

 1
85214-50130

NCP6#..F,S

 1
85221B - ARM, FRONT WIPER, LH
85221-52140

NCP6#

 1
85222A - BLADE, FR WIPER, LH
85222-52150

NCP6#

 1
85222-52040

NCP6#..F,S

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-22090

NCP6#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-22100

NCP6#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-22090

NCP6#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-22100

NCP6#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-44080

NCP6#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-44080

NCP6#

 1
Common parts
90119-06941
90179-08113
