NCP61-HHPGK (2002)

Toyota Ist

Production Apr 2002 - May 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0204- )NCP61,65

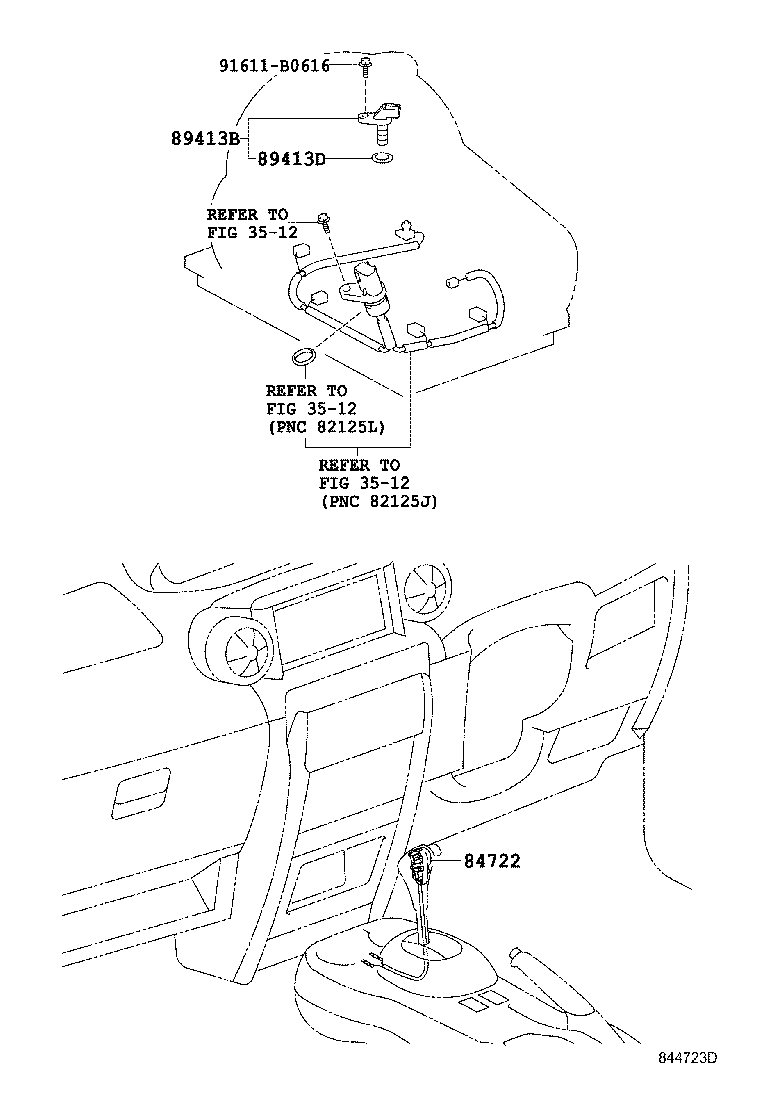

Click highlighted areas on diagram

diagram 3512 3512 3512 84722 89413B 89413D 91611B0616
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-52090B0

NCP61,65..S

DK.GRAY,TRIM1#

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

NCP6#

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NCP6#

 1
Common parts
91611-B0616
Linked diagrams
3512
