NCP61-HHPGK (2002)

Toyota Ist

Production Apr 2002 - May 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0204- )NCP60,61

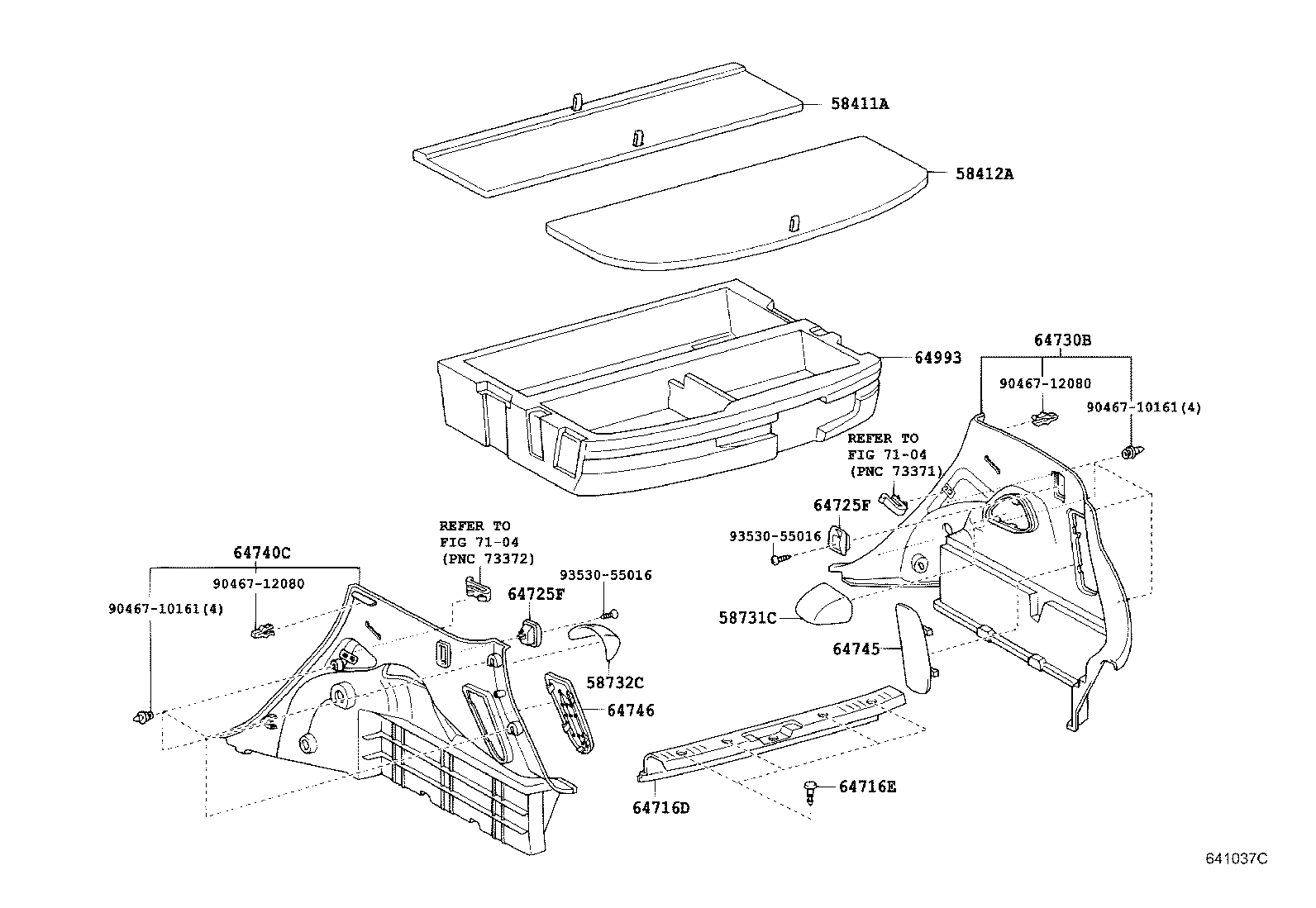

Click highlighted areas on diagram

diagram 58411A 58412A 58731C 58732C 64716D 64716E 64725F 64725F 64730B 64740C 64745 64746 64993 7104 7104 9046710161 9046710161 9046712080 9046712080 9353055016 9353055016
Part # Description Qty Price
58411A - BOARD, DECK, NO.1
58411-52021B2

NCP60,61

DK.GRAY,TRIM1#

 1
58411-52020B2

NCP60,61

DK.GRAY,TRIM1#

 1
58412A - BOARD, DECK, NO.2
58412-52020B2

NCP60,61

DK.GRAY,TRIM1#

 1
58731C - CAP, REAR ABSORBER
58731-52010B1

NCP60,61

DK.GRAY,TRIM1#

 1
58732C - CAP, REAR ABSORBER
58732-52010B1

NCP60,61

DK.GRAY,TRIM1#

 1
64716D - COVER, DECK TRIM, REAR
64716-52060B1

NCP6#

DK.GRAY,TRIM1#

 1
64716-52061B1

NCP6#

DK.GRAY,TRIM1#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-07152B4

NCP6#

DK.GRAY,TRIM1#

 4
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
63496-52020B1

NCP6#

DK.GRAY,TRIM1#

 2
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
63496-52020B1

NCP6#

DK.GRAY,TRIM1#

 2
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-52140B1

NCP60,61

DK.GRAY,TRIM1#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-52140B1

NCP60,61

DK.GRAY,TRIM1#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-52050B1

NCP6#

DK.GRAY,TRIM1#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-52050B1

NCP6#

DK.GRAY,TRIM1#

 1
64993 - BOX, DECK FLOOR, REAR
64993-52021

NCP60,61

 1
64993-52020

NCP60,61

 1
Common parts
90467-10161
90467-12080
93530-55016
Linked diagrams
7104
