NCP60-HHPNK (2002)

Toyota Ist

Production Apr 2002 - May 2005
Engine 2NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0204-0505)

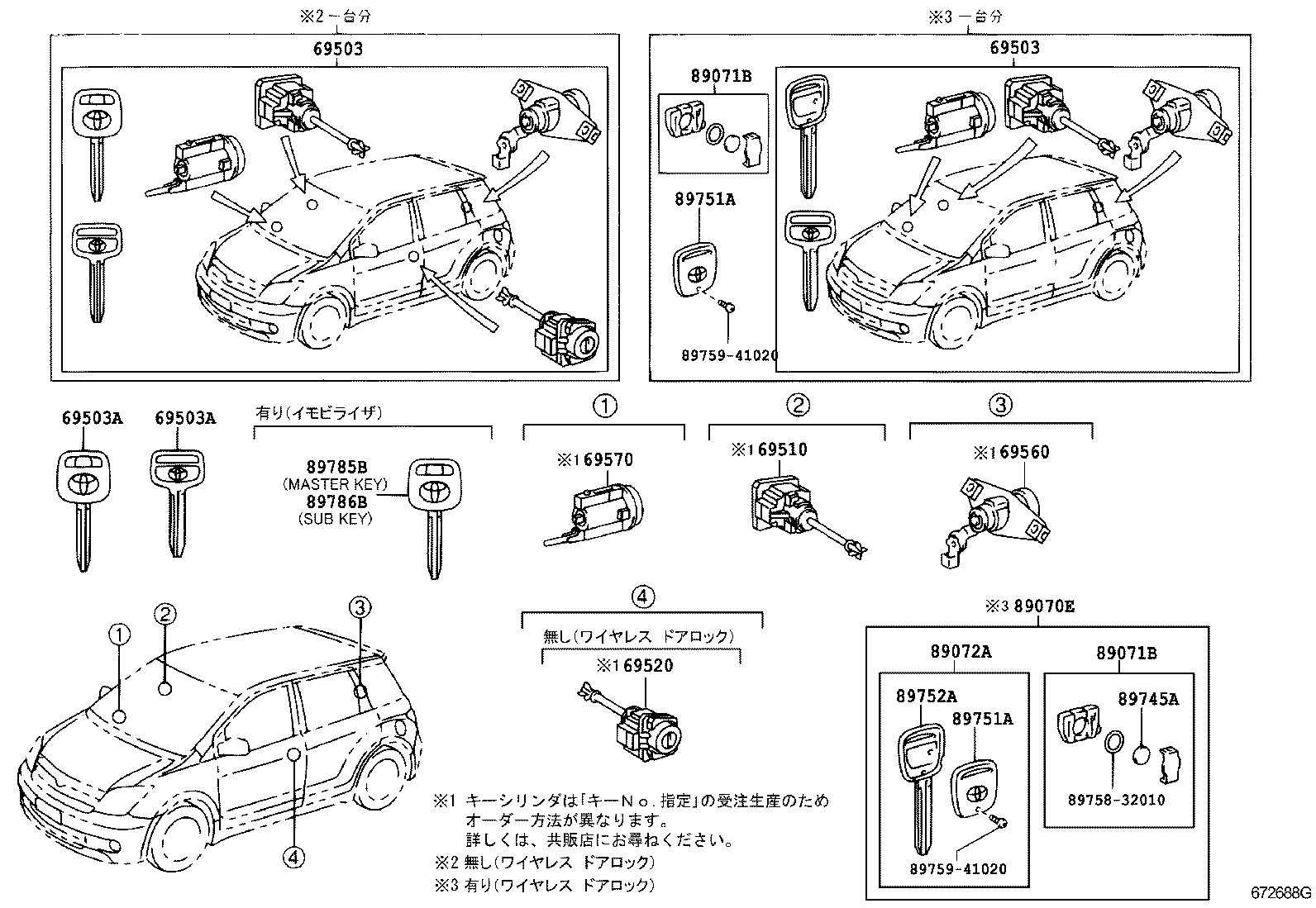

Click highlighted areas on diagram

diagram 69503 69503 69503A 69503A 69510 69520 69560 69570 89070E 89071B 89071B 89072A 89745A 89751A 89751A 89752A 8975832010 8975941020 8975941020 89785B 89786B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-52430

NCP60,65..F

Eｴﾃﾞｨｼｮﾝ

 1
69005-52420

NCP6#

 1
69005-5C010

NCP60,65..F

Lｴﾃﾞｨｼｮﾝ･HIDｾﾚｸｼｮﾝU *(V),*(W)

 1
69503 - CYLINDER SET, LOCK
69005-52430

NCP60,65..F

Eｴﾃﾞｨｼｮﾝ

 1
69005-52420

NCP6#

 1
69005-5C010

NCP60,65..F

Lｴﾃﾞｨｼｮﾝ･HIDｾﾚｸｼｮﾝU *(V),*(W)

 1
69503A - KEY, BLANK
90999-00199

NCP60,65..F

ﾏｽﾀｰｷｰ,*68付き,Eｴﾃﾞｨｼｮﾝ

 1
90999-00186

NCP60,65

ﾏｽﾀｰｷｰ

 1
69503A - KEY, BLANK
90999-00199

NCP60,65..F

ﾏｽﾀｰｷｰ,*68付き,Eｴﾃﾞｨｼｮﾝ

 1
90999-00186

NCP60,65

ﾏｽﾀｰｷｰ

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-52130

NCP6#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-52130

NCP60,65..F

Eｴﾃﾞｨｼｮﾝ

 1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-13130

NCP6#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-12190

NCP6#

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-32080

NCP60,65..F

Eｴﾃﾞｨｼｮﾝ

 1
89070-32080

NCP6#

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-32030

NCP60,65..F

Eｴﾃﾞｨｼｮﾝ

 1
89071-32030

NCP6#

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-32030

NCP60,65..F

Eｴﾃﾞｨｼｮﾝ

 1
89071-32030

NCP6#

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-47020

NCP6#

 1
89072-47020

NCP60,65..F

Eｴﾃﾞｨｼｮﾝ

 1
89745A - BATTERY, TRANSMITTER
89745-41010

NCP6#

CR1220

 1
89751A - COVER, TRANSMITTER HOUSING
89751-44010

NCP6#

 1
89751A - COVER, TRANSMITTER HOUSING
89751-44010

NCP6#

 1
89752A - CASE, TRANSMITTER HOUSING
89752-46020

NCP6#

 1
89752-46020

NCP60,65..F

Eｴﾃﾞｨｼｮﾝ

 2
Common parts
89758-32010
89759-41020
