NCP60-HHPNK (2005)

Toyota Ist

Production May 2005 - Jul 2007
Engine 2NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0505- )

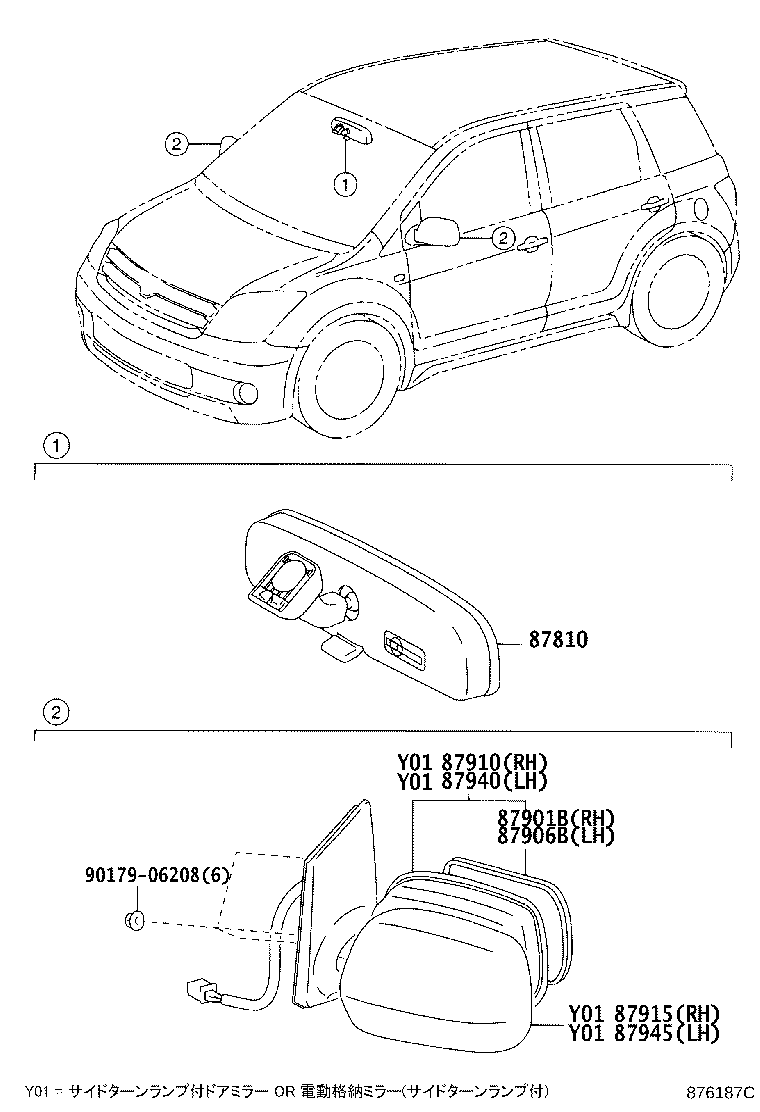

Click highlighted areas on diagram

diagram 87810 87901B 87906B 87910 87915 87940 87945 9017906208
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52040

NCP6#

 1
87810-0W030

NCP6#..F,S

 1
87810-52041

NCP6#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-52640

NCP6#

 1
87931-1A830

NCP6#

 1
87931-52110

NCP6#

Lｴﾃﾞｨｼｮﾝ

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-52090

NCP6#

Lｴﾃﾞｨｼｮﾝ

 1
87961-52620

NCP6#

 1
87961-1E830

NCP6#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-52350B0

NCP6#

SILVER ME.,199

 1
87910-52350F0

NCP6#

YELLOW PM.,595

 1
87910-52350J1

NCP6#

BLUE ME.,8P1

 1
87910-52350A1

NCP6#

WHITE PM.,057

 1
87910-52360J1

NCP6#

Lｴﾃﾞｨｼｮﾝ,BLUE ME.,8P1

 1
87910-52360A0

NCP6#

Lｴﾃﾞｨｼｮﾝ,WHITE,068

 1
87910-52350D0

NCP6#

SUPER RED 5,3P0

 1
87910-52350C0

NCP6#

BLACK MC.,209

 1
87910-52360E0

NCP6#

Lｴﾃﾞｨｼｮﾝ,BEIGE ME.,4R0

 1
87910-52360J0

NCP6#

Lｴﾃﾞｨｼｮﾝ,DK.BLUE M.M.,8P4

 1
87910-52360C0

NCP6#

Lｴﾃﾞｨｼｮﾝ,BLACK MC.,209

 1
87910-52350E0

NCP6#

BEIGE ME.,4R0

 1
87910-52360B0

NCP6#

Lｴﾃﾞｨｼｮﾝ,SILVER ME.,199

 1
87910-52350A0

NCP6#

WHITE,068

 1
87910-52360D0

NCP6#

Lｴﾃﾞｨｼｮﾝ,SUPER RED 5,3P0

 1
87910-52350J0

NCP6#

DK.BLUE M.M.,8P4

 1
87910-52360A1

NCP6#

Lｴﾃﾞｨｼｮﾝ,WHITE PM.,057

 1
87910-52360F0

NCP6#

Lｴﾃﾞｨｼｮﾝ,YELLOW PM.,595

 1
87910-52730

NCP6#..F,S

塗装不要,Lｴﾃﾞｨｼｮﾝ

 1
87910-52720

NCP6#..F,S

塗装不要

 1
87915 - COVER, OUTER MIRROR, RH
87915-52060A1

NCP6#..F,S

WHITE PM.,057

 1
87915-52060A5

NCP6#..F,S

WHITE PEARL CS.,064

 1
87915-52060D0

NCP6#

SUPER RED 5,3P0

 1
87915-52060J1

NCP6#

LT. BLUE M.M.,8S9

 1
87915-52060J0

NCP6#..F,S

DK.BLUE M.M.,8P4

 1
87915-52060A0

NCP6#

WHITE,068

 1
87915-52060C0

NCP6#

BLACK MC.,209

 1
87915-52060G2

NCP6#..F,S

LT.OLIVE ME.,6U4

 1
87915-52060B0

NCP6#

SILVER M.M.,1E7

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-52330B0

NCP6#

SILVER ME.,199

 1
87940-52340B0

NCP6#

Lｴﾃﾞｨｼｮﾝ,SILVER ME.,199

 1
87940-52330A1

NCP6#

WHITE PM.,057

 1
87940-52330A0

NCP6#

WHITE,068

 1
87940-52330D0

NCP6#

SUPER RED 5,3P0

 1
87940-52340A0

NCP6#

Lｴﾃﾞｨｼｮﾝ,WHITE,068

 1
87940-52330F0

NCP6#

YELLOW PM.,595

 1
87940-52340J1

NCP6#

Lｴﾃﾞｨｼｮﾝ,BLUE ME.,8P1

 1
87940-52330J1

NCP6#

BLUE ME.,8P1

 1
87940-52340A1

NCP6#

Lｴﾃﾞｨｼｮﾝ,WHITE PM.,057

 1
87940-52340J0

NCP6#

Lｴﾃﾞｨｼｮﾝ,DK.BLUE M.M.,8P4

 1
87940-52340C0

NCP6#

Lｴﾃﾞｨｼｮﾝ,BLACK MC.,209

 1
87940-52330E0

NCP6#

BEIGE ME.,4R0

 1
87940-52340D0

NCP6#

Lｴﾃﾞｨｼｮﾝ,SUPER RED 5,3P0

 1
87940-52340F0

NCP6#

Lｴﾃﾞｨｼｮﾝ,YELLOW PM.,595

 1
87940-52330C0

NCP6#

BLACK MC.,209

 1
87940-52340E0

NCP6#

Lｴﾃﾞｨｼｮﾝ,BEIGE ME.,4R0

 1
87940-52330J0

NCP6#

DK.BLUE M.M.,8P4

 1
87940-52710

NCP6#..F,S

塗装不要,Lｴﾃﾞｨｼｮﾝ

 1
87940-52700

NCP6#..F,S

塗装不要

 1
87945 - COVER, OUTER MIRROR, LH
87945-52060C0

NCP6#

BLACK MC.,209

 1
87945-52060D0

NCP6#

SUPER RED 5,3P0

 1
87945-52060G2

NCP6#..F,S

LT.OLIVE ME.,6U4

 1
87945-52060A0

NCP6#

WHITE,068

 1
87945-52060J0

NCP6#..F,S

DK.BLUE M.M.,8P4

 1
87945-52060J1

NCP6#

LT. BLUE M.M.,8S9

 1
87945-52060A5

NCP6#..F,S

WHITE PEARL CS.,064

 1
87945-52060A1

NCP6#..F,S

WHITE PM.,057

 1
87945-52060B0

NCP6#

SILVER M.M.,1E7

 1
Common parts
90179-06208
