NCP115-AHXEK (2007)
Toyota Ist
Production
Jul 2007
-
Apr 2016
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0707- )NCP115

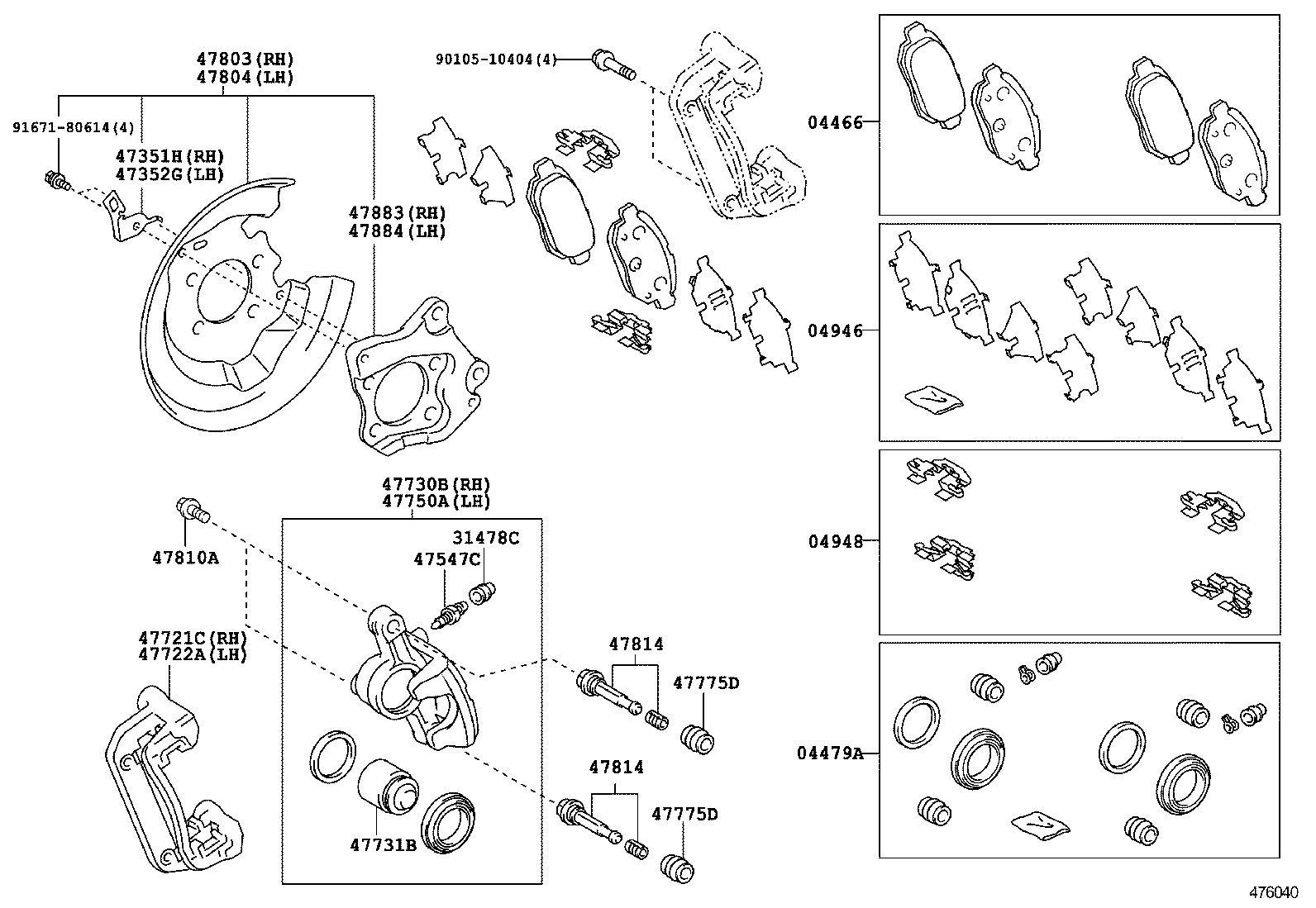

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-52120 |
NCP115..CBU ﾏｰｸ NBK D6234 |
1 | ||
| 04466-52121 |
NCP115..CBU ﾏｰｸ NBK D6234 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-12230 |
NCP115..CBU |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-52080 |
NCP115..CBU |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-12060 |
NCP115..CBU |
1 | ||
| 04948-52040 |
NCP115..CBU |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-52010 |
NCP115..CBU |
2 | ||
| 47351H - BRACKET, FLEXIBLE HOSE, RH | ||||
| 47351-52120 |
NCP115..CBU |
1 | ||
| 47352G - BRACKET, FLEXIBLE HOSE, LH | ||||
| 47352-52110 |
NCP115..CBU |
1 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47847-52050 |
NCP115..CBU |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-12150 |
NCP115..CBU |
1 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-12150 |
NCP115..CBU |
1 | ||
| 47821-12150 |
NCP115..CBU |
2 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47830-52100 |
NCP115..CBU |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47831-52050 |
NCP115..CBU |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-52100 |
NCP115..CBU |
2 | ||
| 47850-52100 |
NCP115..CBU |
1 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
NCP115..CBU |
4 | ||
| 47875-12150 |
NCP115..CBU |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
NCP115..CBU |
4 | ||
| 47875-12150 |
NCP115..CBU |
4 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47803-52020 |
NCP115..CBU |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47804-52020 |
NCP115..CBU |
1 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90015-AA102 |
NCP115..CBU |
4 | ||
| 90015-AA102 |
NCP115..CBU |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47835-12150 |
NCP115..CBU |
4 | ||
| 47835-12150 |
NCP115..CBU |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47835-12150 |
NCP115..CBU |
4 | ||
| 47835-12150 |
NCP115..CBU |
4 | ||
| 47883 - BRACKET, CALIPER SUPPORT, REAR RH | ||||
| 47883-52020 |
NCP115..CBU |
1 | ||
| 47884 - BRACKET, CALIPER SUPPORT, REAR LH | ||||
| 47884-52020 |
NCP115..CBU |
1 | ||
| Common parts | ||||
| 90105-10404 | ||||
| 91671-80614 | ||||
