NCP110-AHXEK (2007)

Toyota Ist

Production Jul 2007 - Apr 2016
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0707-1008)G

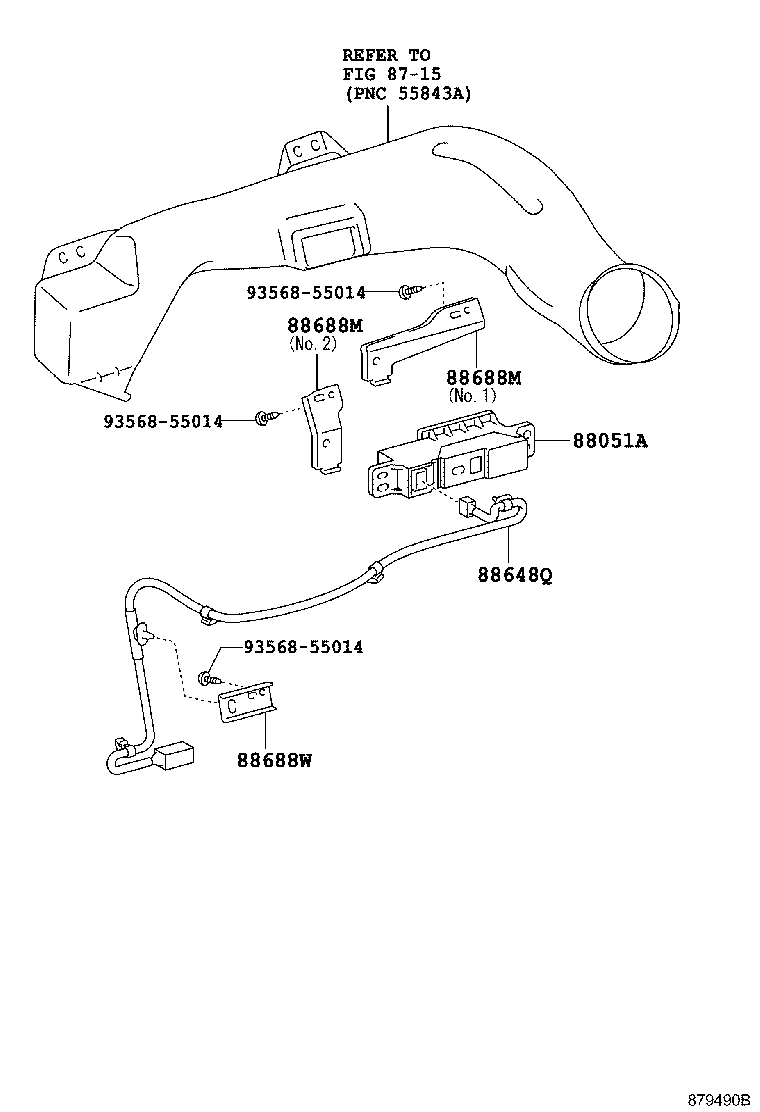

Click highlighted areas on diagram

diagram 8715 88051A 88648Q 88688M 88688M 88688W 9356855014 9356855014 9356855014
Part # Description Qty Price
88051A - GENERATOR SUB-ASSY,ION
88051-12010

NCP11#,ZSP110..G..CBU

 1
88648Q - WIRE, AIR CONDITIONER NO.1
88648-52250

NCP11#,ZSP110..G..CBU

 1
88688M - BRACKET, AIR PURIFIER, NO.2
88688-52330

NCP11#,ZSP110..G..CBU

NO.2

 1
88688-52320

NCP11#,ZSP110..G..CBU

NO.1

 1
88688M - BRACKET, AIR PURIFIER, NO.2
88688-52330

NCP11#,ZSP110..G..CBU

NO.2

 1
88688-52320

NCP11#,ZSP110..G..CBU

NO.1

 1
88688W - BRACKET, AIR PURIFIER, NO.1
88688-52310

NCP11#,ZSP110..G..CBU

 1
Common parts
93568-55014
Linked diagrams
8715
