NCP110-AHXEK (2007)
Toyota Ist

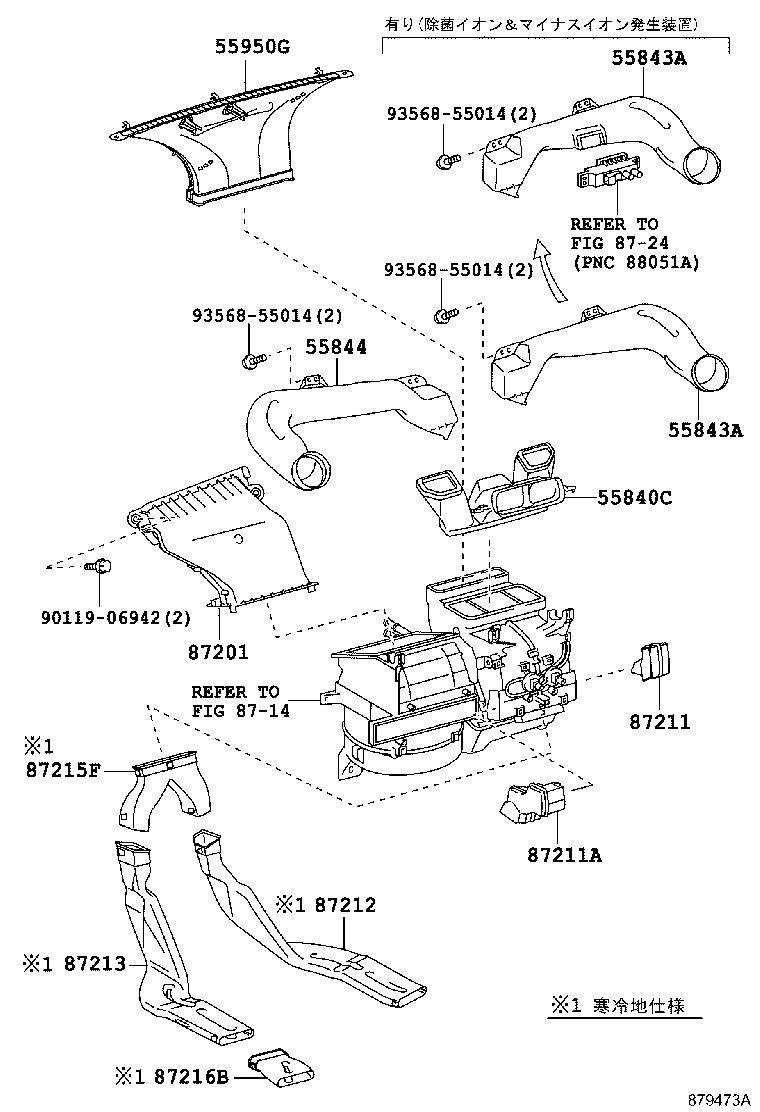

ILLUST NO. 2 OF 3(0707- )
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55840C - DUCT ASSY, HEATER TO REGISTER, NO.6 | ||||
| 55840-52080 |
NCP11#,ZSP110..CBU |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-52320 |
NCP11#..X..CBU |
1 | ||
| 55843-52330 |
NCP11#,ZSP110..G..CBU |
1 | ||
| 55843-52320 |
NCP11#..G..CBU |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-52320 |
NCP11#..X..CBU |
1 | ||
| 55843-52330 |
NCP11#,ZSP110..G..CBU |
1 | ||
| 55843-52320 |
NCP11#..G..CBU |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-52220 |
NCP11#,ZSP110..CBU |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52150 |
NCP11#,ZSP110..CBU |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-52070 |
NCP11#,ZSP110..CBU |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52010 |
NCP11#,ZSP110..CBU |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-52100 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-52070 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-52050 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-52040 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8724 | ||||

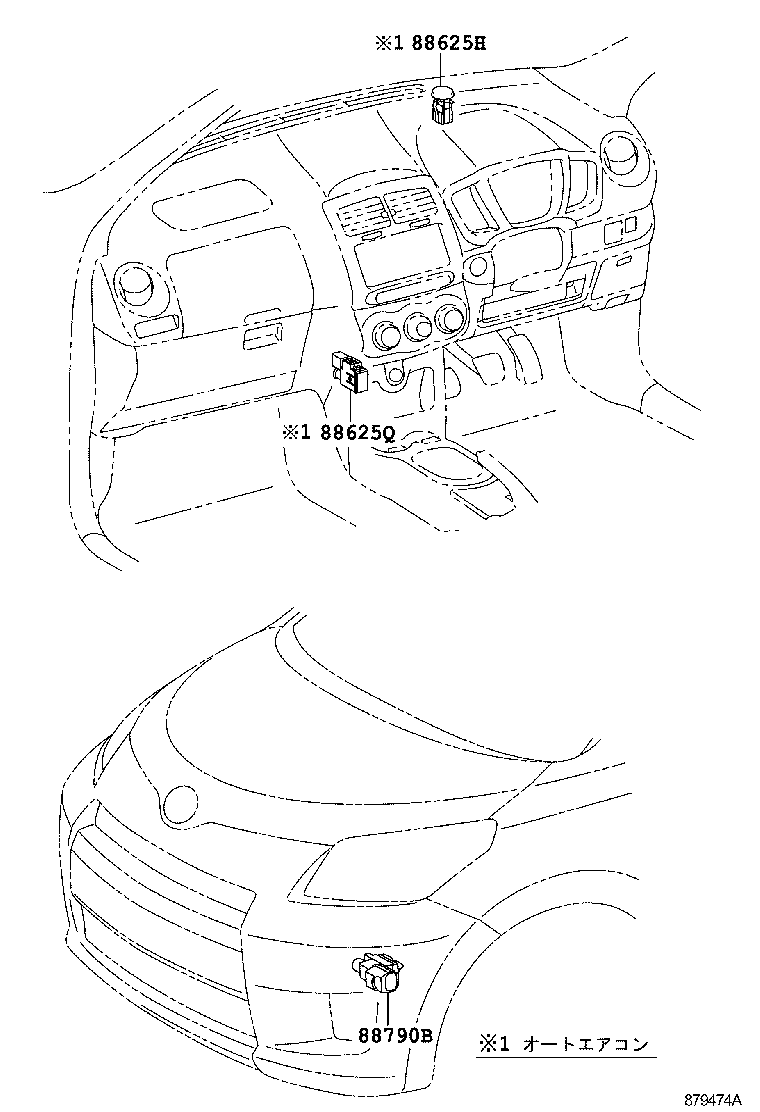

ILLUST NO. 3 OF 3(0707- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
NCP11#,ZSP110..CBU |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NCP11#..CBU |
1 | ||
| 88625-48070 |
NCP11#,ZSP110..CBU |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NCP11#,ZSP110..CBU |
1 | ||

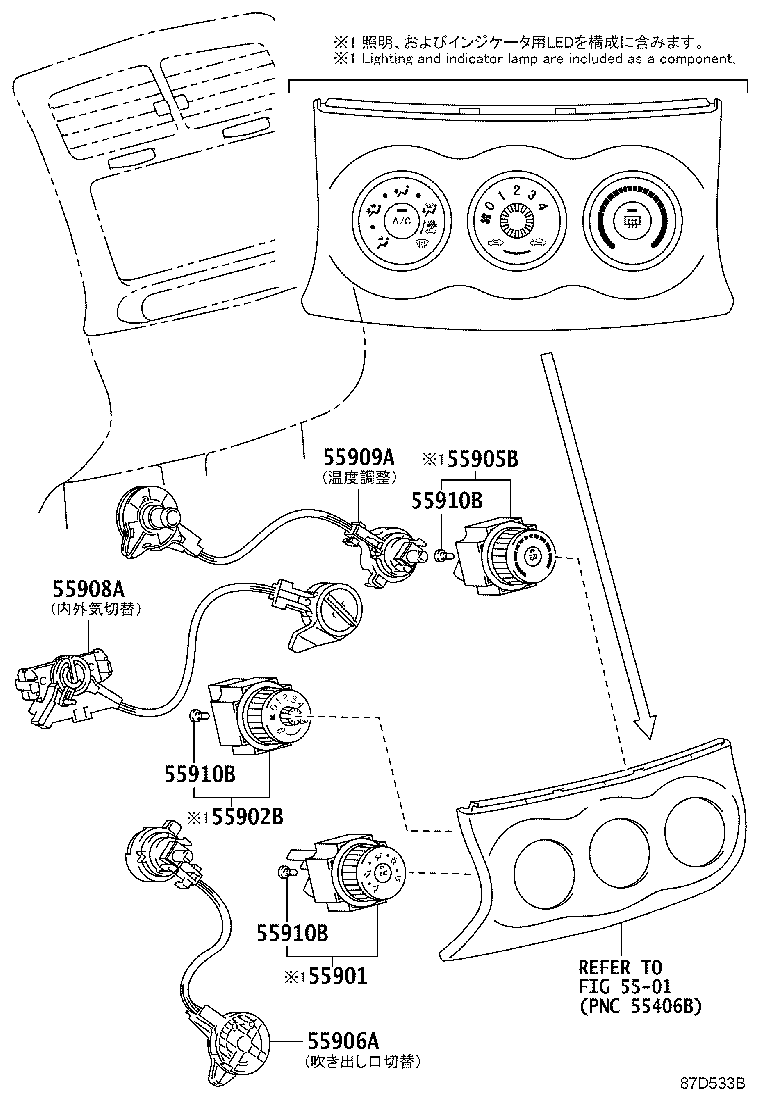

ILLUST NO. 1 OF 3(0707- )NCP11#
ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ-ﾏﾆｭｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-52230 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-52080 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55903-52231 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55903-52241 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55903-52240 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55903-52230 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52132 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52130 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52120 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01142 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 90010-01142 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01142 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 90010-01142 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01142 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 90010-01142 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||

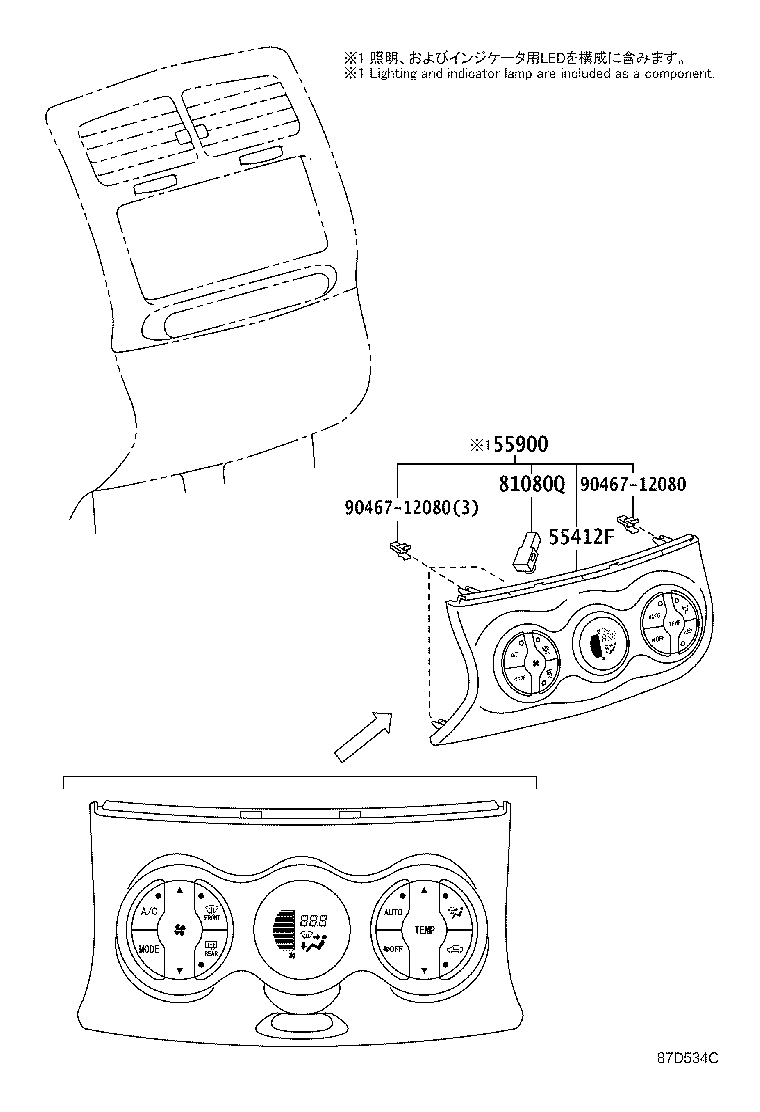

ILLUST NO. 1 OF 3(0707- )
ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ-ｵｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55410-52090C0 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ),BLACK,TRIM1# |
1 | ||
| 55410-52200B0 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ),GRAY,TRIM1# |
1 | ||
| 55410-52150B0 |
NCP11#..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),SILVER,TRIM10 |
1 | ||
| 55410-52090C0 |
NCP11#,ZSP110..CBU BLACK,TRIM1# |
1 | ||
| 55410-52200B0 |
NCP11#..CBU GRAY,TRIM1# |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-52670B0 |
NCP11#..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),SILVER,TRIM10 |
1 | ||
| 55900-52590C0 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ),BLACK,TRIM1# |
1 | ||
| 55900-52530C0 |
NCP11#,ZSP110..G..CBU BLACK,TRIM1# |
1 | ||
| 55900-52760B1 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ),GRAY,TRIM1# |
1 | ||
| 55900-52760B1 |
NCP11#..CBU GRAY,TRIM1# |
1 | ||
| 55900-52590C0 |
NCP11#..X..CBU BLACK,TRIM1# |
1 | ||
| 81080Q - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-30040 |
NCP11#,ZSP110..CBU |
1 | ||
| 81080-30040 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 81080-48010 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 81080-48010 |
NCP11#..CBU |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||
