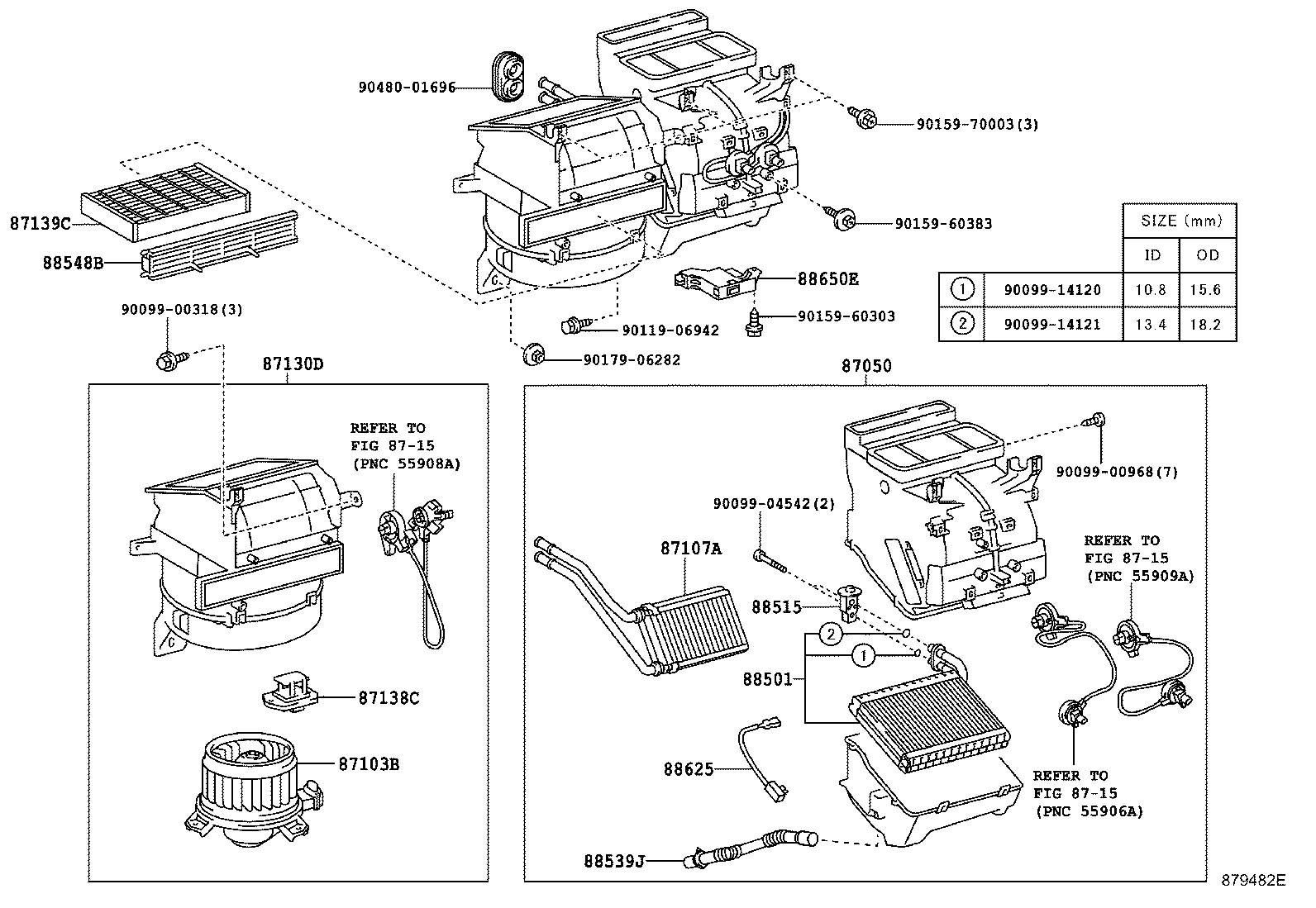

NCP110-AHXEK (2007)
Toyota Ist
(0707- )X
ﾏﾆｭｱﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 87050-52141 |
NCP11#..CBU |
1 | ||
| 87050-52041 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87050-52033 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52151 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52161 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 87050-52131 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52012 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52131 |
NCP11#,ZSP110..CBU |
1 | ||
| 87103-52132 |
NCP11#..CBU |
1 | ||
| 87103-52121 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52120 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52120 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52130 |
NCP11#,ZSP110..CBU |
1 | ||
| 87103-52121 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52060 |
NCP11#,ZSP110..CBU |
1 | ||
| 87107-52061 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52050 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52042 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130-52060 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87130-52061 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87130-52061 |
NCP11#..CBU |
1 | ||
| 87130-52031 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52040 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130-52032 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52050 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87138-52030 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
NCP11#,ZSP110..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-50060 |
NCP11#,ZSP110..CBU 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-52040 |
NCP11#..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-50100 |
NCP11#..CBU 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52091 |
NCP11#,ZSP110..CBU |
1 | ||
| 88501-52102 |
NCP11#..CBU |
1 | ||
| 88501-52090 |
NCP11#,ZSP110..CBU |
1 | ||
| 88501-52103 |
NCP11#..CBU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
NCP11#..CBU |
1 | ||
| 88515-26070 |
NCP11#,ZSP110..CBU |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52030 |
NCP11#..CBU |
1 | ||
| 88539-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP11#,ZSP110..CBU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NCP11#,ZSP110..CBU |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52361 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52780 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52291 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52640 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52520 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52470 |
NCP110..CBU |
1 | ||
| 88650-52770 |
NCP110..CBU |
1 | ||
| 88650-52510 |
NCP110..CBU |
1 | ||
| 88650-52480 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52630 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||

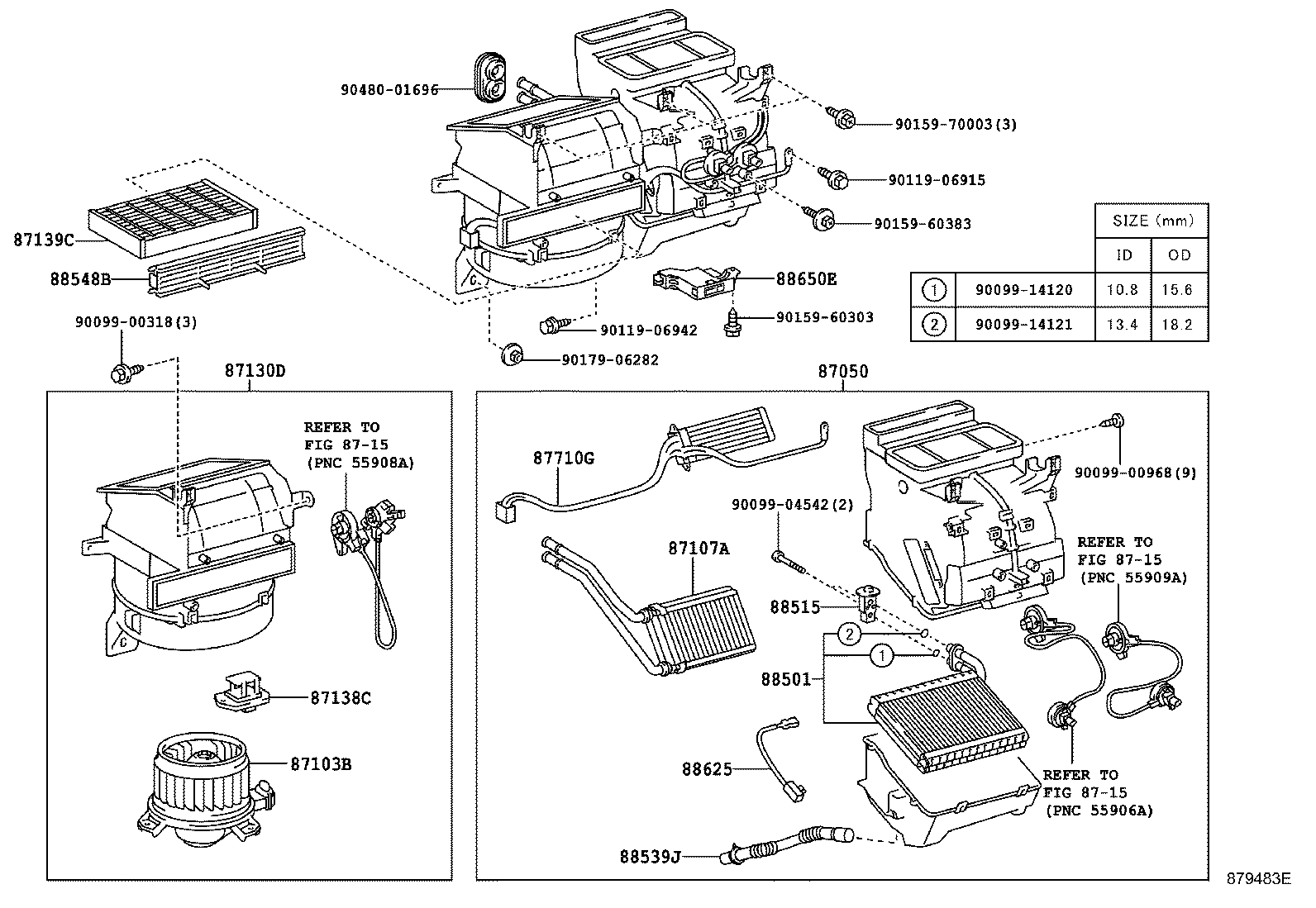

(0707- )X
ﾏﾆｭｱﾙｴｱｺﾝ(ｶﾝﾚｲﾁｼﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 87050-52141 |
NCP11#..CBU |
1 | ||
| 87050-52041 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87050-52033 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52151 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52161 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 87050-52131 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52012 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52131 |
NCP11#,ZSP110..CBU |
1 | ||
| 87103-52132 |
NCP11#..CBU |
1 | ||
| 87103-52121 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52120 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52120 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52130 |
NCP11#,ZSP110..CBU |
1 | ||
| 87103-52121 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52060 |
NCP11#,ZSP110..CBU |
1 | ||
| 87107-52061 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52050 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52042 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130-52060 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87130-52061 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87130-52061 |
NCP11#..CBU |
1 | ||
| 87130-52031 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52040 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130-52032 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52050 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87138-52030 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
NCP11#,ZSP110..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-50060 |
NCP11#,ZSP110..CBU 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-52040 |
NCP11#..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-50100 |
NCP11#..CBU 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-52060 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87710-52060 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52091 |
NCP11#,ZSP110..CBU |
1 | ||
| 88501-52102 |
NCP11#..CBU |
1 | ||
| 88501-52090 |
NCP11#,ZSP110..CBU |
1 | ||
| 88501-52103 |
NCP11#..CBU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
NCP11#..CBU |
1 | ||
| 88515-26070 |
NCP11#,ZSP110..CBU |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52030 |
NCP11#..CBU |
1 | ||
| 88539-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP11#,ZSP110..CBU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NCP11#,ZSP110..CBU |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52361 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52780 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52291 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52640 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52520 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52470 |
NCP110..CBU |
1 | ||
| 88650-52770 |
NCP110..CBU |
1 | ||
| 88650-52510 |
NCP110..CBU |
1 | ||
| 88650-52480 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52630 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06915 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||

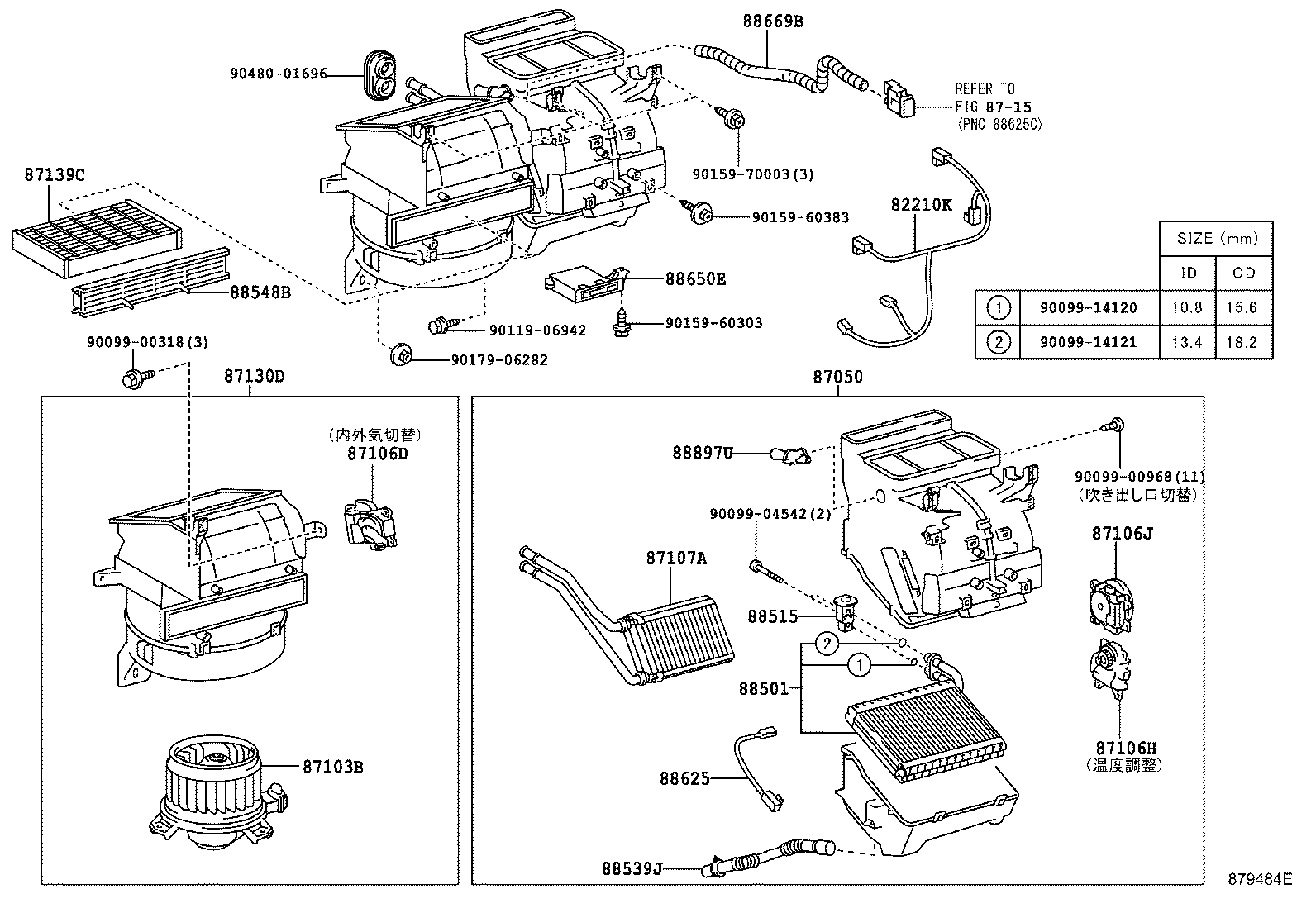

(0707- )
ｵｰﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-52010 |
NCP11#,ZSP110..CBU |
1 | ||
| 82212-52010 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82212-52030 |
NCP11#..CBU |
1 | ||
| 82212-52031 |
NCP11#..CBU |
1 | ||
| 82212-52030 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82212-52031 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 87050-52141 |
NCP11#..CBU |
1 | ||
| 87050-52041 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87050-52033 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52151 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52161 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 87050-52131 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52012 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52131 |
NCP11#,ZSP110..CBU |
1 | ||
| 87103-52132 |
NCP11#..CBU |
1 | ||
| 87103-52121 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52120 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52120 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52130 |
NCP11#,ZSP110..CBU |
1 | ||
| 87103-52121 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52100 |
NCP11#,ZSP110..CBU |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-52080 |
NCP11#,ZSP110..CBU |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-52090 |
NCP11#,ZSP110..CBU |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52060 |
NCP11#,ZSP110..CBU |
1 | ||
| 87107-52061 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52050 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52042 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130-52060 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87130-52061 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87130-52061 |
NCP11#..CBU |
1 | ||
| 87130-52031 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52040 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130-52032 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52050 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
NCP11#,ZSP110..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-50060 |
NCP11#,ZSP110..CBU 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-52040 |
NCP11#..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-50100 |
NCP11#..CBU 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52091 |
NCP11#,ZSP110..CBU |
1 | ||
| 88501-52102 |
NCP11#..CBU |
1 | ||
| 88501-52090 |
NCP11#,ZSP110..CBU |
1 | ||
| 88501-52103 |
NCP11#..CBU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
NCP11#..CBU |
1 | ||
| 88515-26070 |
NCP11#,ZSP110..CBU |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52030 |
NCP11#..CBU |
1 | ||
| 88539-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP11#,ZSP110..CBU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NCP11#,ZSP110..CBU |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52361 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52780 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52291 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52640 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52520 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52470 |
NCP110..CBU |
1 | ||
| 88650-52770 |
NCP110..CBU |
1 | ||
| 88650-52510 |
NCP110..CBU |
1 | ||
| 88650-52480 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52630 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-52050 |
NCP11#,ZSP110..CBU |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
NCP11#,ZSP110..CBU |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(0707- )
ｵｰﾄｴｱｺﾝ(ｶﾝﾚｲﾁｼﾖｳ)

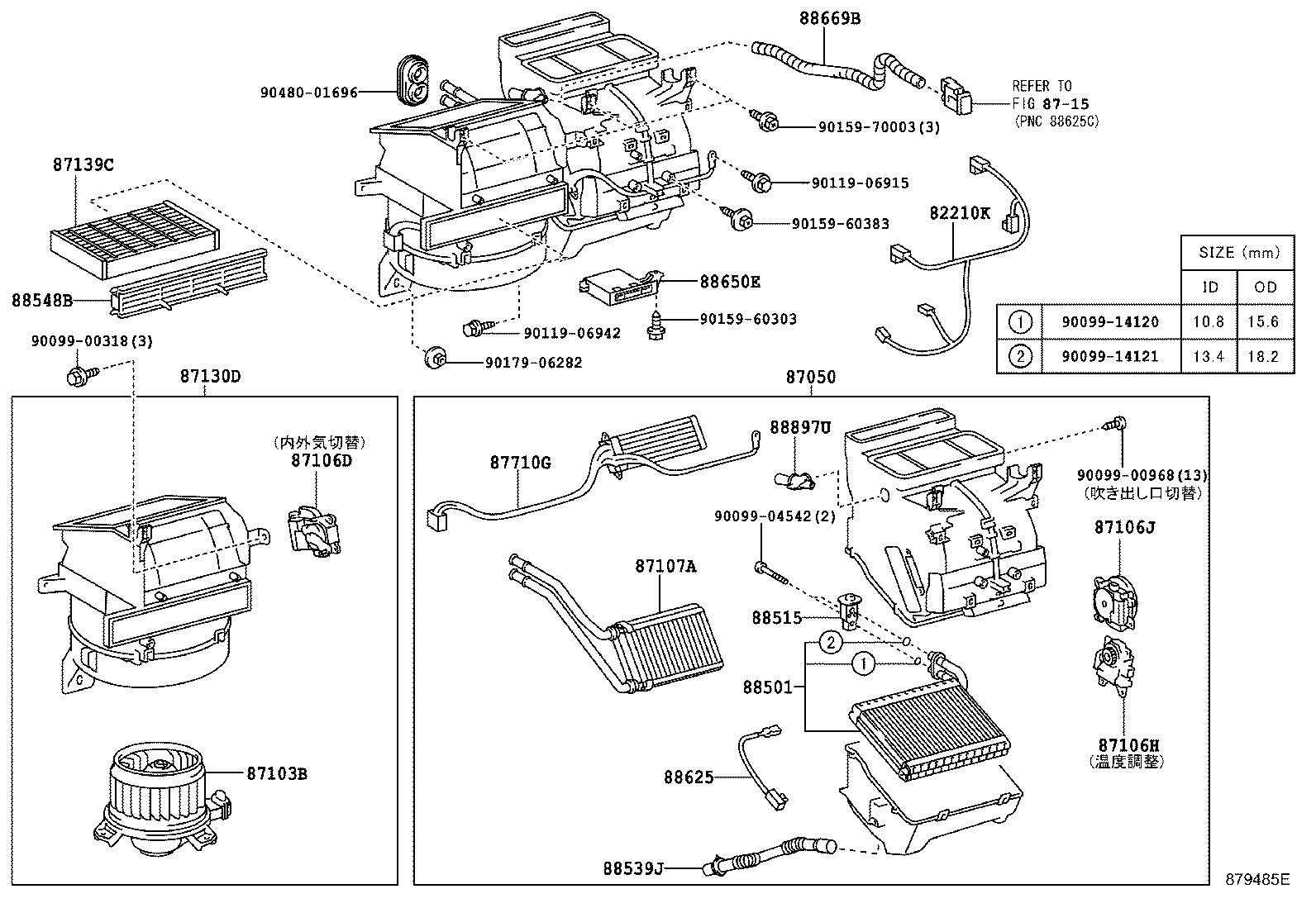

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-52031 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82212-52010 |
NCP11#,ZSP110..CBU |
1 | ||
| 82212-52010 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82212-52030 |
NCP11#..CBU |
1 | ||
| 82212-52031 |
NCP11#..CBU |
1 | ||
| 82212-52030 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 87050-52141 |
NCP11#..CBU |
1 | ||
| 87050-52041 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87050-52033 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52151 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52161 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 87050-52131 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87050-52012 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52131 |
NCP11#,ZSP110..CBU |
1 | ||
| 87103-52132 |
NCP11#..CBU |
1 | ||
| 87103-52121 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52120 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52120 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87103-52130 |
NCP11#,ZSP110..CBU |
1 | ||
| 87103-52121 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52100 |
NCP11#,ZSP110..CBU |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-52080 |
NCP11#,ZSP110..CBU |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-52090 |
NCP11#,ZSP110..CBU |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52060 |
NCP11#,ZSP110..CBU |
1 | ||
| 87107-52061 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52050 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52042 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130-52060 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87130-52061 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87130-52061 |
NCP11#..CBU |
1 | ||
| 87130-52031 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52040 |
NCP11#,ZSP110..CBU |
1 | ||
| 87130-52032 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87130-52050 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
NCP11#,ZSP110..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-50060 |
NCP11#,ZSP110..CBU 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-52040 |
NCP11#..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-50100 |
NCP11#..CBU 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-52060 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 87710-52060 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52091 |
NCP11#,ZSP110..CBU |
1 | ||
| 88501-52102 |
NCP11#..CBU |
1 | ||
| 88501-52090 |
NCP11#,ZSP110..CBU |
1 | ||
| 88501-52103 |
NCP11#..CBU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
NCP11#..CBU |
1 | ||
| 88515-26070 |
NCP11#,ZSP110..CBU |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52030 |
NCP11#..CBU |
1 | ||
| 88539-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP11#,ZSP110..CBU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NCP11#,ZSP110..CBU |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52361 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52780 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52291 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52640 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88650-52520 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52470 |
NCP110..CBU |
1 | ||
| 88650-52770 |
NCP110..CBU |
1 | ||
| 88650-52510 |
NCP110..CBU |
1 | ||
| 88650-52480 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 88650-52630 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-52050 |
NCP11#,ZSP110..CBU |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
NCP11#,ZSP110..CBU |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06915 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
