NCP110-AHXEK (2007)
Toyota Ist
Production
Jul 2007
-
Apr 2016
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0707-1008)ZSP110 ; (0707- )NCP11#

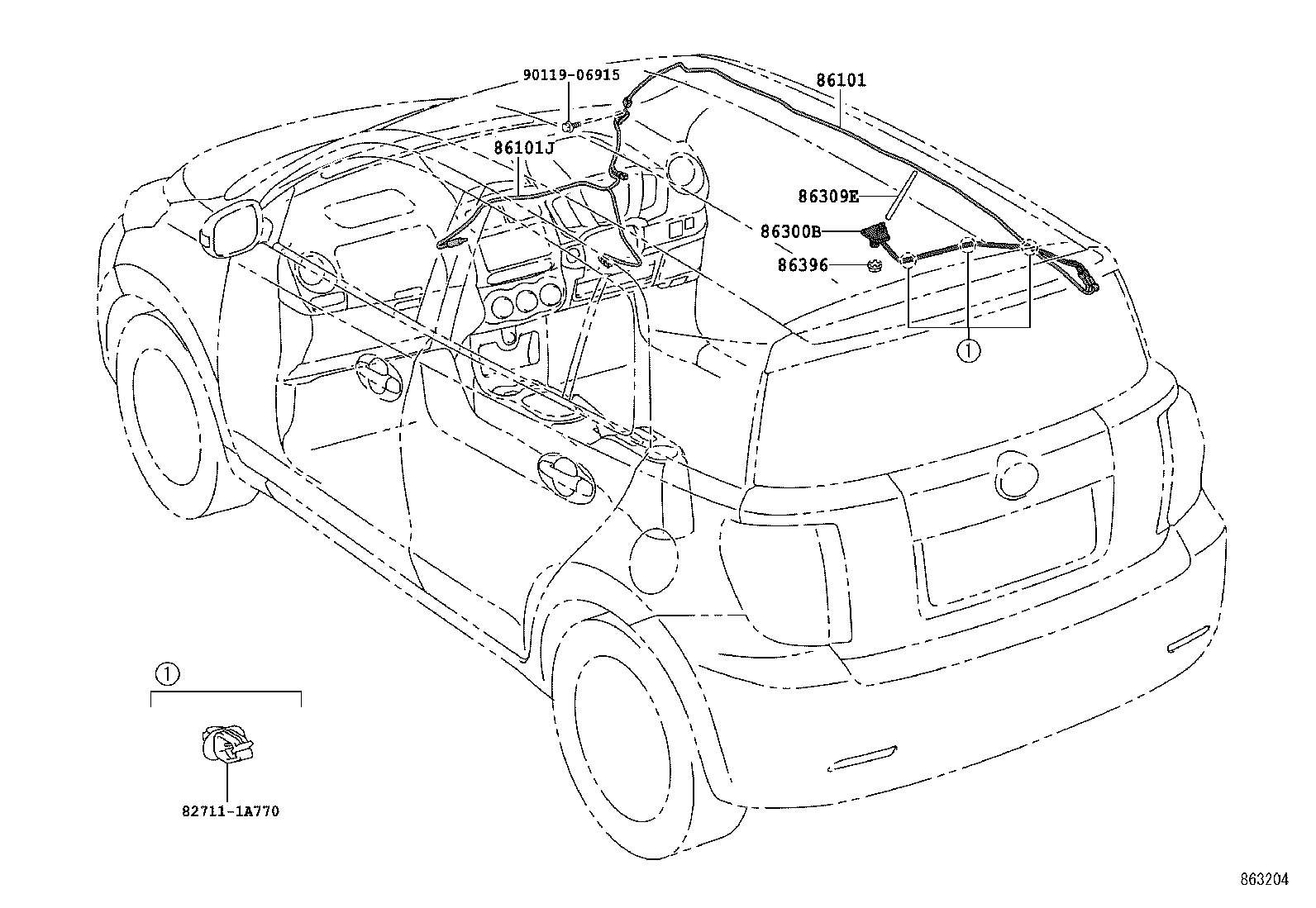

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-52620 |
NCP11#,ZSP110..CBU |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-52660 |
NCP11#,ZSP110..CBU ETC−有り |
1 | ||
| 86101-52650 |
NCP11#,ZSP110..CBU |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-52380 |
NCP11#,ZSP110..CBU |
1 | ||
| 86300-52381 |
NCP11#..CBU |
1 | ||
| 86309E - POLE SUB-ASSY, ROOF ANTENNA | ||||
| 86309-20310 |
NCP11#,ZSP110..CBU |
1 | ||
| 86309-42070 |
NCP11#..CBU |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-20040 |
NCP11#,ZSP110..CBU |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 90119-06915 | ||||
