NCP110-AHXEK (2007)

Toyota Ist

Production Jul 2007 - Apr 2016
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0707-1008)ZSP110 ; (0707- )

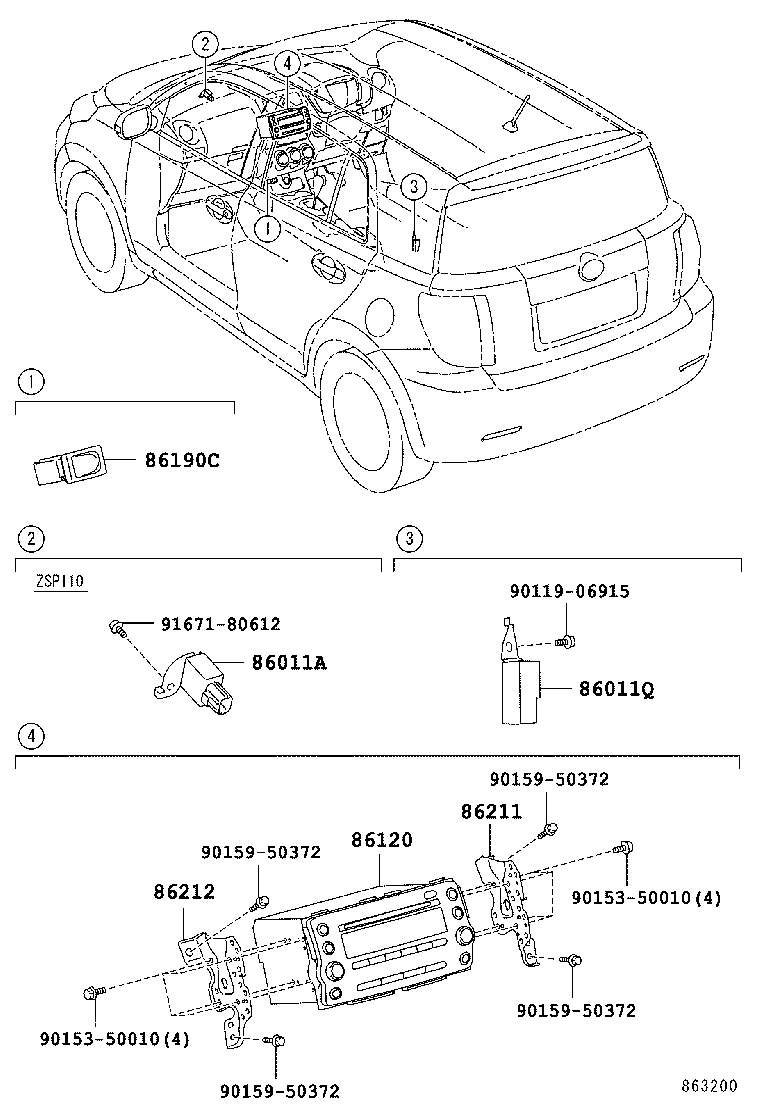

Click highlighted areas on diagram

diagram 86011A 86011Q 86120 86190C 86211 86212 9011906915 9015350010 9015350010 9015950372 9015950372 9015950372 9015950372 9167180612
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04148

NCP11#,ZSP110..CBU

 1
86120 - RECEIVER ASSY, RADIO
86120-52820

NCP11#..X..CBU

FUJITSU TEN,ID=10822,ｵｰﾃﾞｨｵ(国内)−CD/ﾗｼﾞｵ/6ｽﾋﾟ[ｶ/異型/2DIN

 1
86120-52820

NCP11#..G..CBU

FUJITSU TEN,ID=10822,ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰJ 2DIN ｶﾊﾞｰ付き

 1
86120-52820

NCP11#,ZSP110..G..CBU

FUJITSU TEN,ID=10822,ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用Uｽﾋﾟｰｶ(G−BOOK)

 1
86120-52820

NCP11#,ZSP110..G..CBU

FUJITSU TEN,ID=10822

 1
86120-52C60

NCP11#..X..CBU

FUJITSU TEN,ID=10833,ｵｰﾃﾞｨｵ(国内)−CD/ﾗｼﾞｵ/6ｽﾋﾟ[ｶ/異型/2DIN

 1
86120-52C60

NCP11#..G..CBU

FUJITSU TEN,ID=10833,ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用Uｽﾋﾟｰｶ(G−BOOK)

 1
86120-52C60

NCP11#..G..CBU

FUJITSU TEN,ID=10833

 1
86120-52C60

NCP11#..G..CBU

FUJITSU TEN,ID=10833,ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用Uｽﾋﾟｰｶ(DVDﾅﾋﾞ)

 1
86120-52820

NCP11#,ZSP110..G..CBU

FUJITSU TEN,ID=10822,ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用Uｽﾋﾟｰｶ(DVDﾅﾋﾞ)

 1
86120-52C60

NCP11#..G..CBU

FUJITSU TEN,ID=10833,ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰJ 2DIN ｶﾊﾞｰ付き

 1
86120-52820

NCP11#..G..CBU

FUJITSU TEN,ID=10822,ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰJ 汎用 2DIN

 1
86120-52C60

NCP11#..G..CBU

FUJITSU TEN,ID=10833,ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰJ 汎用 2DIN

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-48010

NCP11#..X..CBU

ｵｰﾃﾞｨｵ(国内)−CD/ﾗｼﾞｵ/6ｽﾋﾟｰｶ/異型/2DIN

 1
86190-48010

NCP11#,ZSP110..G..CBU

 1
86190-48010

NCP11#,ZSP110..G..CBU

ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ 汎用 2DIN

 1
86190-48010

NCP11#,ZSP110..G..CBU

ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)

 1
86190-48010

NCP11#,ZSP110..G..CBU

ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(G−BOOK)

 1
86211 - BRACKET, RADIO, NO.1
86211-52240

NCP11#,ZSP110..CBU

 1
86212 - BRACKET, RADIO, NO.2
86212-52250

NCP11#,ZSP110..CBU

 1
Common parts
90119-06915
90153-50010
90159-50372
91671-80612
